About the MultiHostProcessMonitorAgent

The MultiHostProcessMonitorAgent monitors both Windows® and Linux® systems and collects the following information:

•
Processes running or waiting to run on a monitored host

There are views, rules, and data associated with this agent. For more information, see Reference

For more details, see these topics:

•
Supported platforms
•
Agent properties

Supported platforms

For a list of platforms supported for the MultiHostProcessMonitorAgent, see “System Requirements” in the Foglight for Infrastructure Release Notes.


*
NOTE: The infrastructure UNIX® agents do not execute shell commands on the monitored system. Therefore, there are no special requirements or restrictions regarding the shells on which they are installed.

Agent properties

When an agent connects to the Foglight Management Server, it is provided with a set of properties that it uses to configure its correct running state. For more information about working with agent properties, see Creating agent instances.

The MultiHostProcessMonitorAgent is shipped with default properties that can be modified to suit your system requirements. The properties specific to the MultiHostProcessMonitorAgent are illustrated in the following screenshot.

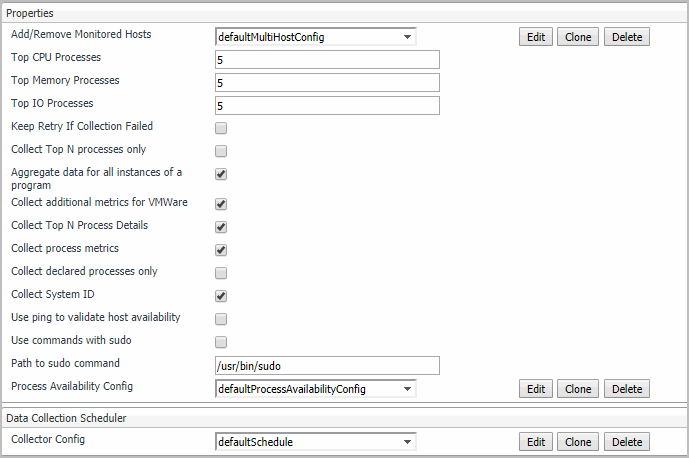

Figure 13. MultiHostProcessMonitorAgent properties

You can configure the following settings for this agent:

•
Properties:
•
Multiple Hosts Config: The list of hosts to be monitored. Click Edit to modify the following Multiple Host Config properties
•
OS Type: type of the operating system (Unix® or Windows®).
•
Host: host name or IP address.
•
Host name override: host name to be used to store this host’s data in the Foglight data model.
•
SSH Port: SSH port on which the agent connects. Default value = 22. Applicable to the Linux® platform only.
•
Top CPU Processes: number of top CPU processes to be monitored. Default value = 5.
•
Top Memory Processes: number of top memory processes to be monitored. Default value = 5.
•
Top IO Processes: number of top IO processes to be monitored. Default value = 5.
•
Keep Retry If Collection Failed: Default value = False. When set to True, the agent keeps trying to collect data when failed to connect to the target host during startup.
•
Collect Top N processes only: Default value = False. When set to True, the agent collects data for Top CPU Processes, Top Memory Processes, and Top IO Processes only.
•
Aggregate data for all instances of a program: Default value = True. When set to True, the agent collects data from all the instances of a program (for example all Oracle® instances), aggregates the information, and presents it in a unified report.
When set to False, the agent still collects aggregate data, but it also includes details about every process. This could result in a lot of data sent to the Management Server and may have a performance impact.
•
Collect additional metrics for VMWare: Default value = True. When set to True, the agent collects the following data:
•
Host: availablePagingSpace, runQueueLength, contextSwitches
•
CPU: totalHz, percentUserTime
•
Memory: capacity, consumed, pageInRate, pageOutRate, and utilization
•
Collect Top N Process Details: Default value = True. When set to True, the agent collects data for the Top CPU Processes, Top Memory Processes, and Top IO Processes. Details about these top processes are accessible from the Infrastructure Environment dashboard (for example, to see the top CPU processes, in the Monitoring tab, select a host on the Quick view, click the Explore button in the Resource Utilizations view, and click any metric indicator in the CPU area; the top CPU consumers are displayed in the CPU Details dashboard).
•
Collect process metrics: Default value = True. When set to True, the agent collects process metrics.
•
Collect declared processes only: Default value = False. When set to False, the agent collects metrics for all processes that matches the values defined in Process Availability Config. An alarm will be raised when the actual process count is lower than Expected Process Count.
When the Collect declared processes only property is set to true, only processes declared under Process Availability Config will be reported.
•
Collect System ID: Default value = True. This property indicates to the agent whether or not to collect a unique system ID from this system. This is not always desirable when monitoring Hyper-V® systems, as some Hyper-V systems use the same ID for multiple systems and are not unique.
•
Use ping to validate host availability: Default value = False. When set to True, the agent is configured to use ping to detect if the monitored host is unavailable. If the agent fails to make a connection to the monitored host, and this property is set to True, the agent sends a ping command to the host. If the host does not respond, the Host.monitored observation is set to UNAVAILABLE (for more details, see Host availability alerting).

*
NOTE: When the Use ping to validate host availability property is enabled on a UNIX® platform, the sudoer file needs to configured to allow the ICMP process to run with NOPASSWD. For details, see Configuring secure launcher permissions using sudo.
•
Use commands with sudo: Default value = False. Applicable to the Linux® platform only. When set to False, the agent does not use commands that require sudo, and does not collect metrics that require root permissions. For more information about sudo commands that require root access, see Configuring secure launcher permissions using sudo.
•
Path to sudo command: The path to the sudo executable. Applicable to the Linux® platform only.
Process Availability Config: A list of monitored processes and their expected instance counts. The list contains three columns: Process Name, Command Line, and Expected Process Count, and can be edited, as required. The agent compares the number of actual processes with the number of expected processes found in this list. Results are displayed in the Processes > Processes > User Defined Processes (Process Availability Config) view (for details, see User Defined Processes (Process Availability Config)).

*
TIP: This feature replaces the AppMonitor capability provided by the legacy OS cartridge.
The combination of Process Name, Command Line, and Expected Process Count consists of the expression that identifies the query criteria for filtering out the process instances. The following samples demonstrate how to find the values of Process Name and Command Line on Solaris:
*
TIP: So far, we only support exact string matching for Process Name, while regular expression is supported for Command Line.
•
Solaris: Execute the “/usr/bin/ps -e -o uid,pid,ppid,vsz,rss,time,pcpu,sid,s,user,comm,args” command. Then you will get the following process details.
16801 21353 21351 249104 159096 01:08 0.0 2665 S murex /usr/local/java/jdk1.7.0_51/bin/java /usr/local/java/jdk1.7.0_51/bin/java -Dname=RTZSP_DEALGEN -Djava.library.path=/
In the sample above:
•
Process Name is /usr/local/java/jdk1.7.0_51/bin/java
•
Command Line can be either usr/local/java/jdk1.7.0_51/bin/java -Dname=RTZSP_DEALGEN -Djava.library.path=/ or some keywords (for example, RTZSP_DEALGEN)
•
Data Collection Scheduler
•
Collector Config: defines how quickly the agent collects data. Both Windows and Linux® provide a defaultSchedule configuration. Users can modify, clone, and delete configurations, as necessary.
Configuring secure launcher permissions using sudo

Some UnixAgents can function without root privileges, but certain metrics can only be collected by commands which must be run as root. In order to give these agents the required access, Foglight Agent Manager is configured to launch these agents using a tool such as sudo that allows privilege escalation (without a password).

To this effect, the sudo configuration file (/etc/sudoers) must be configured so that password prompts are not required for a number of executables. The commands requiring elevated privileges differ by platform. The following commands must be configured for this version of Foglight for Infrastructure.

Table 6. Sudo commands that must be configured
Agent Type
Command
Notes

Linux®

/usr/bin/find, /bin/cat

Used to read IO statistics from the /proc filesystem.

/sbin/ethtool or /usr/sbin/ethtool (depending on distribution)

/sbin/mii-tool or /usr/sbin/mii-tool (depending on distribution)

Used to determine the network card bandwidth; ethtool is favoured if it is found.

The following is an example of how to configure the /etc/sudoers file to allow the user foglight to execute Linux® commands without being prompted for a password:

foglight ALL = NOPASSWD: /usr/bin/find, /bin/cat, /sbin/ethtool

In addition, the requiretty flag must not be set in /etc/sudoers for the user, since Foglight for Infrastructure agents use non-interactive shells.

The following is an example of how to unset the requiretty flag for a single user named foglight, so that this user can run sudo commands remotely:

Defaults:foglight !requiretty

*
NOTE: If requiretty flag is set, sudo can run only when the user is logged in to a real tty. When this flag is set, sudo can only be run from a login session and not via other means, such as cron or cgi-bin scripts. This flag is off (unset) by default.
Controlling log usage for sudo access

Using commands with sudo access can result in increased logging. Sudo provides the following levels of logging, each resulting in the capture of a specific type of information:

•
Log all commands that run with sudo.
•
Log only commands that run with sudo and cause errors.
•
Log all command-line output produced by the commands that run with sudo.
•
Log all command-line input provided to the commands that run with sudo.

Depending on the user’s sudo and syslog.conf configuration, sudo use may result in excess logging. To minimize the amount of log messages, ensure that sudo does not make use of the LOG_INPUT or LOG_OUTPUT tags for the commands that the UnixAgent runs. Depending on the existing monitored hosts’ configuration, any lines added to the /etc/sudoers file for Foglight monitoring may have to include NOLOG_OUTPUT or NOLOG_INPUT to override the default configuration. For example, for a user named foglight connecting to a monitored host, the following lines are required:

Linux
foglight ALL = NOLOG_INPUT: ALL, NOLOG_OUTPUT: ALL, NOPASSWD: /usr/bin/find|,
/bin/cat, [/sbin/ethtool|/usr/sbin/ethtool|sbin/mii-tool|/usr/sbin/mii-tool]

The last argument in this syntax depends on the type and location of the tool, ethtool or mii-tool, used to determine the network card bandwidth. If you are unsure which tool your system uses, you can specify all of them:

foglight ALL = NOLOG_INPUT: ALL, NOLOG_OUTPUT: ALL, NOPASSWD: /usr/bin/find|,

/bin/cat, /sbin/ethtool, /usr/sbin/ethtool, /sbin/mii-tool, /usr/sbin/mii-tool



Monitoring log files with Foglight Log Monitor

Foglight for Infrastructure relies on the File Log Monitor and Windows Event Log Monitor agents to collect data. These agents collect desired information from selected logs. A log file consists of one or more entries, or log records. Depending on the format of a monitored log file a log record can span multiple lines. The collected information is visualized on the Log Monitor dashboard.

Start by ensuring that Foglight for Infrastructure is installed on the Management Server, and that the agent package is deployed. For installation instructions, see the Foglight for Infrastructure Release Notes.

Next, configure the File Log Monitor and Windows Event Log Monitor agents for data collection. For more information, see Configuring monitoring agents, Configuring agent properties, and Configuring connections to remote Windows platforms.

When your monitoring agent instances are configured and are collecting data, navigate to the Log Monitor dashboard. This dashboard allows you to look at individual log records, and observe their growth rate over the selected time range. For more information, see Investigating log records.
