Foglight for Citrix XenDesktop and XenApp 5.6.16.1 - User Guide

Getting Started Setting Up Data Collection Agents Monitoring the Performance of your XenDesktop Environment

Activating Foglight for XenDesktop and XenApp Licenses

Foglight for XenDesktop and XenApp is license-protected. When you install it for the first time, it comes with a 40-day trial license. You can activate it using the Getting Started tab. You can also use this tab to purchase or renew your Foglight for XenDesktop and XenApp license when your existing trial or commercial license expires. For more information, see the Foglight for XenDesktop and XenApp Release Notes.

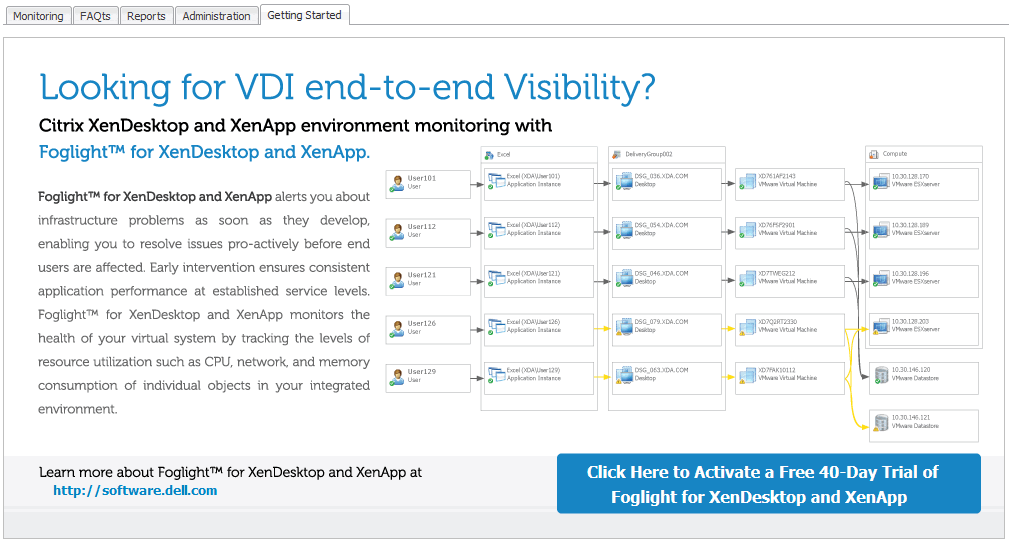

Figure 35. Getting Started tab

Investigating the Performance of XenDesktop Infrastructure Components

A typical XenDesktop® infrastructure consists the following high-level components:
•
XenDesktop Site represents your monitored XenDesktop environment, consisting of Delivery Controllers, virtual desktops that they distribute to end-users, and other associated components.
•
Delivery Controllers distribute virtual desktops to end-users, manage user access, and optimize connections.
•
License servers allow Citrix® licenses to be shared among application components.
You can monitor the performance of these components when you select the XenDesktop Infrastructure tile on the XenDesktop Environment dashboard.
The information appearing in the XenDesktop Infrastructure Quick View can help you discover potential resource-level issues such as spikes in session trends, and to reallocate resources where they are most needed.
Figure 36. XenDesktop Infrastructure Quick View
To explore XenDesktop Sites, Delivery Controllers, and License Servers:
1
On the navigation panel, under Dashboards, click XenDesktop Environment.
2
On the XenDesktop Environment dashboard, on the Monitoring tab, click the XenDesktop Infrastructure tile.
3
In the XenDesktop Infrastructure Quick View, in the XenDesktop Infrastructure view on the left, click Site Overview.
The XenDesktop Infrastructure Quick View refreshes, showing the Summary - XenDesktop Site view on the right.
Figure 37. XenDesktop Infrastructure Quick View
This view displays general information about the monitored XenDesktop site and shows the high-level performance trends in session counts, logon duration, machine and connection failures, and so on. For more information, see Exploring XenDesktop Sites.
4
In the left pane, select a License Server or a Delivery Controller.
The XenDesktop Infrastructure Quick View refreshes, showing a summary view on the right (Summary - License Server or Summary - Delivery Controller).
Figure 38. Summary - License Server view
•
When the Application tile on left is selected this view shows the list of services running on the selected License Server or Delivery Controller, and displays any alarms associated with it.
Figure 39. Summary - License Server view, Application tile selected
•
When you select Guest, the view shows the usage of system resources on the machine on which the selected License Server or Delivery Controller is running.

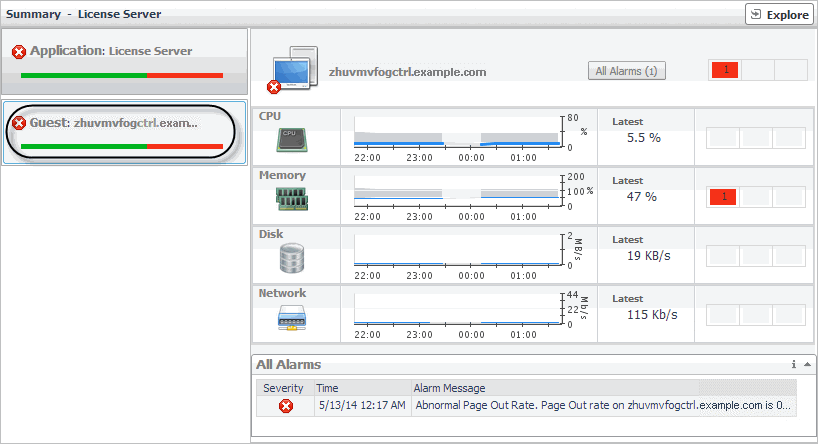

Figure 40. Summary - License Server view, Guest tile selected
For more information, see Investigating the Use of License Server and Delivery Controller Resources.
5
Explore a License Server or Controller in more detail. In the top-right corner of the view, click Explore.
The display area refreshes.
Figure 41. Exploring License Servers
The resulting view helps you understand the state of the resources of the host on which the License Server or Controller is running, if that host is already monitored with Foglight™ for Infrastructure. You can observe how the existing resource levels affect your monitored system as a whole. Along with displaying the system, network, CPU, memory, disk usage metrics, and any related alarms, this intuitive dashboard connects these visual elements with a series of graphical flows that illustrate how quickly the hosts transmits and processes data in real time. For example, you can review the rates of incoming and outgoing data and how they affect your network resources.
For more information, see Exploring Individual License Servers and Controllers.

*
TIP: To return to the XenDesktop Environment dashboard, use the bread crumb trail in the top-left corner.

Exploring XenDesktop Sites

A XenDesktop Site represents your monitored XenDesktop® environment, consisting of Delivery Controllers, virtual desktops, and other associated components. The Summary - XenDesktop Site view allows you to review general information about the monitored XenDesktop site along with performance trends in session counts, logon duration, machine and connection failures. Use this view to review the general trends in the overall performance of your monitored XenDesktop site and to look for any indicators that suggest potential bottlenecks. For example, an unusually high number of connection errors can affect the end-user experience and should be investigated.

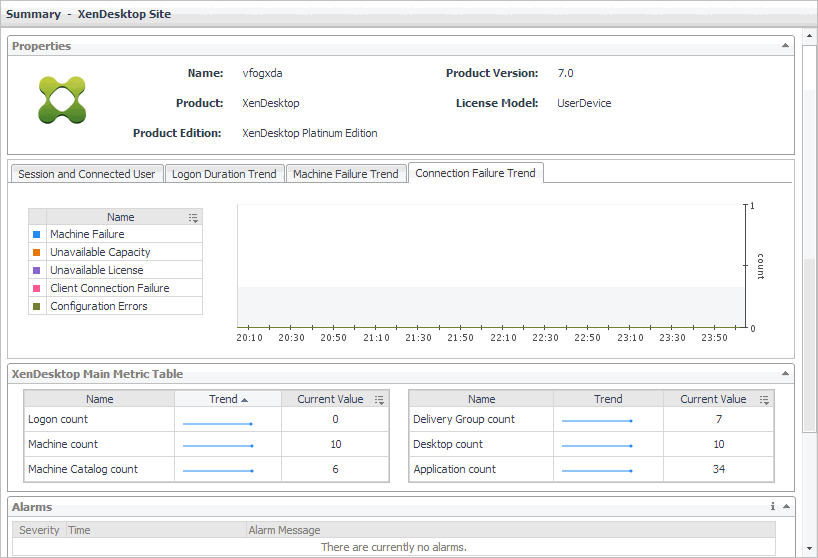

Figure 42. Summary - XenDesktop Site view

Table 3. Summary - XenDesktop Site view
Properties
Configuration details for the monitored XenDesktop Site: the name of the selected XenDesktop Site, the name of the XenDesktop application running on the monitored Site, the XenDesktop application edition, the XenDesktop version number, and the type of the license model implemented at the monitored XenDesktop site.

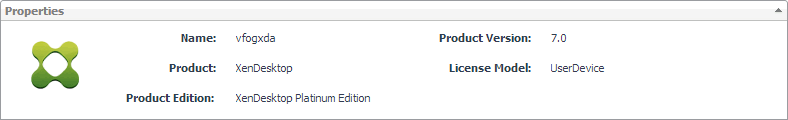

Figure 43. Properties view
Session and Connected User
The session and user counts over the selected time period.
Figure 44. Session and Connected User tab
Logon Duration Trend
The logon duration times over the selected time period.
Figure 45. Logon Duration Trend tab
Machine Failure Trend
The counts of system-related failure types over the selected time period.
Figure 46. Machine Failure Trend tab
Connection Failure Trend
The counts of connection-related failure types over the selected time period.

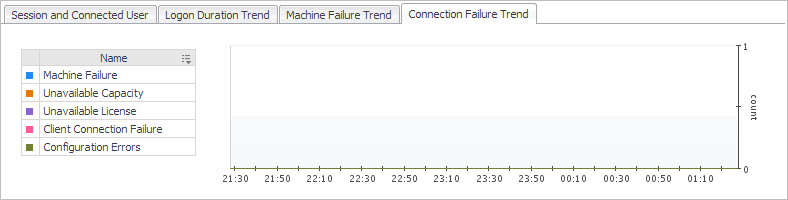

Figure 47. Connection Failure Trend tab
XenDesktop Main Metric Table
The main XenDesktop metrics and their values. Each entry indicates the metric name, the trend in the metric value, and the current metric value.
Figure 48. XenDesktop Main Metric Table
Alarms
The alarms generated against the monitored XenDesktop Site. Each entry indicates the alarm severity (Warning, Critical, or Fatal), the time when the alarm was generated, and an explanation indicating what triggered the alarm.
Figure 49. Alarms view

Investigating the Use of License Server and Delivery Controller Resources

In your monitored environment, a Citrix License Server allows Citrix® licenses, including XenDesktop® licenses, to be shared among application components. Delivery Controllers distribute virtual desktops to end-users, manage user access, and optimize connections. You can review the performance of these components in the Summary - License Server and Summary - Delivery Controller views.
These views have two different layouts, depending on the tile selected on the left:
•
Application view
•
Guest view
