Domain Controller Directory Services view

The Domain Controller Directory Services view displays performance health information about the selected DC’s directory service processes.

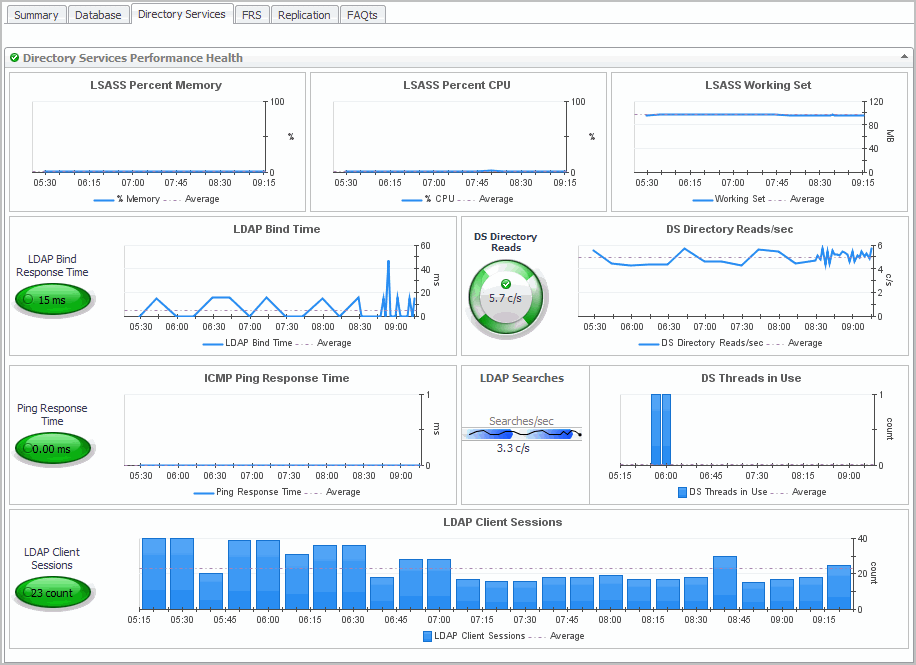

Figure 37. Domain Controller Directory Services view

How to get here
1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
2
Use one of the following methods to display this view:
•
From the Active Directory Enterprise view (under Dashboards in the navigation panel), select an individual DC object.
•
From the Domain Controllers tile (at the top of the Summary view), select the Domain Controllers icon, title or count. On the Domain Controllers Inventory dialog, select an individual DC.
3
Select the Directory Services navigation tab.
The Domain Controller Directory Services view appears in the Primary view on the Active Directory Explorer dashboard.
Embedded views

This view is made up of the following embedded views:

•
Directory Services General view
•
Address Book view*
•
Asynchronous Thread Queue view*
•
Directory Services General view*
•
Directory Services Reads view*
•
Directory Services Searches view*
•
Directory Services Writes view*
•
Key Distribution Center view*
•
LDAP view*
•
Security Accounts Manager view*

*
NOTE: The views marked with an asterisk (*) are not displayed by default. In order to display these views, you must enable the corresponding collection group in the Directory Services section of the Metrics Management dashboard.

Domain Controller DFS-R view

The Domain Controller DFS-R view displays performance health information about the selected DC’s Distributed File System Replication (DFSR) service.


*
NOTE: Either the Domain Controller DFS-R view or the Domain Controller FRS view is displayed depending on the file replication service set up for the SYSVOL on the selected DC.

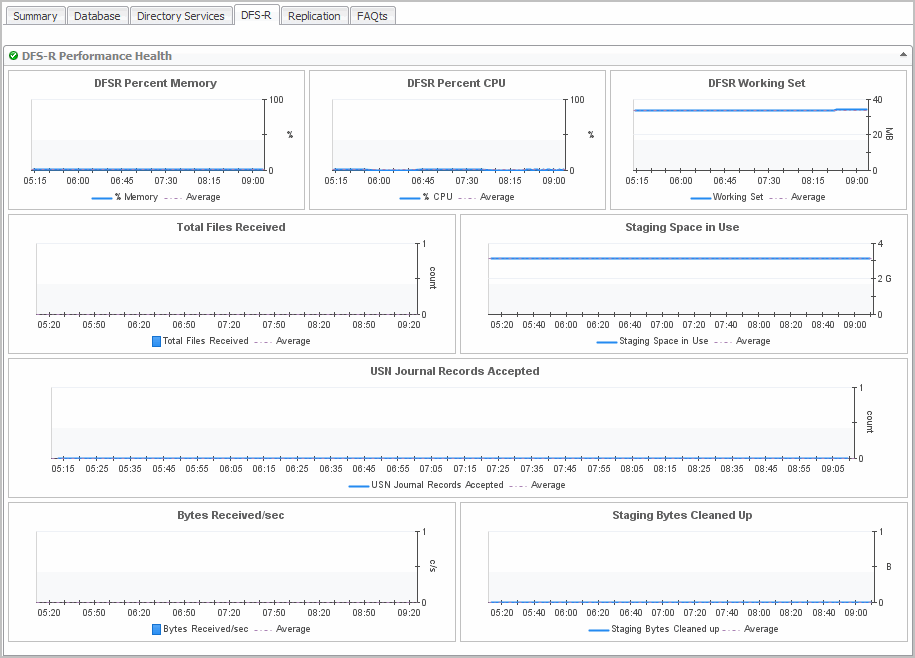

Figure 38. Domain Controller DFS-R view

How to get here
1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
2
Use one of the following methods to display the Domain Controller Summary view:
•
From the Active Directory Enterprise view (under Dashboards in the navigation panel), select an individual DC object.
•
From the Domain Controllers tile (at the top of the Summary view), select the Domain Controllers icon, title or count. On the Domain Controllers Inventory dialog, select an individual DC.
3
Select the DFS-R navigation tab.
The Domain Controller DFS-R view appears in the Primary view on the Active Directory Explorer dashboard.
Embedded views

This view is made up of the following embedded views:

•
DFS Namespace Service API Queue view
•
DFS Namespace Service API Queue view*
•
DFS Namespace Service API Requests view*
•
DFS Namespace Service Referrals view*
•
DFS Replicated Folders view*
•
DFS Replication Connections view*
•
DFS Replication Service Volumes view*

*
NOTE: The views marked with an asterisk (*) are not displayed by default. In order to display these views, you must enable the corresponding collection group in the DFS-R section of the Metrics Management dashboard.

Domain Controller FRS view

The Domain Controller FRS view displays performance health information about the selected DC’s file replication service.


*
NOTE: Either the Domain Controller DFS-R view or the Domain Controller FRS view is displayed depending on the file replication service set up for the SYSVOL on the selected DC.
Figure 39. Domain Controller FRS view

How to get here
1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
2
Use one of the following methods to display the Domain Controller Summary view:
•
From the Active Directory Enterprise view (under Dashboards in the navigation panel), select an individual DC object.
•
From the Domain Controllers tile (at the top of the Summary view), select the Domain Controllers icon, title or count. On the Domain Controllers Inventory dialog, select an individual DC.
3
Select the FRS navigation tab.
The Domain Controller FRS view appears in the Primary view on the Active Directory Explorer dashboard.
Embedded views

This view is made up of the following embedded view:

•
FRS Performance Health view
•
FileReplicaConn Authentications/Bindings view*
•
FileReplicaConn Change Orders view*
•
FileReplicaConn Fetch view*
•
FileReplicaSet Authentications/Bindings view*
•
FileReplicaSet Change Orders view*
•
FileReplicaSet DS Communications view*
•
FileReplicaSet Files view*
•
FileReplicaSet Local Change Orders view*
•
FileReplicaSet Packets view*
•
FileReplicaSet Remote Change Orders view*
•
FRS Replica Sets view*
•
FRS Staging Files view*

*
NOTE: The views marked with an asterisk (*) are not displayed by default. In order to display these views, you must enable the corresponding collection group in the FRS section of the Metrics Management dashboard.

Domain Controller Replication view

The Domain Controller Replication view displays performance health information about the selected DC’s replication activity.

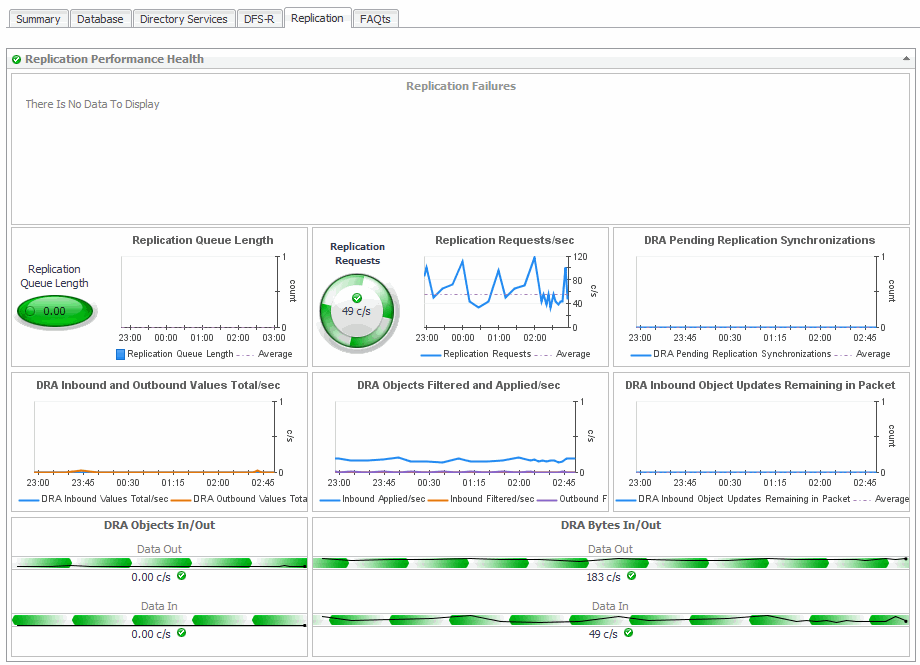

Figure 40. Domain Controller Replication view

How to get here
1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
2
Use one of the following methods to display the Domain Controller Summary view:
•
From the Active Directory Enterprise view (under Dashboards in the navigation panel), select an individual DC object.
•
From the Domain Controllers tile (at the top of the Summary view), select the Domain Controllers icon, title or count. On the Domain Controllers Inventory dialog, select an individual DC.
3
Select the Replication navigation tab.
The Domain Controller Replication view appears in the Primary view on the Active Directory Explorer dashboard.
Embedded views

This view is made up of the following embedded views:

•
Replication Performance Health view
•
DFS Namespace Service API Queue view*
•
Directory Replication Outbound view*
•
Directory Replication Sync view*
•
Directory Replication USN view*

*
NOTE: The views marked with an asterisk (*) are not displayed by default. In order to display these views, you must enable the corresponding collection group in the Replication section of the Metrics Management dashboard.
