Benchmark Factory Run Reports

Benchmark Factory Run Reports is a separate executable that provides a comprehensive and detailed collection of database load testing results. With Benchmark Factory you can drill down into a database to view a wide array of information and statistics that gives you accurate insight into database performance. Run Reports Viewer allows you to access Benchmark Factory load testing results.

Note: Three instances of Run Reports can be viewed at one time.

Cutting and Pasting of Run Reports

From Benchmark Factory run reports you can cut and paste test results into the Clipboard.

Testing Server Throughput

Server throughput is the measurement of database capacity. Benchmark Factory allows you to view a variety of server throughput statistics that include:

  • Transaction/Second (TPS)
  • Transaction Time
  • Bytes/Second (BPS)
  • Rows/Second (RPS)
  • Total Bytes
  • Total Errors
  • Total Rows
  • Response Time



Testing SQL Scalability

The Benchmark Factory transaction comparison graph provides users with a comparison of the individual transaction performance as they compare to each other. This is most useful when analyzing a SQL Scalability test.



Testing Real Application Clusters

Benchmark Factory allows you to load test Oracle Real Application Clusters (RAC) to determine system capacity. The cluster performance graph allows users to view the performance of individual nodes.



Overview

Benchmark Factory Run Reports is a separate executable that provides a comprehensive and detailed collection of database load testing results. With Benchmark Factory you can drill down into a database to view a wide array of information and statistics that gives you accurate insight into database performance. Run Reports Viewer allows you to access Benchmark Factory load testing results.

Note: Three instances of Run Reports can be viewed at one time.

Cutting and Pasting of Run Reports

From Benchmark Factory run reports you can cut and paste test results into the Clipboard.

Testing Server Throughput

Server throughput is the measurement of database capacity. Benchmark Factory allows you to view a variety of server throughput statistics that include:

  • Transaction/Second (TPS)
  • Transaction Time
  • Bytes/Second (BPS)
  • Rows/Second (RPS)
  • Total Bytes
  • Total Errors
  • Total Rows
  • Response Time



Testing SQL Scalability

The Benchmark Factory transaction comparison graph provides users with a comparison of the individual transaction performance as they compare to each other. This is most useful when analyzing a SQL Scalability test.



Testing Real Application Clusters

Benchmark Factory allows you to load test Oracle Real Application Clusters (RAC) to determine system capacity. The cluster performance graph allows users to view the performance of individual nodes.



Changing Graph View

To modify a graph view, right-click a Benchmark Factory graph to display a drop-down list that allows you to customize graph settings. Whether you are viewing a real-time graph or one in Benchmark Factory Run Reports, Benchmark Factory uses the same graphing tool. In most cases you will find that the graphs are presented in the most meaningful form (Line Graphs or Bar Graphs based on the data being presented.)

Displays Benchmark Factory Run Reports



Shows in a data form or graph form

Displays the Graph Legend

Displays the graph toolbar

Prints the graph

Copies Data to Clipboard

Copies Graph to Clipboard

Loads a saved graph configuration

Saves a graph configuration

Sets the current configuration as default

Clears the current chart configuration

Show Data/Show Graph

Toggling to Graph displays the data in graph form.



Graph Legend

Toggling to Graph Legend displays a legend on the side of the graph.

Toolbar

Toggling to Toolbar displays the graph toolbar.

Print

Choosing Print displays the Print Dialog.

Copy Data to Clipboard

Copies the data to the clipboard.

Copy Graph to Clipboard

Copies the graph to the clipboard.

Load Configuration

Benchmark factories graphs allows you to save graph configurations.

Save Configuration

Saves a graph configuration.

Set as Default

Sets a configured graph as default.

Clear Configuration

Clears a graph configuration.

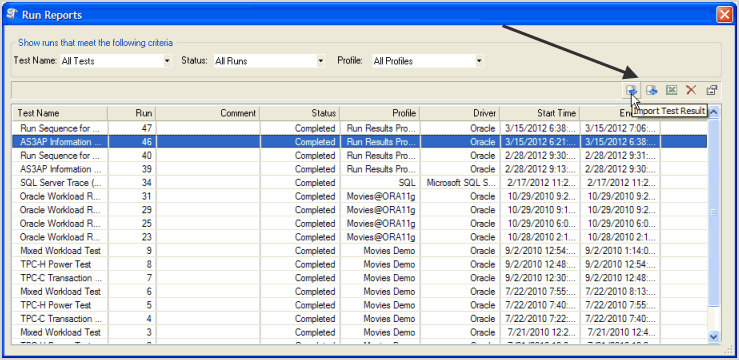

Run Reports Viewer

Open the Run Reports viewer to view a list of all test result reports.

To open Run Reports

  1. From the Benchmark Factory console click Tools | Run Reports. The Run Reports viewer opens.

See Using Benchmark Factory Run Reports for more information.

Importing and Exporting Benchmark Factory Test Results from Run Reports

From Run Reports, you can import or export run results.

To import or export testing results:

  1. Open Run Reports.
  2. Click on the required Import or Export button.

Navigate to the required folder to import or export the test results.

  1. Click Open or Save.
