Archive Manager for Exchange 8.8 - ArchiveWeb Guide

General Data Protection Regulation

ArchiveWeb now supports General Data Protection Regulation (GDPR) regulations.

Retention

Users with the requisite permission can create a retention change request for archived Exchange and Files items from its context menu. When a request is created, approvers get an email notification and can review the request. Users who created a request are informed through an email notification once an approver has processed the request. Users and approvers can track the requests in ArchiveWeb from the Retention tab. Users and approvers can see open, approved, denied requests and request history. Additionally, approvers can export all items from a request to a ZIP file, deny the entire request and approve all or selected items from the request.

To use all retention features, a working SMTP server is needed, however SMTP is not mandatory for retention functionality. The SMTP service is used to send notification emails to approvers and retention requesters.

To setup the SMTP service (PamConfig)

A working SMTP server is needed to send notification emails to users. The SMTP server must be configured with the Archive Manager Configuration Tool.

1.Open Archive Manager Configuration Tool from <installdir>\ Program Files (x86) \ Common Files \ PAM \ PAMConfig \ PamConfig.exe.

2.From the feature panel on the left in the Configuration wizard, click Users and verify that the database and scripts are up to date from the Database tab.

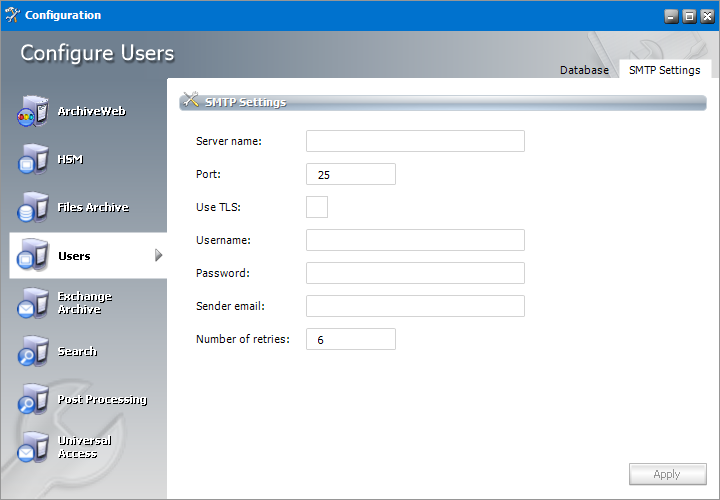

3.Click the SMTP Settings tab.

img-080


Specify the information as described below

·Server name -specify SMTP server name or IP address where the SMTP server is installed.

·Port -specify the SMTP port.

·Use TLS - select this option if the SMTP requires TLS.

·Username, Password - specify SMTP credential. Username must be in the format domain/username.

·Sender email - specify email address which will be used to hand-shake with the SMTP.

·Number of retries - specify number of retries the SMTP will try to send the message.

4.Click Apply and then close the window.

To grant permissions in ArchiveWeb

1.Log in to ArchiveWeb.

2.From the main menu, click the username dropdown and then select Manage settings.

3.From the local toolbar, click Permissions.

4.Grant the permissions to users and approvers as indicated below. For detailed steps about granting permissions, see Permissions.

Permission

Default value

Meaning

Approve retention change requests

Denied

Allows to approve or denied the retention change request and export items

Create retention change request

Denied

Allow to create a new retention change request and to display Retention tab at the top of the navigation bar with ability to list open, approved, denied requests and history.

To create a retention change request

Users with the Create retention change request permission can create a retention change request from the context menu for selected item(s).

1.Log in to ArchiveWeb.

2.Click Archive from the main menu and select the Exchange.

3.Select one or more archived items.

4.For a single archived item

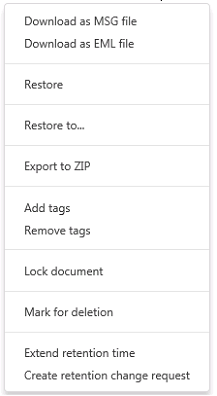

5.Click Menu in the preview pane and then select Log in to ArchiveWeb.

clip0079

6.For selected items, the context menu appears automatically. Select Create retention change request.

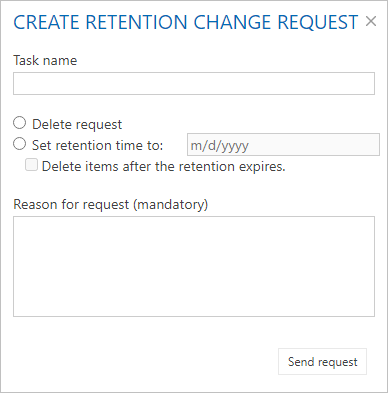

7.The Create Retention Change Request dialog opens

clip0080

8.Enter the information as described below:

·Task name – name for retention change request

·Delete request – select to create a delete request

·Set retention time to – select to set a new retention time in months. The purpose for this option is create a retention change request to decrease retention time

·Delete items after the retention expires – by selecting this option the expired items will be automatically deleted

·Reason for request – description of request

9.Click Send request to submit the request for approval. Newly created retention change requests appear in the Open and History lists in the Retention tab. Only items which have no Legal hold flag set will be added to retention change request.

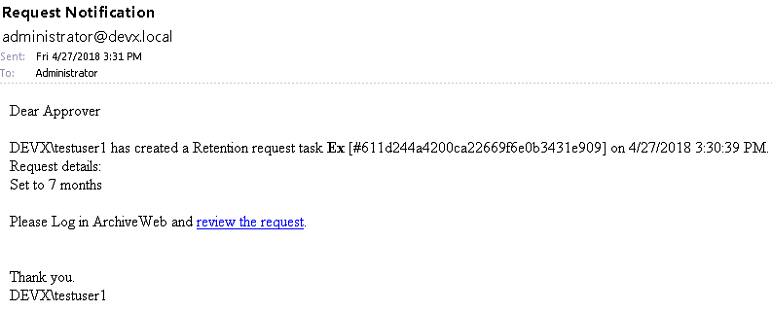

10.If the SMTP service is configured correctly, a notification email is sent to approvers who have been granted the Approve retention change requests permission. A sample email is shown below.

clip0081



Retention tab

This menu option is available to all users with either the Create retention change request or Approve retention change requests permissions. The user can see list of open, approved, denied requests and history.

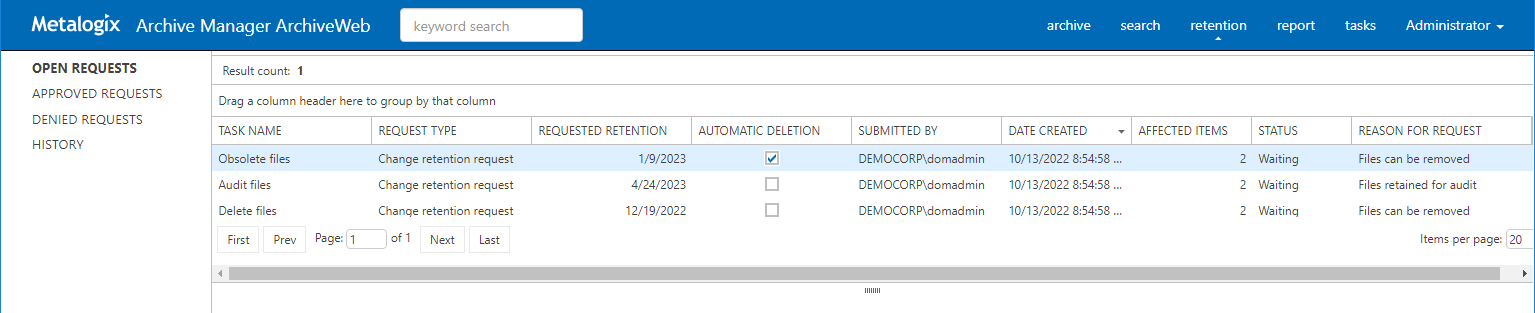

OPEN REQUESTS

OpenRequests

Displays all requests that are created but have not been approved or denied. Click any request to view the items included in the request in the preview pane. The columns are described below:

Column

Description

Task name

Retention change request task name

Request type

Request type:

Change retention request – request to decrease retention time

Delete request – request to delete item

Requested retention

Contains retention time requested in Change retention request task; for Delete request this column is empty

Automatic Deletion

Informs if the option "Delete items after the retention expires" is activated for the given item

Submitted by

Name of the user who submitted the request

Date created

Date-time when the request was submitted

Processed by

Name of the user who approved/denied the request

Date processed

Date-time when the request was approved/denied

Submitted items

Number of items in submitted request

Status

Request task’s status

Reason

Approve/Denied reason

Reason for request

Reason the submitter entered

To approve a request

1.Click the Retention tab and then click Open Requests.

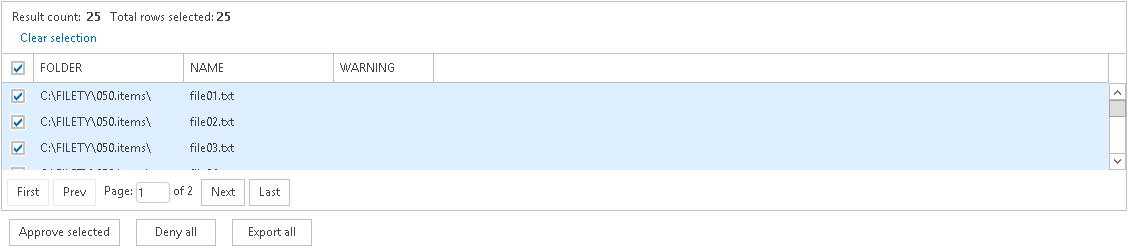

2.Select a request to view the items included in the request. Select ore or more items or select the checkbox in the column header to select all items.

ListGrid

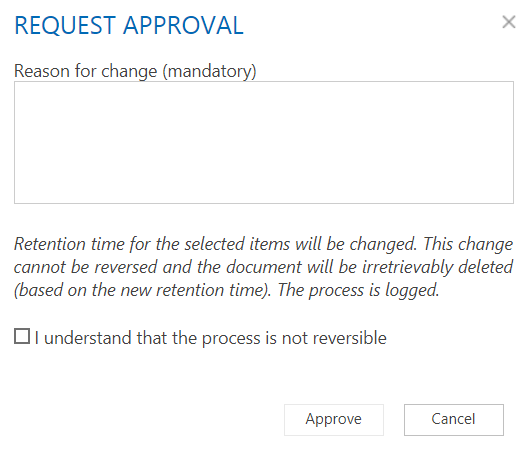

3.Click Approve selected. The Request Approval dialog opens.

request approval

·Reason for change - enter text to explain why the change is necessary.

·I understand that the process is not reversible - select this checkbox to confirm the approval

4.Click Approve. The selected items will be asynchronously processed and their retention settings will be changed.

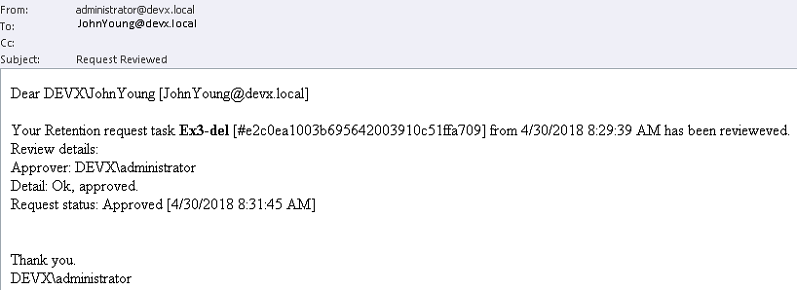

5.If SMTP is correctly set up, the requester will be informed through email. A sample notification email is shown below:

clip0085



To deny a request

1.Click the Retention tab and then click Open Requests.

2.Select a request to view the items included in the request. All items will be included for denial.

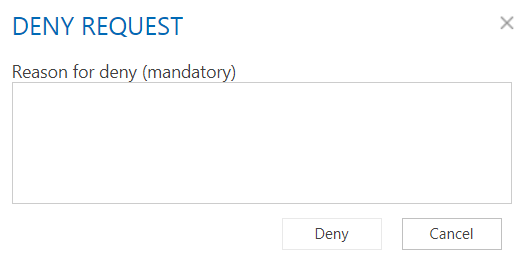

3.Click Deny all. The Deny Request dialog opens.

deny request

·Reason for deny - enter text to explain why the request is being denied.

4.Click Deny. All items will be denied. No operation from retention change request will be processed.

5.If SMTP is correctly set up, the requester will be informed through email. A sample notification email is shown below:

To export items

1.Click the Retention tab and then click Open Requests.

2.Select a request to view the items included in the request. Select ore or more items or select the checkbox in the column header to select all items.

ListGrid

3.Click Export all. All items will be exported to a ZIP file. There is option to encrypt the output ZIP file with a password.

APPROVED REQUESTS

Displays all requests that are approved. Click any request to view the items included in the request in the preview pane. The columns are described below:

Column

Description

Task name

Retention change request task name

Request type

Request type:

Change retention request – request to decrease retention time

Delete request – request to delete item

Requested retention

Contains retention time requested in Change retention request task; for Delete request this column is empty

Automatic Deletion

Informs if the option "Delete items after the retention expires" is activated for the given item

Submitted by

Name of the user who submitted the request

Date created

Date-time when the request was submitted

Processed by

Name of the user who approved/denied the request

Date processed

Date-time when the request was approved/denied

Affected items

Number of items approved

Status

Request task’s status.

Reason

Reason for approval

DENIED REQUESTS

Displays all requests that are approved. The columns are described below:

Column

Description

Task name

Retention change request task name

Request type

Request type:

Change retention request – request to decrease retention time

Delete request – request to delete item

Requested retention

Contains retention time requested in Change retention request task; for Delete request this column is empty

Automatic Deletion

Informs if the option "Delete items after the retention expires" is activated for the given item

Submitted by

Name of the user who submitted the request

Date created

Date-time when the request was submitted

Processed by

Name of the user who denied the request

Date processed

Date-time when the request was denied

Affected items

Number of items that were denied

Status

Request task’s status

Reason

Reason for denial

HISTORY

Display the list of all requests (open, approved and denied). The columns are described below:

Column

Description

Task name

Retention change request task name

Request type

Request type:

Change retention request – request to decrease retention time

Delete request – request to delete item

Requested retention

Contains retention time requested in Change retention request task; for Delete request this column is empty

Automatic Deletion

Informs if the option "Delete items after the retention expires" is activated for the given item

Submitted by

Name of the user who submitted the request

Date created

Date-time when the request was submitted

Processed by

Name of the user who denied the request

Date processed

Date-time when the request was denied

Affected items

Number of items that were denied

Status

Request task’s status

Reason for Request

Reason for approval or denial

Select any request in the History view to see the affected items in the preview pane. The columns are as described below:

From

Sender’s name

To

Recipient(s) names

Subject

Subject of the item

Approved

Indicates whether the item was approved

Error

Contains error message, if any

The preview pane in the History view contains two predefined filters:

·Processed – contains list of processed items.

oFor Change retention request – items with selected checkboxes in the Approved column have been processed, retention time have been changed; if error occurred the Error column will contain a message.

oFor Delete request – items with selected checkboxes in the Approved column have been processed by a Delete job, and items have been deleted; if error occurred the Error column will contain a message.

·Waiting – contains list of items waiting to be processed.

oFor Delete request – items with selected checkboxes in the Approved column are waiting for a Delete job to process the items.



ArchiveWeb Settings



As default, only the super-user specified in Archive Manager for Exchange or Archive Manager for Files (see note below) can access ArchiveWeb and all its functions.  If another user/group should be able to manage roles, super-user can allow access for them in the following ways:

·in ArchiveWeb under logged on user / Manage settings / Permissions

·in Archive Manager for Exchange Administration Center on the Tools / Options / User Roles the given user has to be added with Modify roles option checked

·in the Archive Manager for Files Administration Center on the Settings / User management tab the given user must have the User management permission allowed



Please note: Super-user is specified in:

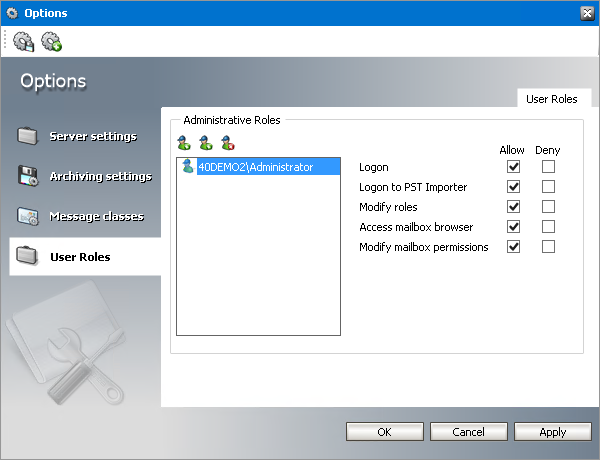

·Archive Manager for Exchange Administration Center / Tools / Options / User Roles)

img-074

or

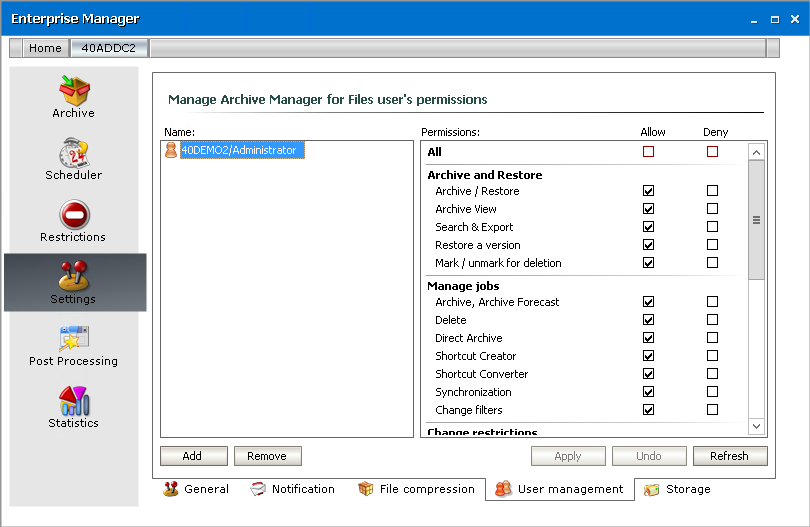

·Archive Manager for Files (Enterprise Manager / Settings / User management)

img-076



Roles and Permissions pages allow permission management on user/group level. Individual users can inherit permission or can be granted direct permissions. The priority of permissions follows this order:

1.Direct permission defined for a user (blue highlight under Permissions) on a server

2.Global direct permission defined for a user (blue highlight under Permissions)

3.Inherited permission (yellow highlight under Permissions) on a server

4.Global inherited permission (yellow highlight under Permissions)

5.Default settings (no highlight under Permissions)

All defined permissions apply only for the given instance of ArchiveWeb.



On these pages you can allow or deny access to ArchiveWeb features and menu options for individual users or groups, i.e. allow or deny roles. Under Roles, users are assigned to roles. Under Permissions, roles are assigned to users.

Roles

The Roles page displays permissions categorized by roles. These permission sets can be granted to users and groups either globally or by server and location. The Roles page helps you revoke or grant a specific permission to one or more users and groups. See the Permissions page to revoke or grant one or more permissions to a specific user or group.

Steps to access the Permissions page

1.Log in to ArchiveWeb.

2.From the main menu, click the username dropdown and then select Manage settings.

3.From the local toolbar, click Roles.

Steps to grant a permission to users or groups:

info

NOTE:

If the UseGlobalPermissionsForAllServers key is set to true or this key does not exist in the web.config file, the Roles page lists Global settings. In this case permissions for users and groups are set globally and are applicable to all servers.

If the UseGlobalPermissionsForAllServers is set to false in the web.config file, all available servers will be listed and permissions can be set for users or groups for a selected server or location. Using this option can slow down the login process because all accessible servers and locations must be searched for role assignments.

1.Either click Global or select a server to display the permissions in the right-hand pane.

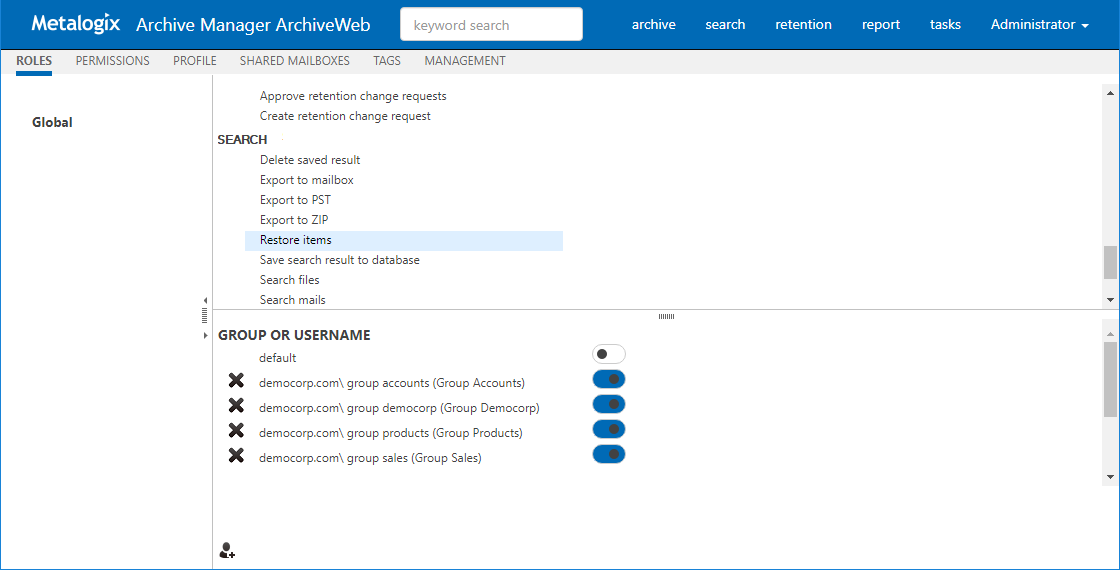

2.Select a permission from the right-hand pane. In the Group and Username section, Default indicates the default settings for this permission. Specific users and groups can be added to this  section to change their default permissions setting.

img-530

3.To add a user or group:

a.Click ico-120-add-user in theGroup and Username section.

b.In the Find Users or Groups window, enter a group or user name in the search field. You can use the asterisk (*) as a wildcard in the search criteria or leave the field blank to include all entities. Users can be searched by user-name, logon-name or display-name.  To search for Microsoft 365 users, select Office 365 user and then search for the user.

c.Select the users or groups to add. You can use Select all to add all users and groups in the search result.

d.Click OK to add the selected users and groups to the permission.

4.Set the toggle switch to ico-160-toggle-on to grant the permission. Set the toggle switch to ico-150-toggle-off to revoke the permission.

5.To remove a user or group, click ico-170-delete-user next to the user or group. The default setting will be applied to all removed users and groups.
