How does Recovery Manager for Active Directory select a DC to add the global catalog during forest recovery?

When recovering an Active Directory® forest, Recovery Manager for Active Directory adds the global catalog to the DCs that acted as global catalog servers before the recovery, provided that these DCs were successfully restored from backup.

If none of DCs that acted as global catalog servers before the recovery were successfully restored from backup, Recovery Manager for Active Directory adds the global catalog to the DC which was assigned the Schema Master role during the recovery.



Best practices for using Computer Collections

This section provides some recommendations for performing granular restore operations with Recovery Manager for Active Directory.

A Computer Collection allows you to group the computers (domain controllers or AD LDS (ADAM) hosts) to which you want to apply the same backup creation settings. For more information on how to create and manage Computer Collections, see the User Guide supplied with this release of Recovery Manager for Active Directory.

It is recommended to add computers to the same Computer Collection if you want to apply the same backup storage policy to all these computers.

For instance, you may want to store domain controller backups in one central location accessible to the Recovery Manager Console over a fast link. This scenario eliminates the need to copy the backups across the network before running an online restore operation and allows you to centrally manage the restore.

Set up the same backup creation schedule for all these computers. When scheduling backups for Computer Collections, it is important to consider that the performance of Recovery Manager for Active Directory may change depending on the number of Computer Collections and DCs in each Computer Collection. For example, the following table outlines the performance for different Computer Collection sizes.

note

These performance results were gathered from Recovery Manager for Active Directory with the following configuration:

  • Windows Server 2019

  • 4 vCPU, 8 GB RAM

  • Backup schedule configured for every Computer Collection

Table: Performance results for scheduled Computer Collections

RMAD configuration Metrics
Number of Computer Collections Number of DCs in each Computer Collection Console start time (seconds) Time to expand node (seconds) Time to add 1 collection (seconds) Time to remove 1 collection (seconds) Time to rename 1 collection (seconds)
10 10 1-2 <1 0 0 0
10 100 1-2 <1 0 0 0
50 10 2-3 1-2 0 0 0
50 100 2-3 1-2 0 0 0
100 10 4-5 3-4 0 0 0
100 100 4-5 3-4 0 0 0
500 10 21-22 20-21 1 0.5 0
500 100 25-26 23-24 2 0.7 0
1000 10 43-44 41-43 3 1.5 0
1000 100 43-44 42-44 5 2 0

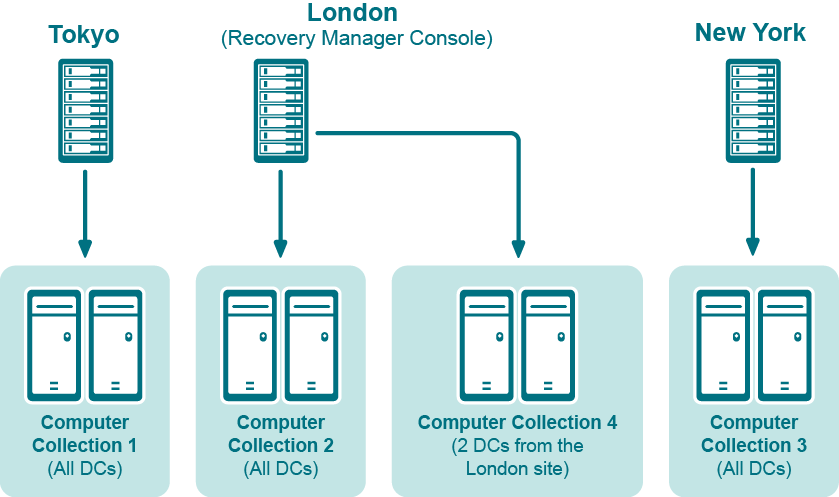

The following diagram provides an example of using Computer Collections:

Figure: Example of Using Computer Collections

In this example, the Recovery Manager Console is installed in the London site. Computer Collections 1, 2, and 3 include all domain controllers from the Tokyo, London, and New York sites, respectively. Computer Collection 4 includes two domain controllers from the London site. Backups of these two domain controllers are accessible to the Recovery Manager Console via a fast link and can be used to perform selective online restores of Active Directory® objects.



Technical characteristics

This section provides some technical characteristics of the product.



Typical backup creation times

The backup creation time depends on the Active Directory database size (NTDS.dit file) and the compression method Backup Agent uses when processing NTDS.dit. You can specify the compression method on the Performance tab in the Computer Collection Properties dialog box. For more information, refer to the User Guide supplied with this release of RMAD.

The following table illustrates the typical backup creation times for different compression methods. This table has been obtained for the following configuration:

  • The NTDS.dit file size: 3.14GB

  • The RMAD computer hardware: CPU 2x Intel® Xeon® 2.8 Hz; RAM 1GB

Compression method Backup file size Backup creation time (min:sec)
None 3.17GB 09:07
Fast 1.27GB 07:35
Normal 1.22GB 08:27
Maximum 1.2GB 17:54
