Quest Protect 1.8 - User Guide

Backup Servers table

The Backup Servers table shows a list of core servers that exist in the monitored Veeam environment.

Server Name. Shows the name of Veeam Backup Server.
Machines. Shows the amount of machines in this Veeam Backup Server.
Protected Spaces. Indicates the amount of storage space protected by this Veeam Backup Server.

Veeam Protected VMs table

The Veeam Protected VMs table shows a list of agents that exist in the monitored Veeam environment.

Name. Shows the name of Veeam Backup Server or cluster.
Last Job Status. Indicates whether the last job is Success, Warning, or Failed
Last Success. Indicates the time of last success job.
Protected Space. Indicates the amount of protected storage space.

Drill down on:

Explore. Click to navigate to the VMware Explorer dashboard. For more information, refer to the Foglight for VMware User and Reference Guide.



Jobs Tab - Veeam

The Jobs view of the Protection dashboard shows backup jobs for the Backup Servers, a specific protected or replicated machine in the monitored Veeam environment.

Figure 13. Jobs view

3
On the navigation panel, under Homes, click Protection.
The Protection dashboard opens.
The Jobs view appears at the bottom of the Protection dashboard.

A backup job is a configuration unit of the backup activity. The backup job defines when, what, how and where to back up. One backup job can be used to process one or several VMs.

The Jobs view includes the following elements:

Jobs table



Table 13. Jobs table
Name. Shows the name of Jobs.
Type. Indicates whether this job is backup job, or replication job.
Platform. Indicates whether this job is for HyperV, or VMware platform.
Backup Server. Shows the display name of this Veeam Backup Server.
Latest Run. Indicates when this job ran the last time.
Next Run. Indicates when this job will run the next time.
Description. Shows the description message of this job.

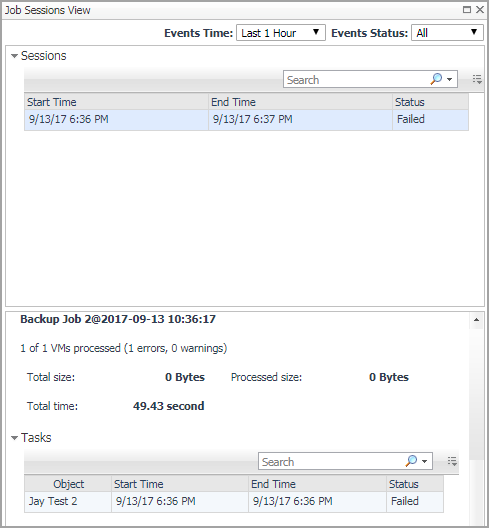

Name. Click this column to show the Jobs Sessions View dialog box.
