Installing the plug-in
Deploying the plug-in

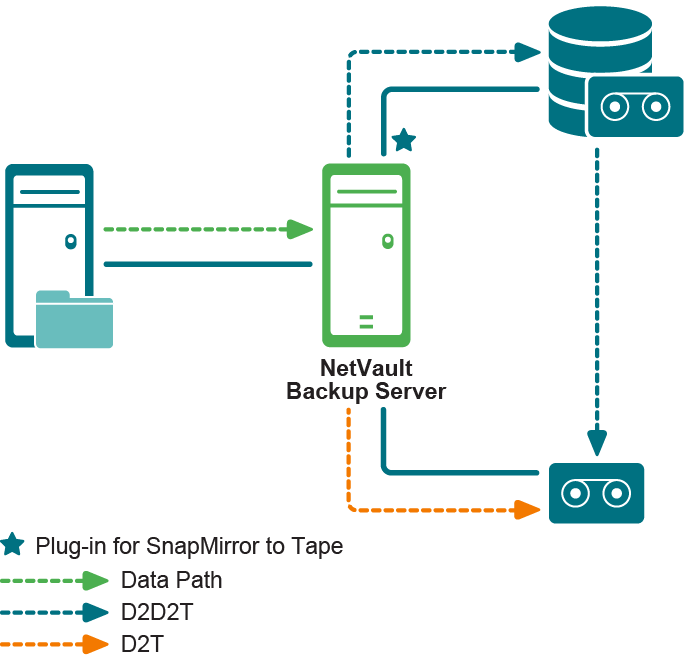

The Plug‑in for SnapMirror to Tape supports the following deployment methods:

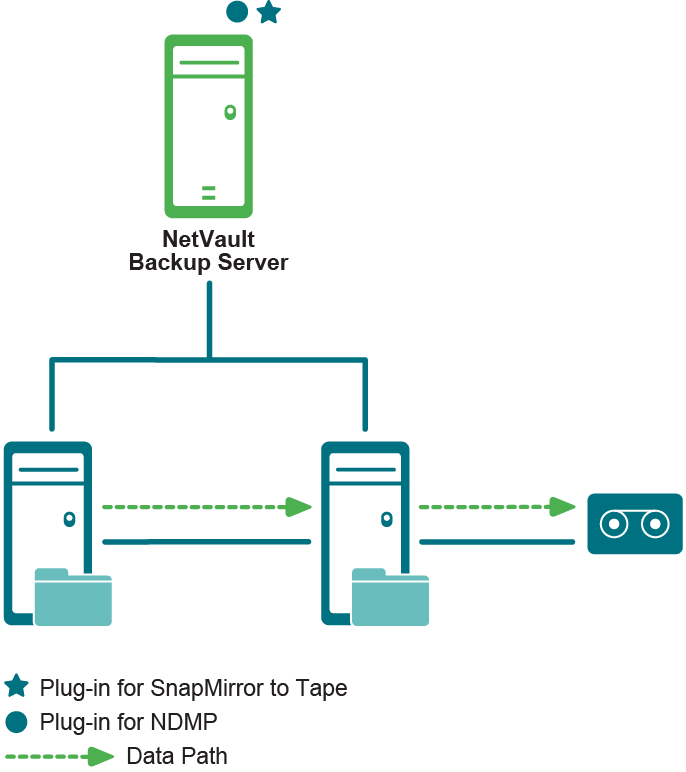

Figure 2. Deployment using filer-attached device
Prerequisites
Before installing the plug-in, verify that the following requirements are met:
|
• |
Install NetVault Backup Plug-in for NDMP (Plug-in for NDMP): Install Plug-in for NDMP on NetVault Backup Server if you are using a filer-to-filer setup and want to use the backup device attached to a different filer. |
|
• |
Install and configure NetApp SnapMirror: Install and configure the NetApp SnapMirror software on applicable NetApp filers. |
|
• |
Configure language and locale settings for NetVault Backup: Configure the correct language and locale settings on NetVault Backup WebUI. For more information, see the Quest NetVault Backup Administrator’s Guide. |
Installing the plug-in
|
1 |
In the Navigation pane, click Manage Clients. |
|
2 |
In the NetVault Backup Clients list, select the client on which you want to install the plug-in, and click Manage. |
|
3 |
).|
4 |
Click Choose Plug-in File, and in the browse window, navigate to the location of the “.npk” installation file for the plug-in (on the installation CD or the directory to which the file was downloaded from the website). |
|
5 |
Select the file named smt-x-x-x-x.npk (x-x-x-x represents the version, build, and platform numbers), and click Next to begin installation. |
