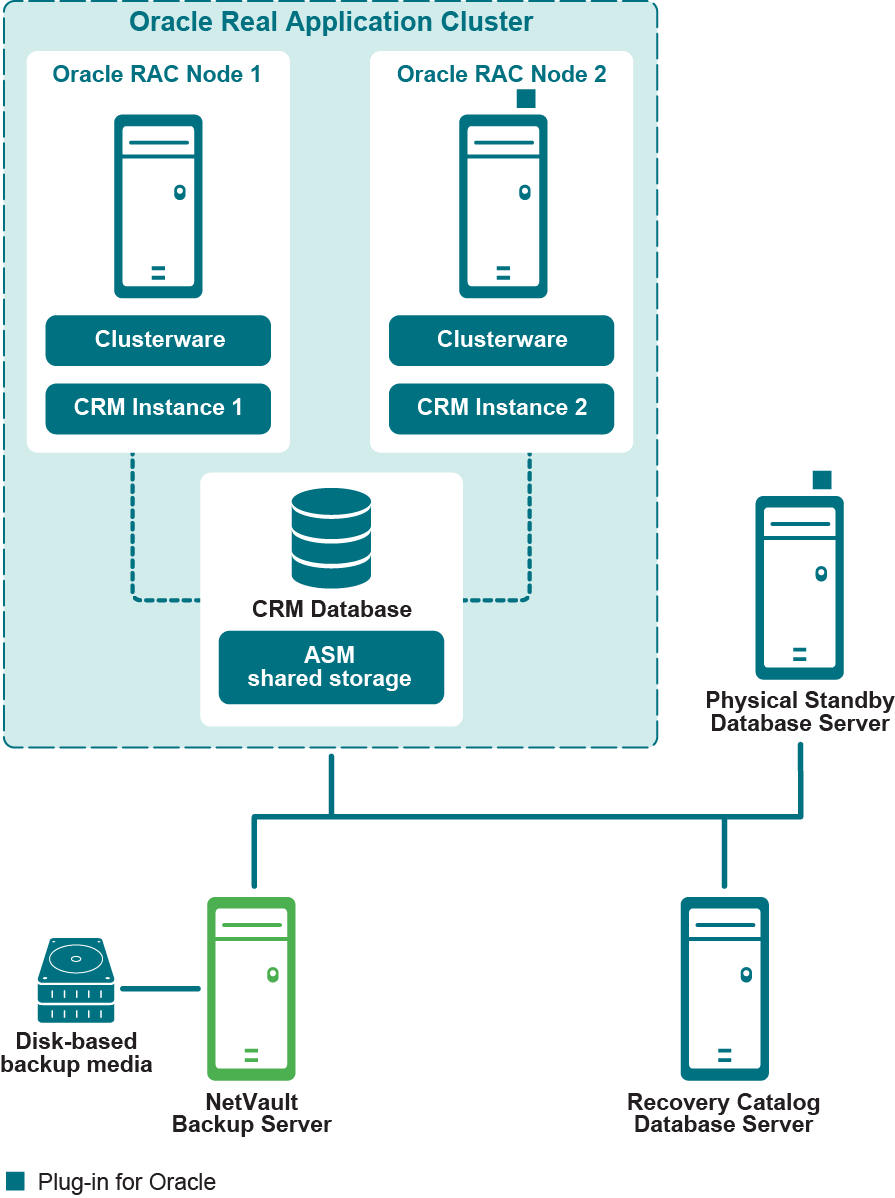

Multi-instance RAC to single-instance Data Guard deployment

In a multi-instance to single-instance Data Guard deployment, the plug-in is installed in the Primary RAC Database environment and at least one of the Standby Database Servers.

For more information on deploying the plug-in in a multi-instance RAC environment, see Defining a deployment strategy.

Multi-instance RAC to multi-instance RAC Data Guard deployment

In a multi-instance to multi-instance Data Guard deployment, the plug-in is installed in the Primary RAC Database environment and at least one of the Standby Database Servers.

For more information on deploying the plug-in in a multi-instance RAC environment, see Defining a deployment strategy.

Installing the plug-in in a Data Guard environment

Before completing any additional or different steps that are outlined in the following topics, review the information provided in earlier topics, such as Installing and removing the plug-in and Configuring the plug-in.

Installation prerequisites

The following prerequisites must be met before you can install Plug‑in for Oracle in a Data Guard environment:

Oracle Data Guard environment in place: You must have a properly configured Data Guard environment. The version of Oracle is listed as a Supported Data Guard environment in the Quest NetVault Backup Compatibility Guide.
Oracle RAC environment in place: For Data Guard environments that include multi-instance Primary or Standby Database Servers, meet the Oracle RAC-required configuration that is specified in RAC configuration requirements.
Separate NetVault Backup Server machine: The machine that is to serve as the NetVault Backup Server must be properly configured. This machine must exist outside the Data Guard environment, but have network connectivity to the nodes and hosts within the Data Guard environment.
Separate Recovery Catalog Server: Quest recommends that you store the RMAN repository in a Recovery Catalog database on a server outside the Data Guard environment. Only the primary database can be registered with the Recovery Catalog. For more information, see Creating the RMAN repository.
Control File Autobackups are enabled: Automatic backups of the Control File and SPFILE must be enabled on the databases that meet the following criteria:
Back up from Primary Only strategy: Enable Autobackups of the Control File and SPFILE on the Primary Database Server.
Oracle 10.2.x: Disable Autobackups of the Control File and SPFILE on both the Primary and all the Standby Database Servers where backups are performed. Manual Control File and SPFILE backups are performed on the Primary Database Server.
Oracle 11.x: Enable Autobackups of the Control File and SPFILE on all the database servers where backups are performed. For example, if Incremental Level 0 Backups are taken from Standby Database Server while Incremental Level 1 Backups are taken from the Primary Database Server, enable Autobackups on both the Primary and Standby Database Server.
Back up from Standby Only strategy: Enable Autobackups of the Control File and SPFILE on the Standby Database Servers where backups are being performed.
Flash Recovery Area recommended: Enabling FRA is recommended for Data Guard environments. For more information, see Configuring the Flash Recovery Area in the Oracle Database Backup and Recovery User’s Guide.
Flashback Database recommended: Enabling the Flashback Database is recommended on Data Guard Standby Database Servers. For more information, see Enabling Flashback Database and the Using Flashback Database After a Role Transition section in Oracle Data Guard Concepts and Administration.
Additional prerequisites: In addition to the preceding Data Guard-specific requirements, meet the non-Data Guard-specific requirements that are specified in Prerequisites.
