NetVault Plug-in for NDMP 10.0.5 - User Guide

Recommended additional reading

•
NetVault Backup documentation
•
Dell NetVault Backup Installation Guide: This guide provides information about installing the NetVault Backup Server and Client software.
•
Dell NetVault Backup Administrator’s Guide: This guide provides information about configuring and using NetVault Backup to protect your data. It provides comprehensive information about all NetVault Backup features and functionality.
•
Dell NetVault Backup Command Line Interface Reference Guide: This guide provides information about using the NetVault Backup command-line utilities.
•
Dell NetVault Backup Plug-in for NDMP Application Notes: These notes provide filer-specific information.
You can download these guides from https://support.quest.com/.


*IMPORTANT: Starting with 10.0, NetVault Backup provides a web-based user interface to configure, manage, and monitor your NetVault Backup system and installed plug-ins. The procedures described in this guide are intended for the new NetVault WebUI. For procedures based on the NetVault Backup Console (user interface available with NetVault Backup 9.x), see the documentation for an earlier version of the plug-in
•
NAS device documentation
•
Administrator’s Guide for your NDMP-based NAS appliance

Installing the plug-in

•
Understanding data transfer models
•
Prerequisites
•
Installing the plug-in
•
Removing the plug-in

Understanding data transfer models

The Plug‑in for NDMP supports the following data transfer models:
•
Direct-attached or local backups
•
Filer-to-filer or three-way backups
•
Remote backups
•
Heterogeneous three-way NDMP backups
•
Filer to NDMP-compliant network-attached tape backups

Direct-attached or local backups

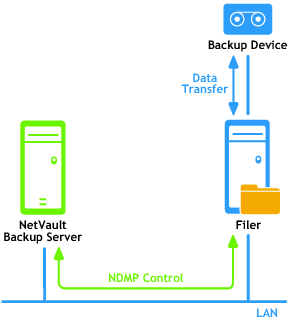

Figure 1. Direct-attached or local backup model
In the direct-attached or local backup model, the NetVault Backup Server instructs the filer to perform backups to the device directly attached to the filer (through Fibre Channel or SCSI). The filer transfers the backup index information to the server using NDMP over the network. During restores, the filer reads the data from the direct-attached device on server instruction. The actual data is not transmitted over the network during backup or restore, eliminating network congestion altogether.
