Restore Objects in the LiteSpeed UI Console
Before you can recover objects or execute a SELECT statement, you must read the backup file to create an index of restorable objects. The index is an .lsm file. During the backup process the .lsm file is created in the temp directory and attached to the backup file after the backup is completed.
|
Notes: |
- You can restore objects directly from the Cloud. It is recommended to use this in cases where there is a fast connection between OLR and the Cloud.
- You cannot restore objects directly from TSM files or tape backups. For more information, see Object Level Restores from TSM Backups.
- Object Level Recovery does not support SQL Server Transparent Data Encryption (TDE).
- LiteSpeed may take a long time to read the backup file for large databases, often with little response in the LiteSpeed UI Console. To prevent this, the Optimize Object Level Recovery speed option on the Backup wizard Options page is selected by default to create the index during the backup.
- Objects are recovered as they existed at the time they were backed up. You cannot recover data to a random point in time.
- Direct mode - In scenarios where you want the application to work with SQL Server directly using a TCP/IP connection without involving the SQL Server client, you can enable direct mode which significantly improves deployment and configuration of your applications. You can enable and disable the use of direct mode from the the Recover Table Wizard.
- Tail log processing - In scenarios when you do not require any transaction log backups and the tail log, you can select to bypass tail log processing. Object Level Recovery operations may work much faster in this case. You can enable and disable bypass tail log processing from the toolbar, and when running the Object Level Recovery Wizard and the Recover Table Wizard.
-
It is not recommended to use Object Level Recovery to recover tables with the size equal to or more than 1TB. It is recommended to use Object Level Recovery to recover tables with a size larger than 100GB on high-performance systems only. In other cases, a full database restore operation is preferred.
To read the backup files
-
Select the Object Level Recovery pane (CTRL+3).
-
Select Object Level Recovery Wizard.
-
On the Welcome page click Next.
-
On the Specify Recovery Destination page, select the server instance.
-
On the Specify Backup Source:
- Select Database to restore from a specific database's backup history.
- Select Device and Disk to manually select files on disk to restore. Click Add. The Backup File Location window is displayed. You can also click Remove or Content to remove the file or view file contents. Selecting Content displays a window showing file general properties and file backup sets properties.
- Select Device and Cloud to manually select files from the Cloud to restore.
-
On the Backup File Location window, locate and select the backup file to read. Once selected, the file path and file name are displayed. Click OK. You can browse the network, add, delete, and rename folders.
-
On the Select Backup Files page, click Next.
note: LiteSpeed must be installed on the server instance you select on the Specify Recover Destination page.
-
On the Backup Content page, select a backup to recover and click Next.
- Point in time restore - Use the slider to indicate the required point in time. This supports table level recovery.
- Bypass tail log processing - Select this option to bypass tail log processing. Object Level Recovery operations may work faster.
tip: Only disk backups are supported for OLR.
-
On the Preview Script page, view the script that will run to retrieve the backup content. Click Next.
-
Complete the wizard.

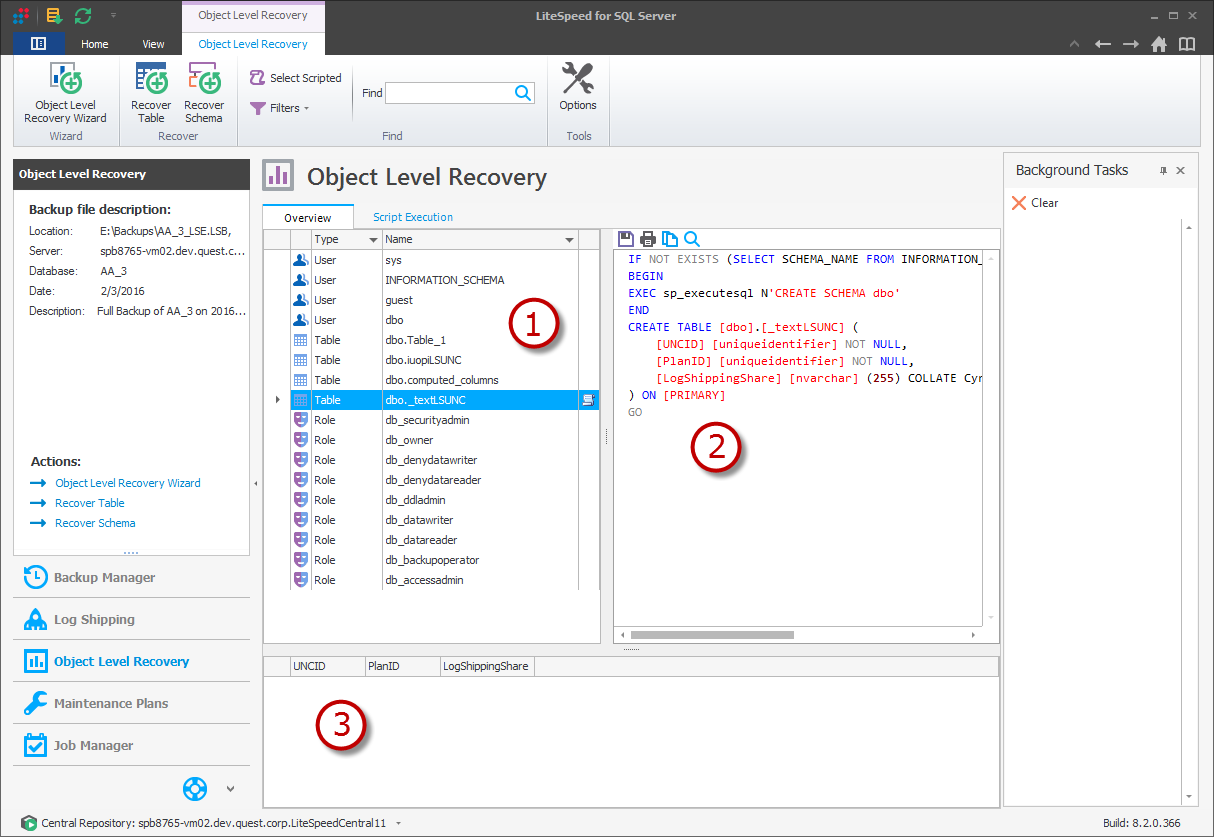

Review the Backup File Contents
After you read the backup file, its contents appear in the Overview tab
The Overview tab has the following panes:
1. Objects Grid
The grid displays all of the restorable objects in backup file. You can filter the objects that appear in the list by selecting the appropriate options in the toolbar.
2. Script Preview
The script preview displays the DDL script. To script an object, right-click it in the objects grid and select Generate DDL Script.
For tables, you can also include constraints, indexes, and triggers in the script by selecting the appropriate options on the Object Level Recovery tab in Object Level Recovery options. You can script more than one object, and scripted objects have a small scroll icon beside them in the objects grid. To view all of the scripts in the script preview, click the Select Scripted button in the Object Level Recovery ribbon menu.
|
note: You can save, copy, print, and search the script in LiteSpeed, but you cannot edit or execute it in the script preview pane. |
3. Table Data Preview
The table data preview displays the contents of the table. To preview a table's data, right-click the table in the objects grid and select Preview Data. You can only preview the data of one table at a time, and the previewed table has a small chart icon beside it in the objects grid. A table that you preview and script has a small chart and scroll icon beside it.
|
Tip: For panes that have grids, you can sort, group, move, and remove the columns:
|
Restore Tables and Schemas
Restoring a table in the LiteSpeed UI Console restores the table's schema and data.
Tip: CTRL-click objects in the grid to select multiple objects for recovery.
To restore tables
-
Select a table in the objects grid and click Recover Table.
-
Complete the wizard. Review the following for additional information:
Database
Select the database.
LiteSpeed will not overwrite an existing table. If you select the same server instance and database as the original table, you must use a different table name.
Ship directory
Select the ship directory.
Enter the path or click
to navigate to it.
This option stores the object at the directory but does not restore it.
Use table, constraint and index name prefix
Enter the prefix naming convention in the field provided. Select this option when choosing to use prefix naming conventions with tables, constraints, and index names.
Use table, constraint and index name suffix
Enter the suffix naming convention in the field provided. Select this option when choosing to use suffix naming conventions with tables, constraints, and index names. Drop table if it already exists Drops existing table in the target database before recovering the table from a backup. Bulk insert
Select this option to import data into a table using BCP for data recovery. It requires to use a temporary directory for temporary files.
The temporary directory is a Windows temp folder by default or you can specify your custom directory.
Temporary directory:
Enter the path or click
This option restores the table and is generally used when the default directory does not have enough free disk space.
NOTE: You can specify the default temp directory using the TempPath parameter in the [LiteSpeed] section of the LiteSpeedSettings.ini file. (Usually, C:\Documents and Settings\All Users\Application Data\Quest Software\LiteSpeed\SQL Server\LiteSpeedSettings.ini.)
Direct Mode
Select this option to import data directly into a table. This alternate data recovery mechanism eliminates the need for temp file space and uses BULK INSERT operations to recover the data.
Recovery in-memory tables as regular tables
Select to recover or restore memory-optimized tables as regular tables. Filegroup
Select the filegroup. This option associates the restored object with the filegroup.
Script options
Select these options to generate scripts for table-related objects and constraints:
- Script constraints except foreign keys - generate scripts for all constraints except for foreign keys
- Script indexes - generate scripts for indexes
- Script foreign keys - generate scripts for foreign keys
- Script triggers - generate script for triggers
- Script statistics - generate script for statistics
Advanced options
Bypass tail log processing is not selected by default.
Tip: In scenarios when you do not require any transaction log backups and the tail log, you can select to bypass tail log processing. Object Level Recovery operations may work much faster.
To restore schemas
Restore schemas can recover database objects - extended procedures, functions, partition functions, partition schemas, roles, rules, stored procedures, tables, memory optimized tables, triggers, types, users, views, indexed views, and XML schema collections.
-
Click and run the Object Level Recovery Wizard.
-
Select an object in the grid and click Recover Schema.
-
Complete the wizard. Review the following for additional information:
SQL Server
Select a server instance or click
Database
Select a database.
LiteSpeed will not overwrite an existing object.
Preview script
Select to display a preview of the selected script.
OK
Click OK to initiate the schema restore.
