Foglight Hybrid Cloud Manager 1.5 - User Guide (for Azure environments)

Report Tab

Foglight Hybrid Cloud Manager for Azure includes a report generation ability. This allows you to create reports using a set of predefined templates to report on the various aspects of your cloud environment. Foglight Hybrid Cloud Manager for Azure includes a collection of predefined report templates.

You can generate, copy, and edit reports using the Reports tab on the Report dashboard, or alternatively the Reports dashboard included with the Management Server.

Figure 22. Report dashboard

To access the Report dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Report in the actions bar.

For complete information about this tab, see the Managing Capacity in Virtual Environments User Guide. For more information about the Reports dashboard, see the Foglight User Help.

Available report templates

The following templates are available with Foglight Hybrid Cloud Manager for Azure.

Table 36. Report templates
Report Template Name
This template can be used to generate a report that…

Azure Resource Group Performance Report - Summary

Summarizes your Resource Group, so that you could know all Resource Group' performance.

Azure Storage Account Performance Report - Detail

Summarizes the capacity and performance details of the selected Storage Account.

Azure Tenant Performance Report - Summary

Summarizes your Tenant infrastructure, so that you could know your Tenant's performance.

Azure Virtual Machine Performance Report - Detail

Summarizes the capacity and performance details of the selected Virtual Machine.

Azure Virtual Machine Performance Report By Tenant - Summary

Summarizes the capacity and performance details of all Virtual Machines.

Cost - All Subscriptions Summary Report

Summarizes the cost for all subscriptions.

Cost - Single Subscription Cost Report

Summarizes the cost for select subscription.



Rule Configuration Tab

The Rule Configuration tab of the Cloud Manager dashboard contains links to rules and alarms tasks that you can use to manage Azure rules and alarms.

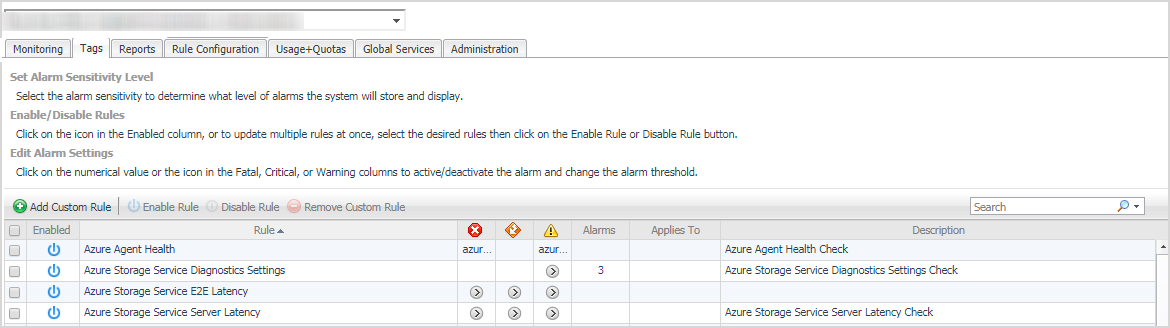

Figure 23. Rule Configuration dashboard

To access the Rule Configuration dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Rule Configuration in the actions bar.

For more information, see the following topics:

•
Rules view
•
Enabling/Disabling rule(s)
•
Adding a custom rule
•
Removing custom rule(s)

Rules view

By default, the following columns are displayed in the Rules view:

•
Enabled: Indicates if the rule is enabled or disabled . You can sort the list of rules by state, by clicking the Enabled column.
•
Rule: Contains the rule name. Click the rule name to start the workflow for viewing and editing rule details.
•
Fatal , Critical , and Warning thresholds (multiple-severity rules only):
•
For expressions that include one registry variable, these columns contain the current value of that variable. Click the value to edit it.
•
For expressions that include multiple registry variables, the column contains an icon . Clicking that icon shows the list of referenced registry variables and their values. Click a value to edit it.
•
For expressions that do not include any registry variables, this column contains an icon . Clicking that icon navigates to the Edit Rule dashboard.
•
For rule states that do not have a conditional expression defined, this column is empty.
•
Alarms: Contains the number of alarms (multiple-severity rules only) generated by the rule. Clicking that column shows a list of alarms indicating for each alarm its severity, when the alarm was generated, and the alarm message.
•
Applies to: Shows the object name that is applied to this custom rule.
•
Description: Contains the rule description.
