Identifying Dependency Map Elements

In a dependency map, some objects are represented with container tiles, others with single-object tiles or just icons. Dependencies between the objects in a map are illustrated with single-directional arrows.

Figure 41. Dependency map elements

The complexity of the information representing an object depends on its type and any dependencies it has with other objects in a monitored environment. Object dependencies are represented with arrow lines.

Every object is represented with an icon, representing its type. This allows you quickly recognize main elements in a dependency map.

Table 14. Object type icons
Cluster
Datastore
Datastore Cluster
ESX Host
Organization
Organization vDC
Provider vDC
Resource Pool
vApp
vCloud
Virtual Machine

Organization tile

The organization tile displays the levels of resource utilization (CPU, memory, and disk storage) for an entire organization. It also shows the organization’s alarm severity state. These tiles also contain one or more tiles representing organization vDCs associated with that organization.

Figure 42. Organization tile

Foglight™ for vCloud Director populates the organization tile using the values stored as metrics collected from monitored organizations.

Table 15. Organization tile
Data	Description	Metric
CPU	The amount of the organization’s CPU resources spent on executing system code and user programs.	VMVCloudOrganization cpuUsed
Memory	The amount of the organization’s memory resources that are currently in use.	VMVCloudOrganization memoryUsed
Storage	The amount of the organization’s disk resources that are currently in use.	VMVCloudOrganization storageUsed

Organization vDC tile

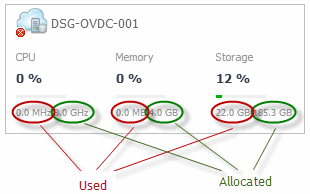

The organization vDC tile displays the levels of CPU, memory, and disk storage usage, and the amounts of allocated resources. It also shows the alarm severity state of the organization vDC.

Figure 43. Organization vDC tile

Foglight for VMware populates these tiles using the values stored as metrics collected from monitored organization vDCs.

Table 16. Organization vDC tile
Data		Description	Metric
CPU		The percentage of the organization vDC’s CPU resources spent on executing system code and user programs during the selected time period.	VMVCloudOrganizationVDC cpuUtilization
	Used	The amount of CPU resources spent on executing system code and user programs.	VMVCloudOrganizationVDC cpuUsed
	Allocated	The total amount of CPU resources allocated to the organization vDC.	VMVCloudOrganizationVDC cpuAllocated
Memory		The percentage of the organization vDC’s memory resources that are currently in use.	VMVCloudOrganizationVDC memoryUtilization
	Used	The amount of the organization vDC’s memory resources that are currently in use.	VMVCloudOrganizationVDC memoryUsed
	Allocated	The total amount of memory resources that are allocated to the organization vDC.	VMVCloudOrganizationVDC memoryAllocated
Storage		The percentage of the organization vDC’s disk resources that are currently in use.	VMVCloudOrganizationVDC storageUtilization
	Used	The amount of the organization vDC’s disk resources that are currently in use.	VMVCloudOrganizationVDC storageUsed
	Allocated	The total amount of disk resources that are allocated to the organization vDC.	VMVCloudOrganizationVDC storageAllocated

Provider vDC tiles

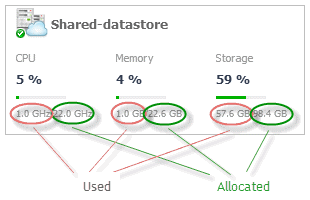

The provider vDC tile displays the percentages of resource utilization (CPU, memory, and disk storage) for a provider vDC, and its severity state. It also shows the current resource usage and the total amount of resources available to the provider vDC.

Figure 44. Provider vDC tile

Foglight for VMware populates these tiles using the values stored as metrics collected from monitored provider vDCs.

Table 17. Provider vDC tile
Data		Description	Metric
CPU		The percentage of the provider vDC’s CPU resources spent on executing system code and user programs during the selected time period.	VMVCloudProviderVDC cpuUtilization
	Allocated	The total amount of CPU resources available to the provider vDC.	VMVCloudProviderVDCcpuAllocated
	Used	The amount of CPU resources spent on executing system code and user programs.	VMVCloudProviderVDC cpuUsed
Memory		The percentage of the provider vDC’s memory resources that are currently in use.	VMVCloudProviderVDC memoryUtilization
	Allocated	The total amount of memory resources that are available to the provider vDC.	VMVCloudProviderVDC memoryAllocated
	Used	The amount of the provider vDC’s memory resources that are currently in use.	VMVCloudProviderVDC memoryUsed
Storage		The percentage of the provider vDC’s disk resources that are currently in use.	VMVCloudProviderVDC storageUtilization
	Allocated	The total amount of disk resources that are available to the provider vDC.	VMVCloudProviderVDC storageAllocated
	Used	The amount of the provider vDC’s disk resources that are currently in use.	VMVCloudProviderVDC storageUsed
