Foglight for vCloud Director 5.8.2 - User and Reference Guide

Getting Started Setting Up Monitoring Agents Investigating Resource Consumption Levels Investigating Object Dependencies Reference

Identifying Dependency Map Elements

In a dependency map, some objects are represented with container tiles, others with single-object tiles or just icons. Dependencies between the objects in a map are illustrated with single-directional arrows.

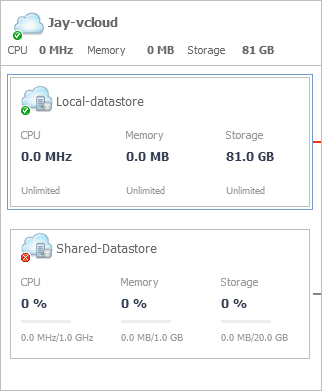

Figure 41. Dependency map elements

The complexity of the information representing an object depends on its type and any dependencies it has with other objects in a monitored environment. Object dependencies are represented with arrow lines.

Every object is represented with an icon, representing its type. This allows you quickly recognize main elements in a dependency map.


Table 14. Object type icons
Cluster

Datastore

Datastore Cluster

ESX Host

Organization

Organization vDC

Provider vDC

Resource Pool

vApp

vCloud

Virtual Machine

Organization tile

The organization tile displays the levels of resource utilization (CPU, memory, and disk storage) for an entire organization. It also shows the organization’s alarm severity state. These tiles also contain one or more tiles representing organization vDCs associated with that organization.

Figure 42. Organization tile

Foglight™ for vCloud Director populates the organization tile using the values stored as metrics collected from monitored organizations.


Table 15. Organization tile
Data
Description
Metric
CPU

The amount of the organization’s CPU resources spent on executing system code and user programs.

VMVCloudOrganization cpuUsed

Memory

The amount of the organization’s memory resources that are currently in use.

VMVCloudOrganization memoryUsed

Storage

The amount of the organization’s disk resources that are currently in use.

VMVCloudOrganization storageUsed

Organization vDC tile

The organization vDC tile displays the levels of CPU, memory, and disk storage usage, and the amounts of allocated resources. It also shows the alarm severity state of the organization vDC.

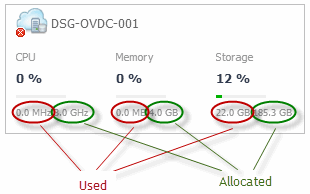

Figure 43. Organization vDC tile

Foglight for VMware populates these tiles using the values stored as metrics collected from monitored organization vDCs.


Table 16. Organization vDC tile
Data
Description
Metric
CPU

The percentage of the organization vDC’s CPU resources spent on executing system code and user programs during the selected time period.

VMVCloudOrganizationVDC cpuUtilization


Used

The amount of CPU resources spent on executing system code and user programs.

VMVCloudOrganizationVDC cpuUsed

Allocated

The total amount of CPU resources allocated to the organization vDC.

VMVCloudOrganizationVDC cpuAllocated

Memory

The percentage of the organization vDC’s memory resources that are currently in use.

VMVCloudOrganizationVDC memoryUtilization


Used

The amount of the organization vDC’s memory resources that are currently in use.

VMVCloudOrganizationVDC memoryUsed

Allocated

The total amount of memory resources that are allocated to the organization vDC.

VMVCloudOrganizationVDC memoryAllocated

Storage

The percentage of the organization vDC’s disk resources that are currently in use.

VMVCloudOrganizationVDC storageUtilization


Used

The amount of the organization vDC’s disk resources that are currently in use.

VMVCloudOrganizationVDC storageUsed

Allocated

The total amount of disk resources that are allocated to the organization vDC.

VMVCloudOrganizationVDC storageAllocated

Provider vDC tiles

The provider vDC tile displays the percentages of resource utilization (CPU, memory, and disk storage) for a provider vDC, and its severity state. It also shows the current resource usage and the total amount of resources available to the provider vDC.

Figure 44. Provider vDC tile

Foglight for VMware populates these tiles using the values stored as metrics collected from monitored provider vDCs.


Table 17. Provider vDC tile
Data
Description
Metric
CPU

The percentage of the provider vDC’s CPU resources spent on executing system code and user programs during the selected time period.

VMVCloudProviderVDC cpuUtilization


Allocated

The total amount of CPU resources available to the provider vDC.

VMVCloudProviderVDCcpuAllocated

Used

The amount of CPU resources spent on executing system code and user programs.

VMVCloudProviderVDC cpuUsed

Memory

The percentage of the provider vDC’s memory resources that are currently in use.

VMVCloudProviderVDC memoryUtilization


Allocated

The total amount of memory resources that are available to the provider vDC.

VMVCloudProviderVDC memoryAllocated

Used

The amount of the provider vDC’s memory resources that are currently in use.

VMVCloudProviderVDC memoryUsed

Storage

The percentage of the provider vDC’s disk resources that are currently in use.

VMVCloudProviderVDC storageUtilization


Allocated

The total amount of disk resources that are available to the provider vDC.

VMVCloudProviderVDC storageAllocated

Used

The amount of the provider vDC’s disk resources that are currently in use.

VMVCloudProviderVDC storageUsed
