Foglight for Oracle (Cartridge) 5.9.7.20 - User Guide

Installing and Configuring Agents Using Foglight for Oracle
Viewing the Databases Dashboard Assigning Instances to Users Selecting an Instance to Monitor Foglight for Oracle Overview Dashboard Overview view Advisories view SQL Performance Investigator (SQL PI) Oracle Activity Drilldown Pluggable Databases Drilldown Storage Drilldown Reviewing Configuration Settings Reviewing the Alert Log Reviewing Monitored Data Guard Environments Reviewing ASM Instances Reviewing Exadata-related Information
Administering Foglight for Oracle Reporting Reference Glossary

Defining Data Collection and Storage Options

The Foglight for Oracle agent collects and stores data at all times, even when the browser window that displays the data is not active. Use the Collections view in the Databases Administration dashboard to specify:

The available collection frequencies, which can be selected from the field The selected agent's current collection frequency is, are:

The Collections table contains the following columns.

Table 30. Collections

Defines whether the selected collections are sampled and stored.

The name of the collection. This list is sorted in alphabetical order.

Used for defining the collection interval, in seconds, in offline mode (for example: 300).

Offline frequency refers to the longest interval possible for sampling the monitored instance.

Used for defining the collection interval, in seconds, in online mode (for example: 60).

Used for defining the collection interval, in seconds, in real-time mode (for example: 20).

Only one collection can be sampled at real-time frequency at any given moment.

The amount of time, in seconds, that elapses before the query times out.

2
Click Edit.
8
Click Set to apply these settings or Cancel to reject them.

Customizing Alarms for Foglight for Oracle Rules

Many Foglight for Oracle multiple-severity rules trigger alarms. To improve your monitoring experience, you can customize when alarms are triggered and whether they are reported. You can also set up email notifications.

This section covers the following topics:

Introducing the Alarms View

The Alarms view enables you to modify global settings and agent-specific settings for alarms.

2
Click Alarms.

Setting and Modifying Alarm Sensitivity Levels

Foglight for Oracle has three sensitivity levels that control which alarms are reported:

Essential — Enables only the most important alarms.
Normal — Enables a selection of alarms from different rule categories, including all Essential alarms.
Tuning — Enables all alarms.

You can change the sensitivity level assigned to each agent. If a sensitivity level does not include all the alarms you want to track or includes too many alarms, you can view a list of multiple-severity rules and modify the sensitivity level that is mapped to each severity.

Changes made to a sensitivity level affect all agents that are assigned that sensitivity level. If you want to enable or disable alarms for the selected agents, see Enabling or disabling alarms for selected agents .

Each agent has its own sensitivity level setting. The default is Normal.

1
In the Alarms view, click the Sensitivity Level tab.
3
Click Save.

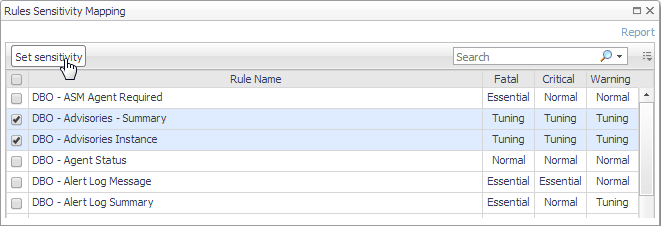

You can view a list of multiple severity rules to see which severities are assigned to which sensitivity level. If desired, you can change the assignments. Changes to sensitivity levels affect all agents.

1
In the Alarms view, click the Sensitivity Level tab.
2
Click Define sensitivity level.
3
If you want a record of the existing settings, click View as PDF and export the settings to a PDF file.
6
Click Set.
