Heat Map Analytics

Heat Map is a two-dimensional representation of data in which values are represented by colors. Showing collected metrics with elaborate heat maps allows you to understand complex data sets and the monitored NetVault environment well. Heat maps will be refreshed automatically when you change either of the following fields:

Topology Type: Indicates the monitored topology object, including Backup Server, Backup Client, Device Library, and Job.
Size Metric: Populates a rectangle based upon the selected metrics. For example, if you select Data Stored from the Size Metric drop-down list, the rectangle area will be populated based on the data stored in the topology object.
Rendering related metrics: For example, if you select Space Available and Red to Green, the rectangle of the topology object that has more available spaces will be rendered in red.
Color Pattern: Offers two patterns, Red to Green (larger value shows in red) or Green to Red (larger value shows in green).

Figure 2 shows an example of heat map. This sample diagram represents the NVBU-PROD-NV12_BETA has the maximum amounts of devices and remaining spaces while NVBU-WIN-NNJ9 has the minimum amount. If you switch the Color Pattern, then NVBU-PROD-NV12_BETA will turn to green and NVBU-WIN-NNJ9 will show in red.

Figure 2. Sample Heat Map

Scatter Plot Analytics

Scatter Plot is used to display values in points using two variables for a set of data. The points is color-coded also, Color Metric can be used to display one additional variable. The points on the chart will be refreshed automatically when you change either of the following fields:

Topology Type: Indicates the monitored topology object, including Backup Server, Backup Client, Device Library, and Job.
X Axis: Indicates which metrics will be plotted on X axis.
Y Axis: Indicates which metrics will be plotted on Y axis.
Rendering related metrics: For example, if you select Space Available and Red to Green, the rectangle of the topology object that has more available spaces will be rendered in red.
Color Pattern: Offers two patterns, Red to Green (larger value shows in red) or Green to Red (larger value shows in green).

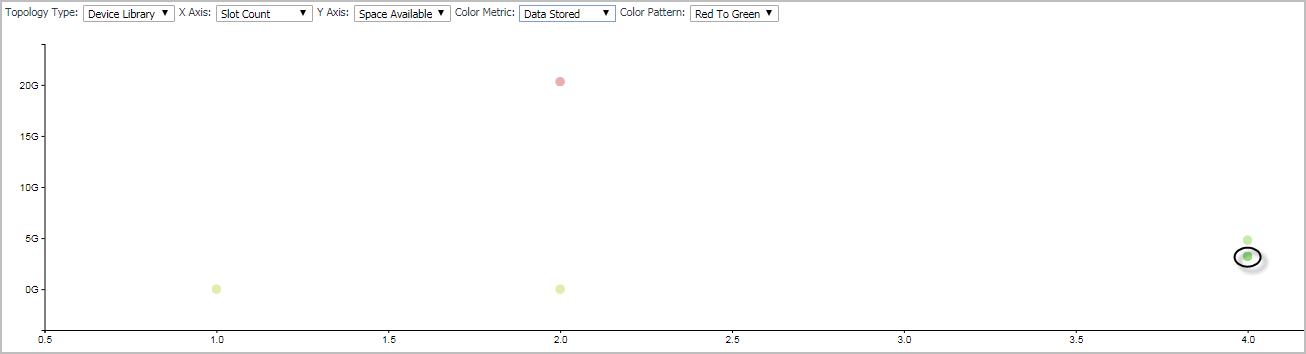

Figure 3 shows an example of Scatter Plot analytics. The green point on lower-bottom represents the following: its Slot Count is 4, its Space Available is less than 5G, and it has the minimum amount of data stored as this point shows in green.

Recommended additional reading

As tasks on the Report dashboard and the Administration dashboard are commonly used throughout Foglight and FVE products, Quest recommends that you read the following guides to understand both dashboards and the relevant tasks.

Chapter “Explore the Agent Status dashboard in the Foglight Administration and Configuration Guide.
Chapter “Reporting on Your Enterprise” in the Foglight User Guide.

In addition to the above guides, Quest also recommends that you read through the Quest NetVault Backup Administrator’s Guide, to get a comprehensive understanding about Quest NetVault Backup.
