Creating PowerVM HMC agents

When you install Foglight for Infrastructure, you can create PowerVM HMC Agents to collect performance information about your PowerVM environment. PowerVM HMC Agents collect performance information about your PowerVM environment. Each PowerVM HMC Agent monitors an HMC instance. You can create one or more PowerVM HMC Agent instances, as required.

Before you create a PowerVM HMC Agent instance, you must ensure that Foglight for Infrastructure is installed on the Management Server, and that the Host Agents package containing the PowerVM HMC Agent is deployed to the desired Agent Manager. For more information about installing Foglight for Infrastructure on the Management Server and deploying the Host Agents package, see your Foglight for Infrastructure documentation. For general instructions on how to install a cartridge or deploy an agent package, see the Foglight Administration and Configuration Help.

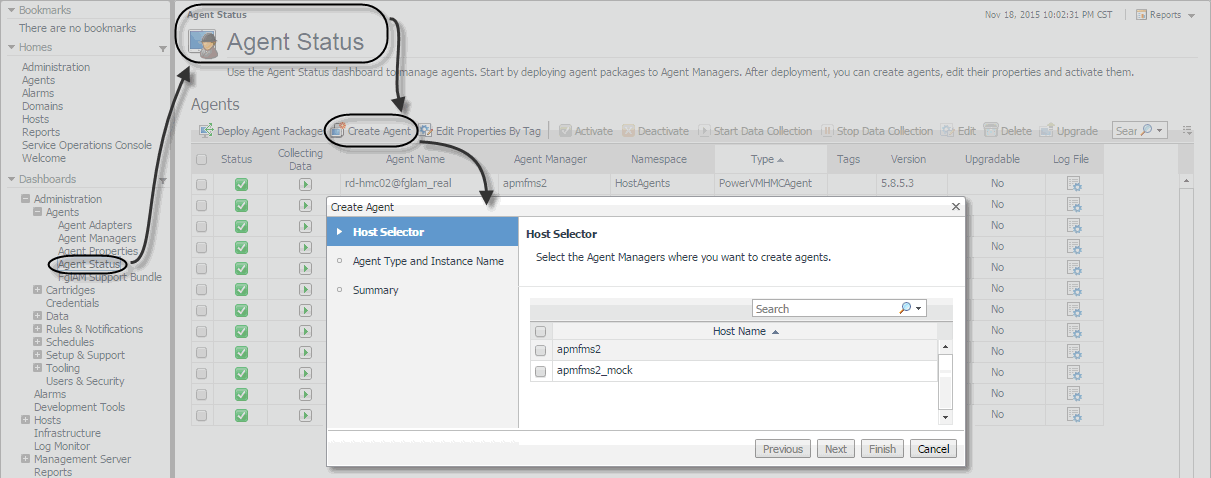

Create PowerVM HMC Agent instance by running the Create Agent wizard. This wizard is accessible from the Agent Status dashboard. To access this dashboard, on the navigation panel, under Dashboards, choose Administration > Agents > Agent Status. For complete information about the Agent Status dashboard and the Create Agent wizard, see the Foglight Administration and Configuration Help.

Reviewing and editing PowerVM HMC agent properties

PowerVM HMC Agents collect data from your monitored PowerVM® infrastructure and send it to the Management Server. They keep track of resource utilization metrics and alerts you when applicable pre-defined thresholds are reached.

When an agent connects to Foglight™, it is provided with sets of properties that it uses to configure its correct running state. Each agent is provided with a combination of two types of properties: agent properties and shareable properties. Default versions of these properties are installed with Foglight for PowerVM. You can review and edit PowerVM HMC Agent properties using the Agent Status dashboard.

2
On the navigation panel, under Dashboards, choose Administration > Agents > Agent Status.
4
Click Edit, and from the menu that appears, choose Edit Properties.
5
Click Modify the private properties for this agent.

Configuring HMC Settings

The HMC Settings specify general settings the agent needs to connect to the monitored environment.

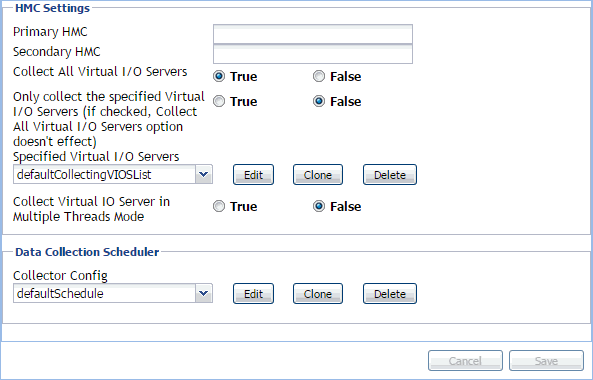

Figure 5. HMC Settings

Primary HMC: The host name or IP address of the primary HMC the PowerVM Agent connects to for collecting data.
Secondary HMC: The host name or IP address of the secondary HMC the PowerVM Agent connects to for collecting data when the primary HMC is not connectable
Collect All Virtual I/O Servers: Indicates if the agent collects information about all monitored PowerVM virtual I/O servers (True), or only about those listed under Specified Virtual I/O Servers (False).
Only collect the specified Virtual I/O Servers: Indicates if the agent only collects information about PowerVM virtual I/O servers listed under Specified Virtual I/O Servers (True), or about all monitored PowerVM virtual I/O servers (False). If set to True, it overrides the Collect All Virtual I/O Servers property.
Specified Virtual I/O Servers: A list indicating which PowerVM virtual I/O servers to monitor. The settings in this list take place when Only collect the specified Virtual I/O Servers is set to True.
Virtual I/O Server Partition Name: The name of the PowerVM virtual I/O server partition.
Enable: Indicates whether to monitor the listed PowerVM VIOS. If selected, the PowerVM VIOS is monitored. If not selected, the PowerVM VIOS is not monitored.
Collect Virtual IO Server in Multiple Threads Mode: Indicates if the data collection runs with a single thread (False), or multiple threads (True). Running a multi-thread data collection allows the data collection process to run faster, but can cause a higher load on the PowerVM Virtual I/O Server. Since a VIOS has a role of an I/O bus in your monitored system, selecting this option is configurable, allowing you to select a desired type of collection, without compromising your overall system performance.

Configuring Data Collection Scheduler properties

The Data Collection Scheduled properties allow you to adjust the frequency at which the PowerVM HMC Agent collects data from the monitored system.

Collector Config: A list identifying the data collectors the agent uses. Each entry in the list includes the following columns, allowing you to adjust the data collection settings for each individual collector:
Collector Name: The name of the collector: Essential Collection, Resource Collection (Resource, Disk, Network), and Inventory Collection.
Default Collection Interval: The length of the default collection interval.
Time Unit: The time unit for measuring the default collection interval: milliseconds, seconds, minutes, hours, or days.
Fast-Mode Collection Interval: The length of the collection interval when the agent is running in fast mode.
Fast-Mode Time Unit: The time unit of the collection interval when the agent is running in fast mode.
Fast-Mode Max Count: The maximum count of entries when the agent is running in fast mode.
