Clusters view

The Clusters view is a tree view. It lists the clusters that exist in your environment and shows their state.

This view appears in the Quick-View on the left when you select the Clusters tile in the Virtual Environment view.

Figure 16. Clusters view

Selecting the All Clusters node displays overall resource utilization for all clusters in your integrated system and the elements that consume the highest amount of system resources in the Cluster Summary (All Clusters) view on the right. Similarly, selecting a cluster node shows cluster-specific metrics in the Cluster Summary view on the right.

Alarm severity. The state of the most recent alarm raised against the associated the cluster.
All Clusters. A parent node for the cluster object instances that appear in this view.
Cluster. The cluster name.

Drill down on:

Summary - All Clusters view

The Summary - All Clusters view displays overall resource utilization information for a group of clusters, and shows the elements that consume the highest amount of system resources.

This view appears in the Quick-View on the left when you select All Clusters in the Clusters view.

This view is made up of the following embedded views:

Table 12. Alarms

Lists the alarms generated against the monitored system.

Alarm Message. An explanation about why the alarm occurred.
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.
Time. The time at which the alarm was generated.

Drill down on:

Severity. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight Evolve Cloud, see the Foglight Evolve Cloud User Help.
Figure 17. Alarm dialog box
Time. Links to the Cluster Summary view.

Shows the top three clusters with the highest average CPU utilization.

Clusters. The name of the clusters that are the top three CPU utilization.
CPU Utilization. The total percentage of CPU utilization the top three CPU consumers spend on executing system code and user programs, during the selected time range.

Drill down on:

CPU Utilization (in the graph). Displays the Top Clusters - CPU Utilization dialog box.

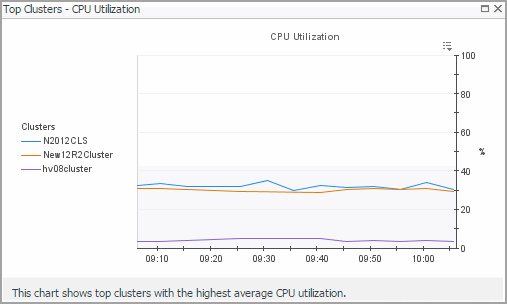

Figure 18. Top Clusters - CPU Utilization dialog box

Shows the top three clusters with the highest average disk utilization.

Clusters. The name of the clusters that are the top three disk utilization.
Disk Transfer Rate. The rate at which the top three disk consumers read or write data to the disk during the selected time range.

Drill down on:

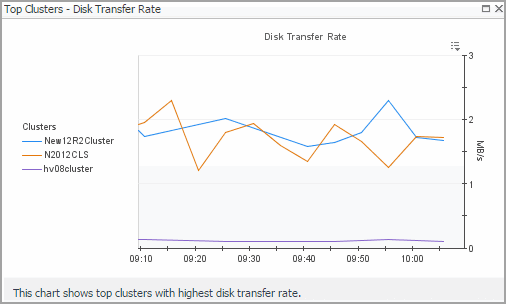

Disk Transfer Rate (in the graph). Displays the Top Clusters - Disk Transfer Rate dialog box.

Shows the top three clusters with the highest average memory utilization.

Clusters. The name of the cluster that are the top three memory consumers.
Memory Consumed. The amount of memory the top three memory consumers use during the selected time range.

Drill down on:

Memory Consumed. Displays the Top Clusters - Memory Consumed dialog box.
Figure 20. Top Clusters - Memory Consumed dialog box

Shows the top three clusters that are consuming most network bandwidth.

Clusters. The name of the cluster that are the top three network consumers.
Network Transfer Rate. The rate at which the top three network consumers transfer data to or from the network during the selected time range.

Drill down on:

Network Transfer Rate. Displays the Top Clusters - Network Transfer Rate dialog box.

Cluster Summary view

The Cluster Summary view shows the overall resource utilization and the amounts of system resource consumption for a server cluster.

This view appears in the Quick-View on the left when you select a cluster in the Clusters view.

Figure 22. Cluster Summary view

This view is made up of the following embedded views:

Table 17. Alarms

Lists the alarms generated against the selected cluster.

Alarm Message. An explanation about why the alarm occurred.
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.
Time. The time at which the alarm was generated.

Drill down on:

Alarm Message, Severity, or Time. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight Evolve Cloud, see the Foglight Evolve Cloud User Help.
Figure 23. Alarm dialog box
Table 18. Related Items

Shows the numbers and states of the cluster, servers, and virtual machines, all related to the selected cluster.

Cluster. The name of the selected cluster, followed by the counts of all alarms associated with the cluster, broken down by the alarm state (Normal, Warning, Critical, Fatal).
Server. The number of servers that belong to the selected cluster, followed by the counts of all alarms associated with those servers, broken down by the alarm state (Normal, Warning, Critical, Fatal).
Virtual machines. The number of the virtual machines that are running on the physical servers that belong to the selected cluster, followed by the counts of all alarms generated against those virtual machines, broken down by the alarm state (Normal, Warning, Critical, Fatal).

Drill down on:

Alarm count. Displays a dwell that shows the objects against which alarms are generated.
Alarm count or Cluster. Displays the Clusters dwell, showing the name and state of the selected cluster.
Figure 25. Clusters dwell
Server. Displays the Servers dwell, showing the names and states of the servers that belong to the selected cluster.
Virtual Machines. Displays the Virtual Machines dwell, showing the names and states of the virtual machines that are running on the physical servers that belong to the selected cluster.

Shows the resource consumption for the selected cluster, broken down into four simple views.

CPU Load. The current percentage of the CPU load, used by the servers that belong to the selected cluster to execute system code and user programs, based on the combined CPU capacity.
CPU Utilization, % Used. The percentage of the CPU utilization used by the servers that belong to the selected cluster to execute system code and user programs, during the selected time period.
Disk I/O. The current disk I/O rate for all servers that belong to the selected cluster.
Disk Utilization, Read Rate. The rate at which all servers that belong to the cluster read data from the disk, during the selected time period.
Disk Utilization, Write Rate. The rate at which data is written to the disks of all servers that belong to the cluster, during the selected time period.
Memory Usage. The current percentage of the average memory usage by all servers that belong to the selected cluster, based on the total memory capacity.
Memory Utilization, % Used. The percentage of the available memory that is used by all servers that belong to the cluster during the selected time period.
Network I/O. The current rate at which data is transferred from all servers that belong to the selected cluster to and from the network.
Network Utilization, Receive Rate. The rate at which all servers that belong to the selected cluster receive data from the network, during the selected time period.
Network Utilization, Send Rate. The rate at which data is transferred from all servers that belong to the selected cluster to the network, during the selected time period.

Drill down on:

CPU Load spinner. Displays the CPU Load dialog box.
Figure 26. CPU Load dialog box

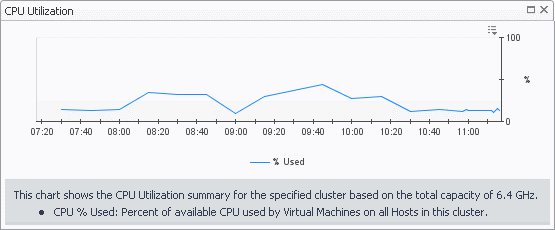

CPU Utilization graph. Displays the CPU Utilization dialog box.
Figure 27. CPU Utilization dialog box

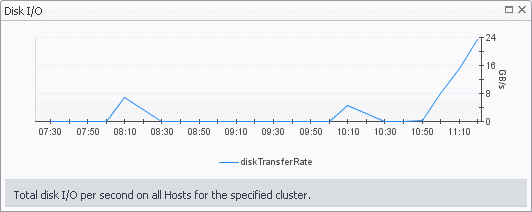

Disk I/O spinner. Displays the Disk I/O dialog box.
Figure 28. Disk I/O dialog box

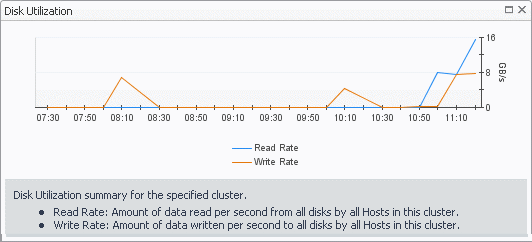

Disk Utilization graph. Displays the Disk Utilization dialog box.
Figure 29. Disk Utilization dialog box
Memory Usage spinner. Displays the Memory Usage dialog box.
Figure 30. Memory Usage dialog box

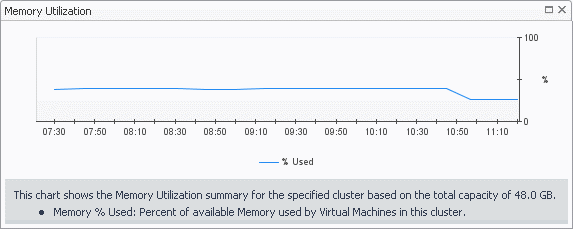

Memory Utilization graph. Displays the Memory Utilization dialog box.
Figure 31. Memory Utilization dialog box

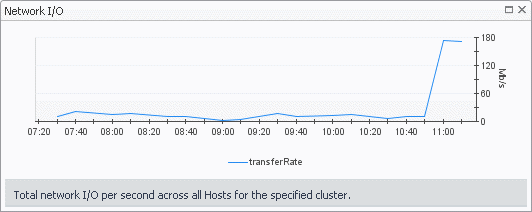

Network I/O spinner. Displays the Network I/O dialog box.
Figure 32. Network I/O dialog box

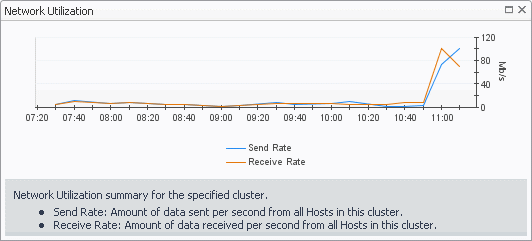

Network Utilization graph. Displays the Network Utilization dialog box.
Figure 33. Network Utilization dialog box

Server monitoring

A Hyper-V server is a physical component required to begin building a virtual infrastructure. Hyper-V servers provide hypervisor-based architecture for controlling and managing resources for the virtual machines that run on it. Virtual machines running on a Hyper-V server share the server’s resources.

To review data collected about a specific server or all servers, make your selection in the Quick-View.
