Domain Controller views
The following views are available to monitor the health of your Active Directory domain controllers:

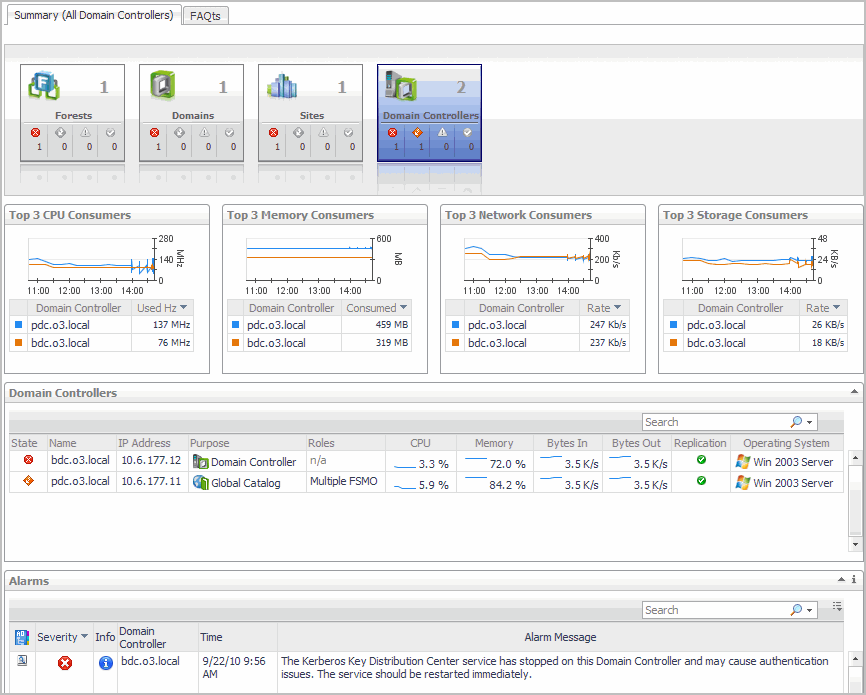

Domain Controllers Environment Summary (All DCs) view
A domain controller tile displays the following information:
icon in the lower left corner indicates that the DC is a virtual machine that is being monitored by Foglight for VMWare or Foglight for Hyper-V. In addition, the domain controller tile is outlined in blue when it is a virtual machine that is being monitored by one of these cartridges.|
NOTE: If you would prefer to view a list of DCs, instead of tiles for each DC, select Toggle View. You can then use the search controls to the right to filter your list of DCs. |
|
1 |
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Environment. |
|
2 |
From the Monitoring tab, select the Domain Controllers tile. |
|
3 |
From the Object Tree view, select Summary. |
Domain Controller Environment Summary view
Figure 32. Domain Controller Environment Summary view
|
1 |
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Environment. |
|
2 |
From the Monitoring tab, select the Domain Controllers tile. |
|
3 |
Domain Controllers Explorer Summary (All DCs) view
|
1 |
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer. |
|
2 |
From the Active Directory Enterprise view (under Dashboards in the navigation panel), select the Domain Controllers object container. |
