Forests Explorer Summary (All Forests) view

The Forests Explorer Summary (All Forests) view displays detailed resource metrics and information for the DCs in all of the monitored forests in your Active Directory® environment.

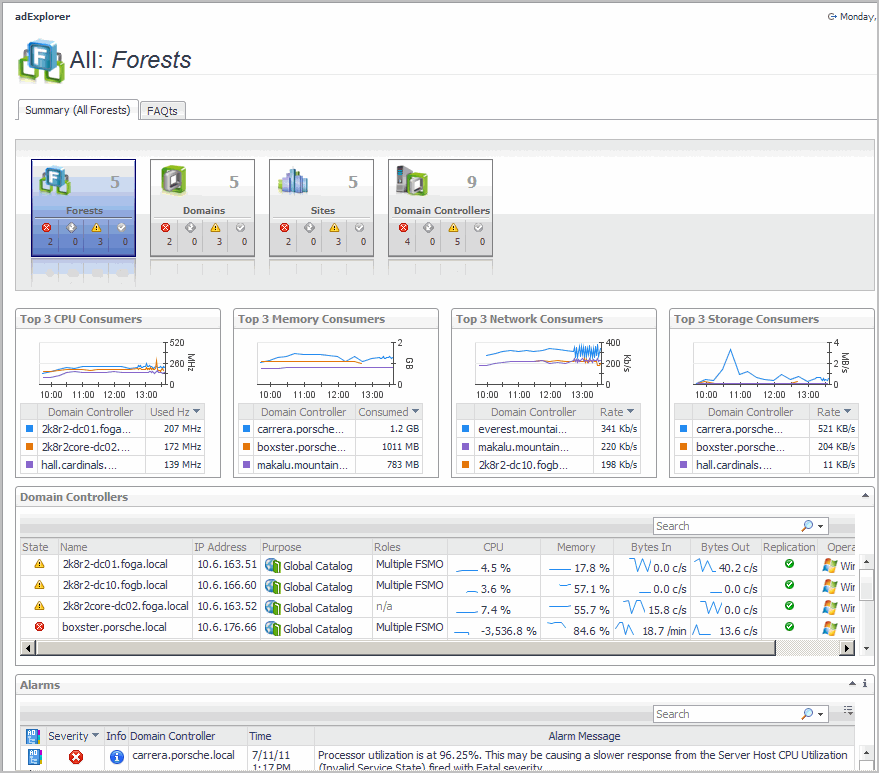

Figure 21. Forests Explorer Summary (All Forests) view

How to get here
1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
2
From the Active Directory Enterprise view (under Dashboards in the navigation panel), select the Forests object container.
The Forests Explorer Summary (All Forests) view appears in the Primary view on the Active Directory Explorer dashboard.

*
NOTE: You can also click the view in Explorer link on the Forests Environment Summary (All Forests) view.
Embedded views

In addition to the current forest alarms, this view is made up of the following embedded views:

•
Top 3 CPU Consumers view
•
Top 3 Memory Consumers view
•
Top 3 Network Consumers view
•
Top 3 Storage Consumers view
•
Domain Controllers view

Forest Explorer Summary view

The Forest Explorer Summary view displays detailed resource metrics and information about the DCs in the selected Active Directory® forest.

Figure 22. Forest Explorer Summary view

How to get here
1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
2
Use one of the following methods to display this view:
•
From the Active Directory Enterprise view (under Dashboards in the navigation panel), select an individual Forest object.
•
From the Forests tile (at the top of the Summary view), click the Forests icon, title or count. On the Forests Inventory dialog, select an individual Forest object.
The Forest Explorer Summary view appears in the Primary view on the Active Directory Explorer dashboard.

*
NOTE: You can also click the view in Explorer link on the Forest Environment Summary view for the selected forest.
Embedded views

In addition to the forest tile and current alarms, this view is made up of the following embedded views:

•
Top 3 DS Directory Reads/sec view
•
Top 3 LDAP Bind Times view
•
Top 3 Replication Queue Length view
•
Top 3 CPU Consumers view
•
Top 3 Memory Consumers view
•
Top 3 Network Consumers view
•
Top 3 Storage Consumers view
•
Domain Controllers view

Domain views

A Domain is a partition of the Active Directory® forest used to implement directory security and to manage resources.

The following views are available to monitor the health of your Active Directory domains:

•
Domains Environment Summary (All Domains) view
•
Domain Environment Summary view
•
Domains Explorer Summary (All Domains) view
•
Domain Explorer Summary view

Domains Environment Summary (All Domains) view

The Domains Environment Summary (All Domains) view displays a domain tile for each domain in your Active Directory® environment. These domain tiles display summary data about the different sites and DCs that reside in each domain, as well as the number of objects in each of the alarm states (fatal, critical and warning).

Figure 23. Domains Environment Summary (All Domains) view

A domain tile displays the following information:

•
name of the domain
•
number of users in the domain
•
number of domain alarms in each state
•
number of sites in the domain and number of sites in each alarm state
•
number of DCs in the domain and number of DCs in each alarm state
•
Domain Functional Level
How to get here
1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Environment.
2
From the Monitoring tab, select the Domains tile.
3
From the Object Tree view, select Summary.
The Domains Environment Summary (All Domains) view appears in the Object Summary view of the Quick View on the Active Directory Environment dashboard.
