Foglight Capacity Director 5.8.2 - User Guide

Using Foglight Capacity Director Getting Started Tab Current Capacity Tab Resource Utilization Tab Scenario Modeler Tab Server Purchase Tab Report Tab Performance Tuning Tab Changes and DRS Rules Tab Infrastructure Organizations Tab

Current Capacity Tab

The Current Capacity view displays information about the current capacity of a selected virtual center or datacenter. It includes the following three panes:

Planned Changes pane: Lists all valid planned changes before the deployment date, and provides the capability to create/edit/remove one or more planned changes.
VirtualCenter/Hosts Overview pane: Provides details about Current Capacity and Constraint, and allows you to select the Datastore information and Slot Size.
Clusters/Hosts pane: Consists of two tabs:

NOTE: Enabling or disabling the HA policy, which is configured in vCenter®, is only applicable for the Clusters tab in the Current Capacity view. If the HA policy is enabled for a cluster, Foglight Capacity Director calculates the cluster resources and reserve the cluster resources that are required to satisfy the HA policy. A green check mark appears in the HA column when the HA policy is enabled.

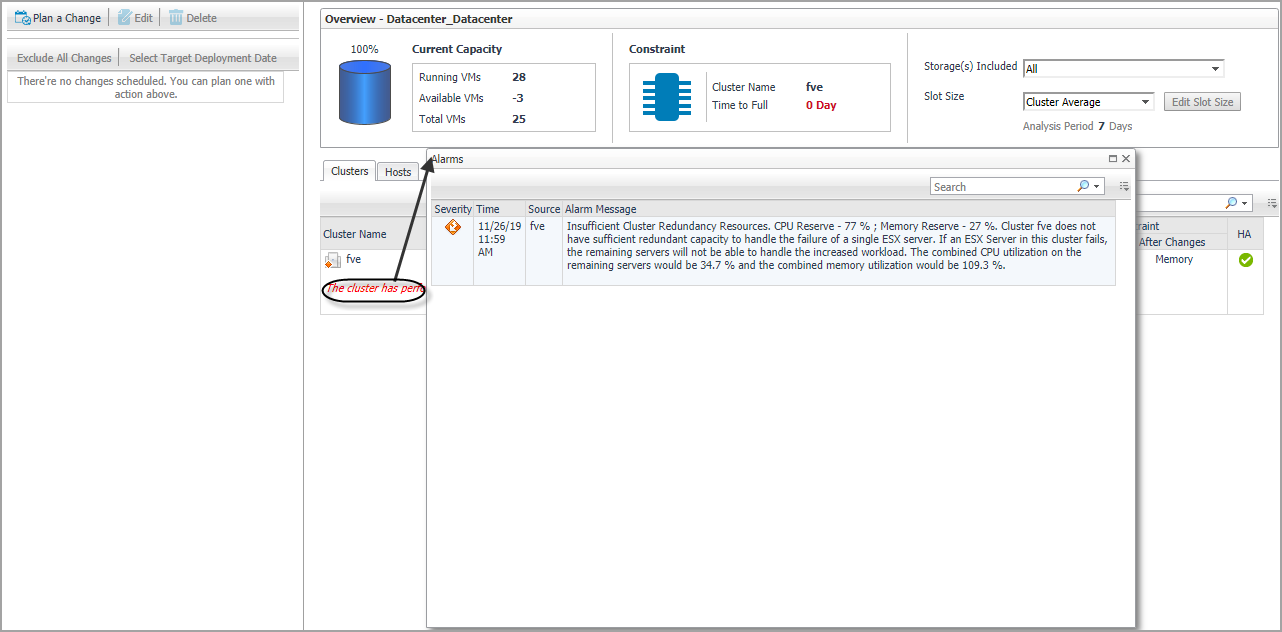

NOTE: When performance issues are prompted, click the message to open the Alarm view and check the detailed information.

Planned Changes pane

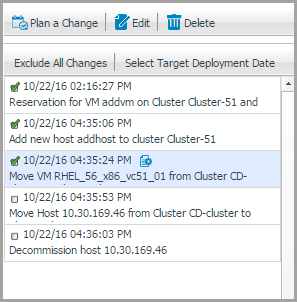

The Planned Changes pane on the left bottom of the Capacity Director dashboard offers the following menus:

Planned Changes table: Includes a list of valid planned changes sorted chronologically up to the deployment date, which unifies the user interface and enables you to observe the result expected after executing planned changes. If you set the value of Automated to Yes when creating a planned change with the Add/Move/Decommission wizard, an icon appears, indicating that the change is planned to be automatically deployed.
1
Click Select Target Deployment Date.
2
In the Select a Planned Deployment Date dialog box, click the date icon and select the deployment date as needed.
3
Click Select.

For details about how to edit or delete existing change(s), refer to Changes and DRS Rules Tab .

VirtualCenter/Hosts Overview pane

After selecting a virtual center or datacenter by using the Group selector located at the top of the dashboard, Foglight Capacity Director calculates the capacity of the selected center in the background and displays the following information on the VirtualCenter/Hosts Overview pane:

Current Capacity: Includes information about the following metrics: Running VMs, Available VMs, and Total VMs.
Constraint: Includes information about the following metrics: Cluster Name and Time to Full.

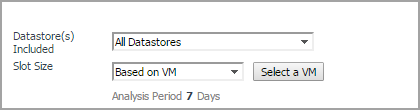

Datastore(s) Included: Allows you to select from the drop-down list the datastores that Foglight Capacity Director should use in calculations for future planned changes.
Slot Size: Allows you to select from the drop-down list the size of the virtual machine (the slot size) that Foglight Capacity Director should use in calculations for future planned changes.
NOTE: The Clusters/Hosts pane is automatically updated to reflect the selection made.

Calculating Slot Size Based on VM
