Global Search - Favorite Search Filters

Global Search - Favorite Search Filters [2018.0.2+]

Before you start

Ensure Global Search is enabled.

Using Favorite Filters

When viewing the filter options you will see a star symbol. Pressing this star will open the favorites options.

By default you will see a place to name a favorite, and the 'Save' button.

Naming and saving a favorite will store it in your favorites.
It will appear in a list on the same page.

Pressing a favorite name from the list, will switch to this saved filter.

Pressing the X to the right of the favorite, will delete this favorite.

          Fig. Your favorites, click one to use this filter

Viewing Preset Filters

To the left of the favorites star icon is the presets icon. Pressing this icon, will show the preset filters.

Preset filters are like favorites, but are available to all users with a given Role.

Preset filters are also available in Static evolve sites, where the Roles of the user generating the Static site, will control which filters are available to ALL users.
Note: Static sites themselves do not have Roles, hence the preset's availability.

Preset filters can only be added by an Administrator, and assigned to Roles

          Fig. Choosing to view Preset Filters

Sharing Favorite filters as Presets (Administrator option only)

In order to configure Presets, it is necessary first to be an Administrator.

1. Create a filter in the usual way.

2. Make the filter a favorite.

3. From the 'Page Picker', choose the 'Filters' Page.

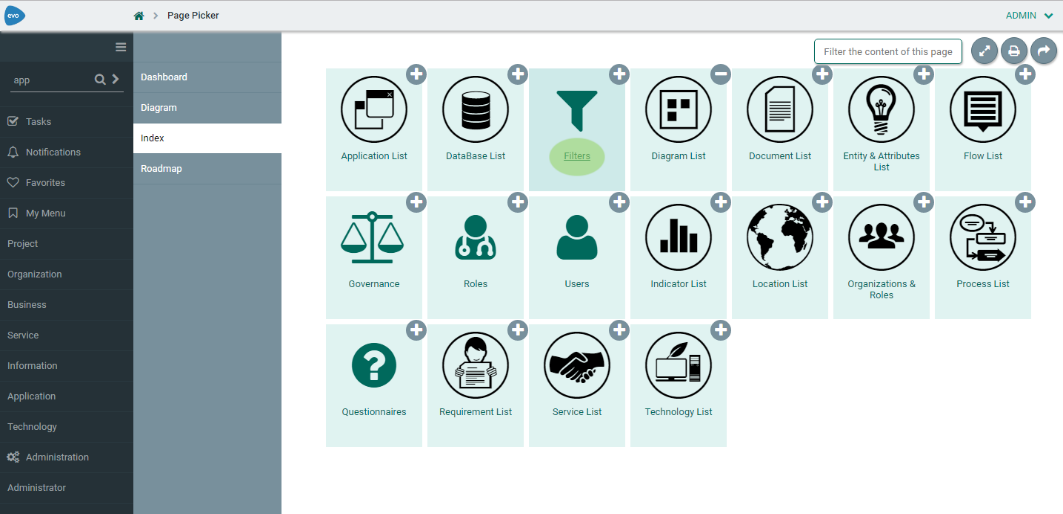

                    Fig. Configure Preset Filters with this Page

          Fig. Select your favorite and assign it a Role

1. From the list of favorites displayed, choose the edit button

2. Search for a role and associate it to the favorite

3. Save the association.

4. This favorite will now display as a Preset, to all users who share this Role

Remove a Preset (Administrator option only)

In order to remove a Presets, it is necessary first to be an Administrator.

1. From the 'Page Picker', choose the 'Filters' Page.

2. Locate the Preset you wish to remove.

3. Disassociate the Roles from the Preset.

4. It will return to being a favorite and can be deleted in the same way as other favorites.

 Related Topics

Global Search

Advanced Search

File Structure

File Structure

Overview of the folder structure of Evolve Web Platform

If you have configured your site to replicate content from one server to another, for example when using a load balancer, you may need to adjust your 'Copy' scripts for 2020.0.2 onwards. See the details below to determine what folders have moved.

Unlike many Windows applications, including 'Evolve Suite', 'Evolve Web Platform' is typically installed to the root of your C: drive.
While most of the files that are installed are not intended for user serviceability, there are a few folders that contain content, useful for administrators. Most significantly, folders containing customized content, search indexes, and generated content. All of which may be replicated to other servers, when load balancing.

Up to and including Evolve Web Platform 2020.0.1 the folders followed this pattern:

Folder

Description

c:\erwin\evolve            [or]
c:\casewise\evolve

Main installation folder

\CWSServices

Global Search services

\CWSServices\Data

Global Search encrypted audit records, for indexing (and sharing to other servers in a load balanced group)

\Data\Common

Shared web client content for all sites (javascript)

\Data\Sites\[sitename]

Specific content for the given dynamic site sitename
This would include any temporarily generated content, such as gallery content, images, user pictures, diagrams, hotspot maps etc.

\Data\Statics\[sitename]

Specific content for the given static site sitename
This would include all generated static site content.
The static content could also be used by a dynamic site, with static pages.

\Diagrammer

The new Web Modeler application service

\ElasticSearch

The elastic search runtimes to operate Global Search

\Elasticsearch\elasticsearch-6.4.0\data\nodes

The elastic search database files. If upgrading within the same Major release version, these files can be kept, to remove the need for a full search re-index. In large installations this can save many hours of re-indexing.

\JRE

The Java runtime to support ElasticSearch and other Java components

\node_modules

The node modules required to support Web Modeler

\Site\bin\sites

The site configuration files that describe site settings

\Site\bin\webDesigner\custom

The location for customization files for Evolve Web Platform

\Site\logs

The Web Designer, Diagram Designer, and Live log files for the platform

\WebRestAPI

The REST API that replaces Portal Web Services, and supports interaction over a http interface

What has changed from 2020.0.2 onwards, is the location of the static generated content, and any data related content for the dynamic site. The new structure is as follows:

Folder

Description

\Data\Sites\[sitename]

Site structure and design for the given dynamic site sitename
This NO LONGER includes any site content / data.

\Data\Statics\[sitename]

Site structure and design for the given static site sitename
This NO LONGER includes any site content / data.
The generated JSON files are NOT put here.

\Data\Data\[sitename]\live\

Content data for the site sitename
This includes images, gallery content, user pictures, temporary diagram images, hotspot maps etc.

\Data\Data\[sitename]\static\

Content data for the site sitename
This includes all generated static site content.
The static content could also be used by a dynamic site, with static pages.

 Related Topics

Global Search

Customization Explained

Required MIME Types

Required MIME Types

Your web server machine must be configured to understand some specific file formats used by Evolve.

The instructions below alter the settings for the Evolve application only. You can make these settings at a higher level, such as the Default Web Site, that will then ensure they are available to all applications below.

To specify the new MIME Types:

          1. On the web server machine, run Internet Information Services (IIS) Manager

          2. In IIS Manager’s left-hand pane, select the node for the Evolve application

          Ensure you have the central pane set to Features View, then double-click MIME Types in the IIS section

          The MIME Types settings are displayed

          3. Check the list of extensions that are already configured and see if any of the following are missing:

.eot

.json

.ttf

.woff

          4. For each extension that is not already configured, do the following:

i. Right-click in the central pane and select Add�

ii. Enter the following details, depending on which you need to add

File name extension

MIME Type

.eot

application/octet-stream

.json

application/json

.ttf

application/octet-stream

.woff

application/font-woff

iii. Click OK

          5. Close IIS Manager.
