Data Structure: allItems

Data Structure: allItems

{

project1: Array[4]

0 {

accessRights {

CanDelete: true

CanUpdate: true

}

associations { }

iName: null

iObjectAccessRights: Object

iObjectTypeScriptName: ""

iProperties: Object

label: "Object Name"

layoutName: "cwLayoutEmpty"

name: "Object Name"

nodeID: "project1"

objectTypeScriptName: "project"

object_id: 23

properties {

name: "Object Name"

}

}

1: Object

2: Object

3: Object

4: Object

project2: Array[17]

}

Data Structure: item

Data Structure: item

{

accessRights {

CanDelete: true

CanUpdate: true

}



Associations {

iName: null

}



iObjectAccessRights {

iObjectTypeScriptName: ""

}



iProperties {

label: "Object Label"

layoutName: "myLayout"

name: "Object Name"

nodeID: "diagram"

objectTypeScriptName: "diagram"

object_id: 1234

}



properties {

cwaveragerating: 0

exportflag: 0

name: "Object Name"

}

}

Data Structure: properties

Data Structure: properties

{

Behaviour {

AuthorizedLayouts: Array[0]

JSMethodName: "cwCostBenefit"

Name: "My Visualisation"

Options: Object

node_name: "My Visualisation"

}

LayoutName: "empty"

LayoutOptions {

DisplayPropertyScriptName: ""

HasLink: true

LayoutID: ""

}

NodeID: "project1"

ObjectTypeScriptName: "project"

PageName: "index_projects_cb"

PageType: 0

ParentNodeID: null

TabID: null

}

Get Ready For Development

Get Ready For Development

Before you begin your new project you should take some time to setup an environment where you can easier develop and debug your code. This will allow you to be able to view and insert breakpoints into source code through your browser’s debugging window during development, it will also ensure that any saved changes made are reflected in the browser by a simple refresh.

Set Evolve Debug Mode

          1. Load Evolve designer and open the model & site you’re currently using. Expand down to the Deployments node and select your machine name.

          2. In the list of properties on the right hand side, for the ‘JavaScript Mode’ select ‘debug’.

          3. Specify the path of the server where the debug files are located

Connect Debug Folders in IIS

This assumes a default Evolve installation, if you have made changes to the install location and IIS settings for Evolve please adapt the steps to your installation.

          1. Open Internet Information Services (IIS) manager from your windows programs

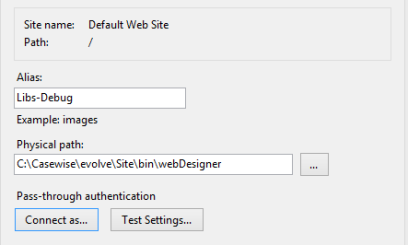

          2. Expand ‘Sites’, right click on ‘Default Web Site’ and select ‘Add Virtual Directory�’

Set the ‘Alias’ to Libs-Debug

Set the ‘Physical path’ to C:\Casewise\evolve\Site\bin\webDesigner

Set the ‘Connect as�’ to Application User (pass-through authentication)

Test your settings to make sure they’re correct

          3. Repeat step 2 using the following:

Set the Alias to Libs-Debug-External

Set the Physical path to C:\Casewise\evolve\Site\bin\webDesigner

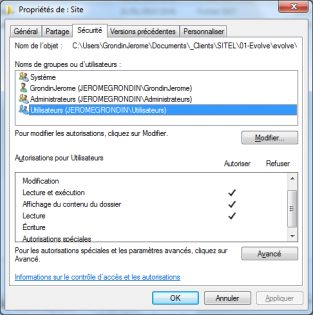

Grant the ‘Users’ group the following permissions on the C:\Casewise\evolve\Site folder
