Cannot Launch ControlPoint Online After Installation
Issue

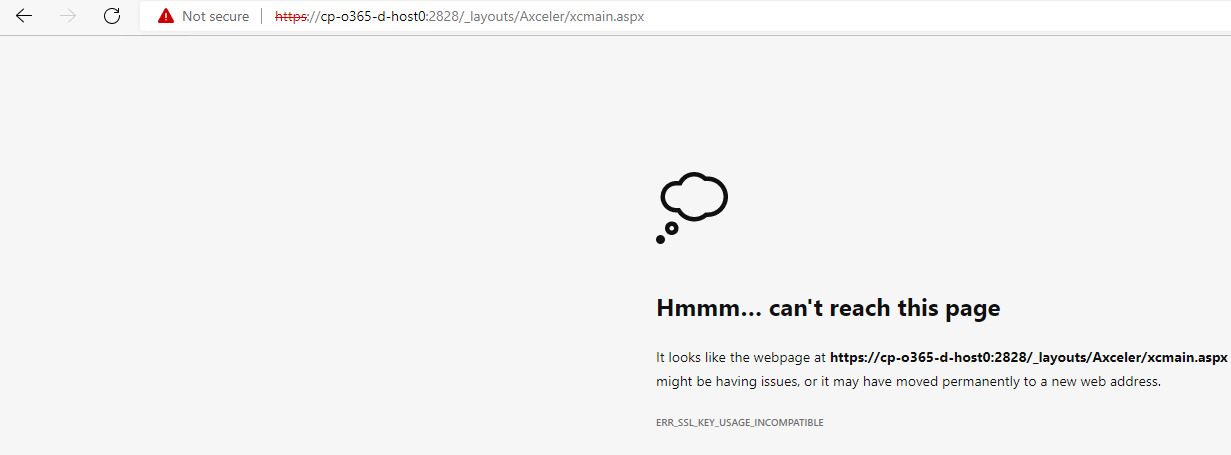

After installing ControlPoint Online, I cannot successfully launch the application.
Possible Reason
TLS 1.3 is enabled on the server. (TLS 1.3 is enabled by default on Windows Server 2022 but is not yet supported for O365).
Resolution

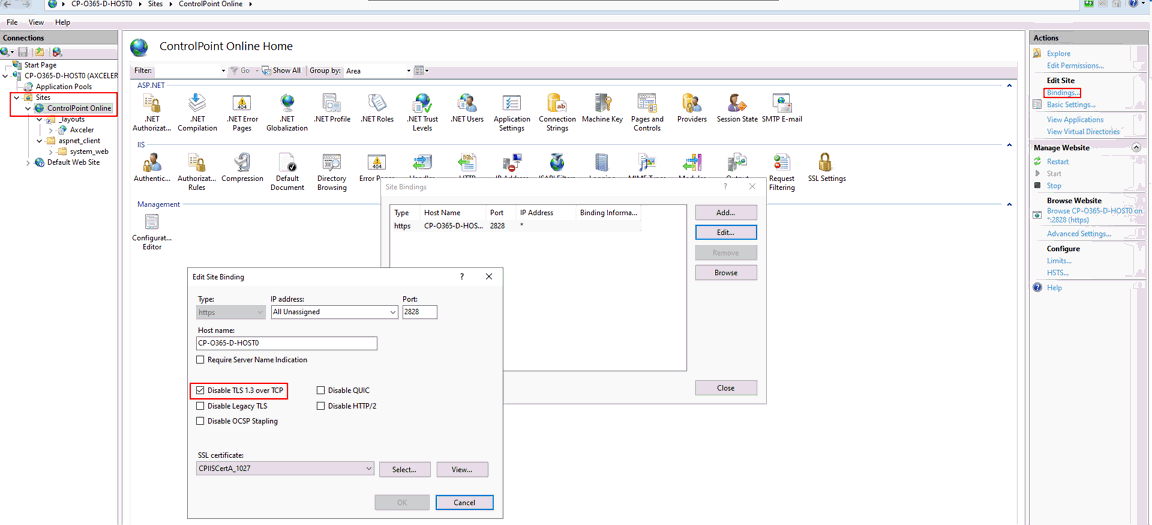

1.Launch IIS Manager
2.Navigate to Sites > ControlPoint Online
3.Click on Bindings then click on Edit to edit the site bindings
4.Check the Disable TLS 1.3 over TCP box then click OK.
5.Refresh your ControlPoint Online session.
