Archive Shuttle 11.5 - Installation Guide

Introduction

This guide contains detailed information on installing the Archive Shuttle Core Server and modules and includes common installation scenarios.

Key terms

The following table introduces the terminology that is used throughout Archive Shuttle documentation, videos, and the user interface.

TERM

ITEM + DESCRIPTION

Link

Enterprise Vault

A Link is a Vault Store

Exchange

A Link is an Exchange database

Office 365

A connection to Office 365

PST

A connection to a PST Output Area

Proofpoint

A connection to a Proofpoint output area

EAS

A connection to an EAS IIS Server

Metalogix

A connection to a Metalogix server

Container

Enterprise Vault

A Container is a Vault / Archive

Exchange

A Container is an Exchange mailbox

Office 365

A Container is an Office 365 mailbox or Personal Archive

PST

A container is a PST file

Proofpoint

A container currently has no applicable context

EAS

A container is an archive relating to a user.

Metalogix

A container is an archive

Item

Enterprise Vault

An Item is an archived Item.

Exchange

An Item is an item in the mailbox

Office 365

An Item is an item in the mailbox or personal archive

PST

An item is an item inside a PST file

Proofpoint

An item currently has no applicable context

EAS

An item is a message in the archive

Metalogix

An item is a message in the archive

Installing Archive Shuttle

This section describes how to install Archive Shuttle Core and the Archive Shuttle Modules.

info

NOTE: Some components of Archive Shuttle have the capability to perform work using MAPI or EWS. These are:

·Enterprise Vault collector module (which can collect shortcuts from mailboxes)

·Shortcut Processing module (which can fix shortcuts, or delete them)

The use of MAPI for these, and other activities, is deprecated and will be removed in a future release of the product.

Before starting the installation of Archive Shuttle, make sure that the following are available:

·Installation MSI files

·License file

·Login credentials for each of the servers where components are to be installed

info

NOTE: Ensure migration environments are deployed with EWS configurations.

Archive Shuttle licensing

Archive Shuttle uses a license file that is bound to the domain name where the Archive Shuttle Core Server is installed. A license file must be obtained that covers the features and user/data amounts that are to be migrated.

The following types of Archive Shuttle license are available:

·Production license: This license has no time limits associated with it and has the amount of user licenses / data extraction licenses that have been purchased.

·Trial license: This license is time limited and allows testing the full functionality of Archive Shuttle for a limited time only. When the license expires, the software continues to run in a restricted, read-only mode, which allows for many Archive Shuttle activities to be performed except export/import of data.

Installing Archive Shuttle license files

The license file has to be installed on the Archive Shuttle Core Server.

The license file is requested during the Archive Shuttle Core installation.

License file update

The Archive Shuttle license file needs to be updated if, for example, the license expires, or more data resp. users are required to be migrated. This section explains how to replace and update the license file.

Should an updated license file be required, please contact your Quest partner or representative to acquire the file.

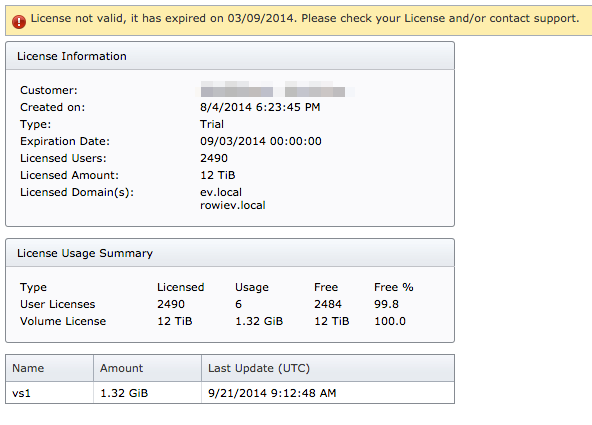

The following messages may be displayed on the System Health screen, tab Events:

License1

and on the License screen:

License2

To replace/update the license file, perform the following steps:

1.Obtain a new license.lic file from Quest and copy it to a temporary location on the Archive Shuttle server.

2.If the file is NOT called license.lic, rename it so that it has such name.

3.Copy the file to \Program Files\Quest\Archive Shuttle\WebServices\Bin (or an alternate location, if Archive Shuttle is installed on a different path or drive). The license also needs to be placed to \Program Files\Quest\Archive Shuttle\Service.

4.Confirm overwriting of the existing license.lic file.

5.Run an elevated command prompt.

6.Issue the command IISRESET.

Verify that the new license has taken effect by going to the License screen. You should not get any messages about the license being expired, or consumed. It should look like this:

License3
