Active Administrator 8.6.3 - Release Notes

Workstation logon audit agents requirements

The following table outlines the workstation logon audit agents requirements.


Table 9. Workstation logon audit agent hardware requirements
Requirement
Details

Processor

1 GHz or higher

Hard disk

100 MB

Memory

256 MB

Operating systems
•
Windows 8.1
•
Windows 10
•
Windows Server 2016
•
Windows Server 2019
•
Windows Server 2022

Web Console requirements

You can open Active Administrator Web Console on a variety of devices in the following browsers:

•
Microsoft Edge™ 98
•
Google Chrome™ 98
•
Mozilla® Firefox® 97

System Center requirements

The following versions of Microsoft® System Center Operations Manager are supported.

•
System Center 2016 Operations Manager

Port requirements


*
NOTE: All ports need to be open (incoming/outgoing) with the exception of the Workstation Logon agent which only needs to be outgoing on the workstation's firewall and incoming on the Active Administrator Server. Figure 1 displays an example of how communication is achieved through the specified ports.
Active Administrator Console
•
TCP 15600 for Active Administrator Foundation Service (AFS) communication with Active Administrator Server
•
TCP 8080 for communication with Active Administrator Web Server through the Web Console (internal, http)
•
TCP 9443 for communication with Active Administrator Web Server through the Web Console (external, https)
•
TCP 389 for communication with Active Directory on domain controllers
Active Administrator Server
•
TCP 15600 for communication with Active Administrator Foundation Service (AFS)
•
TCP 15601 incoming only communication from Workstation Logon agents
•
TCP 15602 for communication with Active Administrator Data Service (ADS)
•
TCP 15603 for communication with Active Directory Health Analyzer agents
•
TCP 15604 for communication with Azure Active Directory Connect agents
•
TCP 1433 for communication with SQL Server
•
TCP 8080 for communication as a Web Server for Active Administrator Web Consoles (internal, http)
•
TCP 9443 for communication as a Web Server for Active Administrator Web Consoles (external, https)
•
TCP 389 for communication with Active Directory on domain controllers
Active Administrator database server
•
TCP 1433 for SQL communication with Active Administrator Server and domain controllers with auditing agents
Domain controller with no installed agents
•
TCP 389 for communication with Active Administrator Server and Active Administrator Consoles
Domain controller with auditing agent
•
TCP 1433 for communication with SQL Server
Domain controller with Active Directory Health Analyzer agent
•
TCP 15602 for communication with Active Administrator Data Service (ADS)
•
TCP 15603 for communication through the Active Directory Health Analyzer agent
Domain controller with Azure Active Directory Connect agent
•
TCP 15604 for communication through the Azure Active Directory Connect agent
Member server with Active Directory Health Analyzer agent (pool agent)
•
TCP 15602 for communication with Active Administrator Data Service (ADS)
•
TCP 15603 for communication through the Active Directory Health Analyzer Agent
SMTP server
•
TCP 25 for sending email notifications via SMTP
Workstation with logon agent
•
TCP 15601 outgoing only for communication to Active Administrator Server through Workstation Logon agent

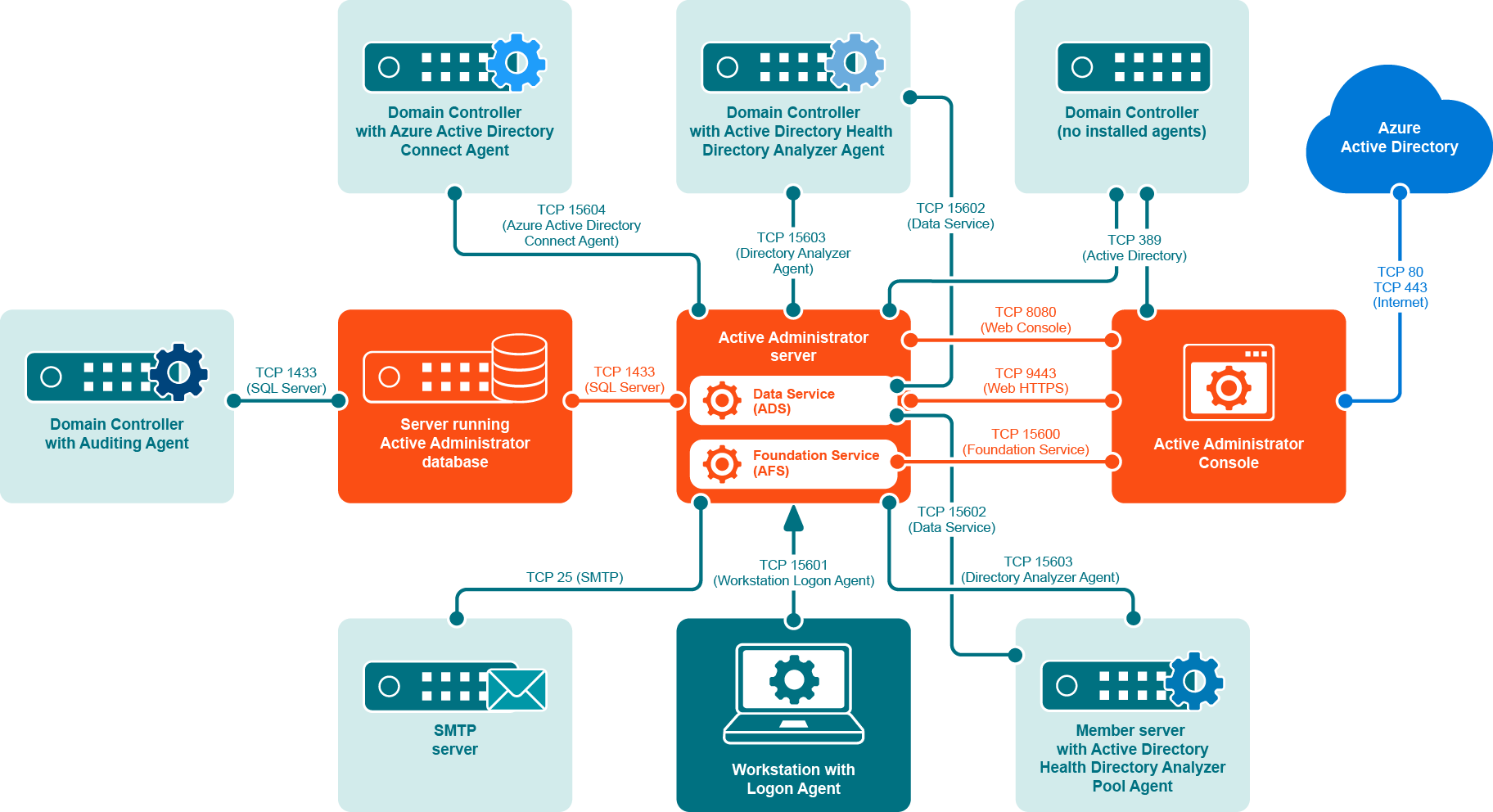

Figure 1. Port requirements example
