StoragePoint 6.3 - Advanced Installation Guide

StoragePoint Management Shell

StoragePoint Management Shell will make the StoragePoint-specific PowerShell cmdlets available. For more information on the cmdlets, please see the following page on the Metalogix website.

For Windows Server 2012 R2+, go to the start menu>Metalogix>StoragePoint>StoragePoint Management Shell.
clip0067

For Windows Server 2012+, go to Search and type StoragePoint Management Shell.
clip0068

Change StoragePoint Database Name or Server

This option allows the database to be renamed, or specify another server or StoragePoint database to be used.

For Windows Server 2012 R2+, go to the start menu>Metalogix>StoragePoint>Tools>Change StoragePoint Database Server.
clip0069

For Windows Server 2012 go to Search and type Change StoragePoint Database Server.
clip0070

info

NOTE: Using this on a farm that is already in use is similar to restoring a StoragePoint database. Some restoration of endpoint information will be needed, as well as a recall and externalization of all content that is under StoragePoint control.

Provide the name of the database server where the Metalogix StoragePoint configuration database will be installed. The database name and SA credentials can be modified if the currently logged on user does not have database and object create privileges on the specified SQL Server instance.

Click Test Connection to make sure the supplied values are valid.
Database creation login credentials

Click Next.

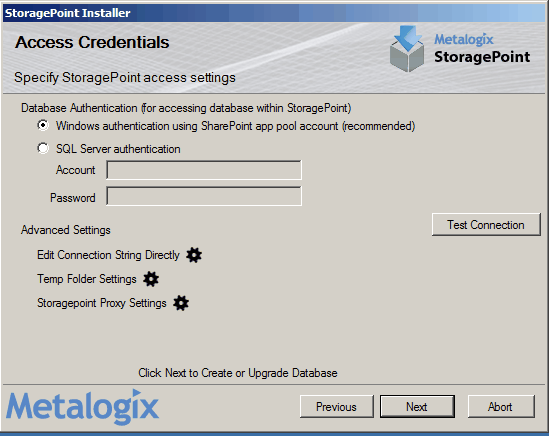

Provide the credentials that will be used to access the Metalogix StoragePoint configuration database. We recommend using the default setting, which will access the database via the app pool account(s) that the SharePoint web application(s) run under. Click Test Connection to test the connection based on selected authentication method.
clip0072

Advanced Settings

Edit Connection String Directly

Use the optional text filed to manually edit the SQL database connection string.
clip0073

Temp Folder Settings

Use the optional Temp Folder Settings to allocate a location and size limit for temporary storage of StoragePoint files. This setting can be edited on General Settings.
clip0074

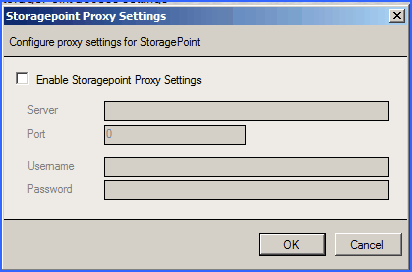

StoragePoint Proxy Settings

Use the optional StoragePoint Proxy Settings dialog to configure proxy settings for connecting to the license server. This setting can be edited on General Settings.
clip0075

Remove Metalogix StoragePoint

This section will walk through the process of removing an existing Metalogix StoragePoint installation. For installation steps, see the Metalogix StoragePoint Quick Start Guide.

caution

CAUTION: Removing Metalogix StoragePoint from a farm where content is externalized will leave that content irretrievable. Therefore, recall content for all active Storage Profiles and deactivate the EBS Provider, if applicable, before removing Metalogix StoragePoint from the SharePoint farm. See the Deactivating the EBS Provider section of the Reference Guide for more information.

info

NOTE: StoragePoint must be present to allow for continued management of Large File content through SharePoint. Please see Large File Support in the Reference Guide for more information.

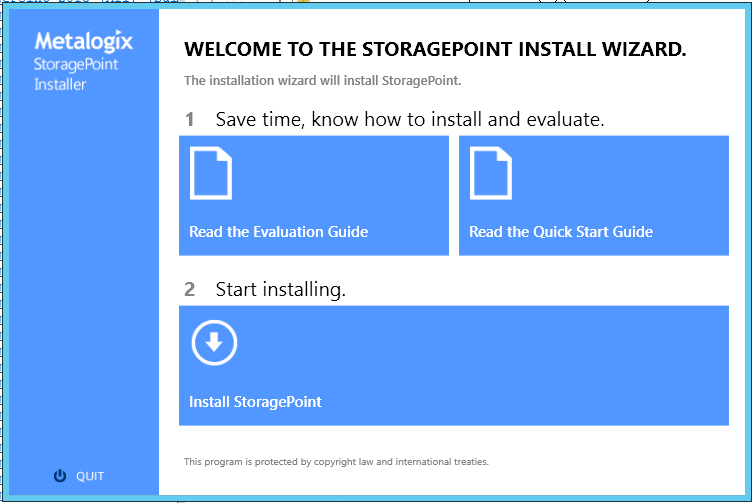

1.Launch the Metalogix StoragePoint Installer. Click Start Installing.
clip0076

2.Click Remove.
clip0077

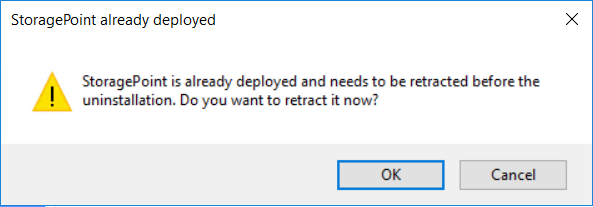

3.Click OK to begin the StoragePoint retraction.
clip0078

4.The configuration wizard opens. Click Next.
clip0032

5.The installer will now perform a series of system checks to make sure the system is ready for Metalogix StoragePoint to be modified. If all system checks pass click Next.
systemcheck

info

NOTE: If a system check fails it will be denoted with a red X and the install will not be able to continue until the issue(s) are resolved. The installer will also check whether the most recent supported SharePoint CU is installed.

info

NOTE: 'App Management service application is created.' and 'Some SP web application(s) are not provided with App Calatog Site' options are only displayed for SharePoint 2019 and Subscription Edition.

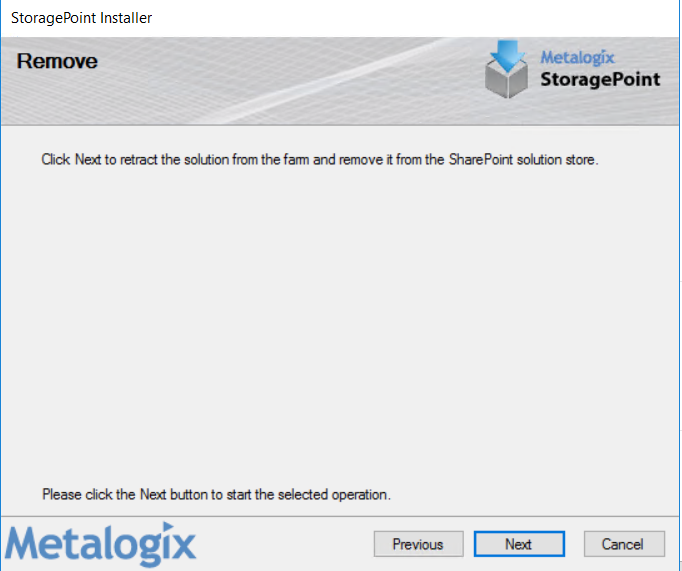

6.Click Next.
clip0081

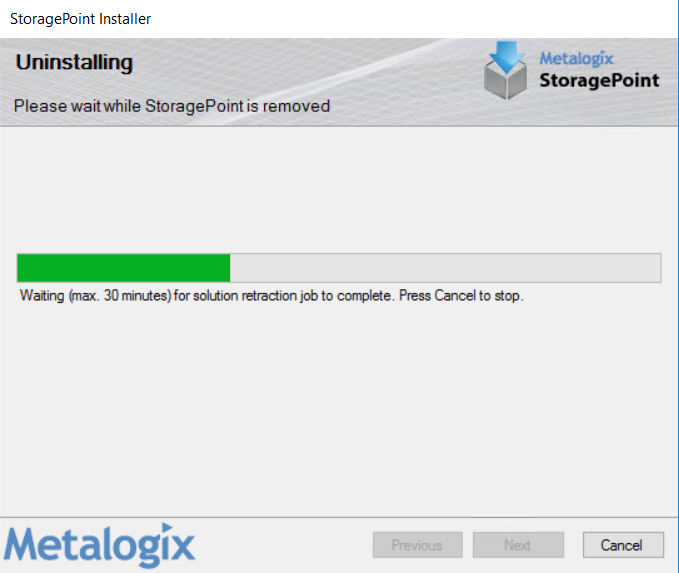

The solution file will now be removed from all servers in the farm. This process can take upwards of 5 minutes depending on the size of the farm.
clip0083

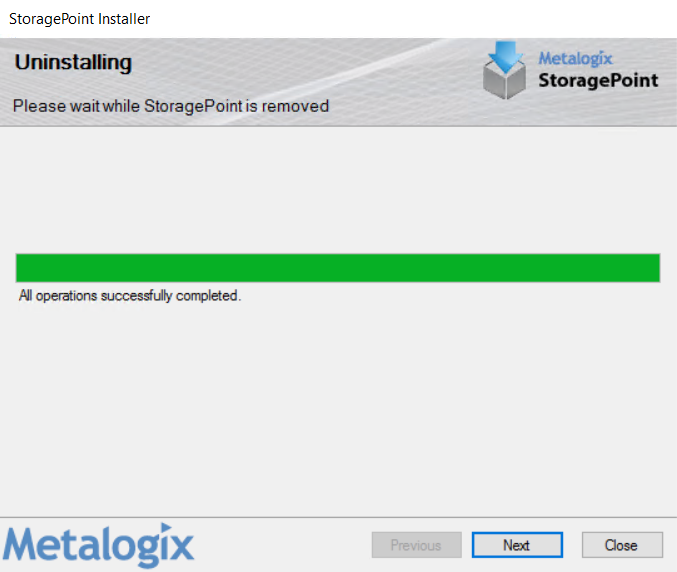

7.Upon completion of the uninstall process the progress status will change to All operations successfully completed. Click Next.
clip0084

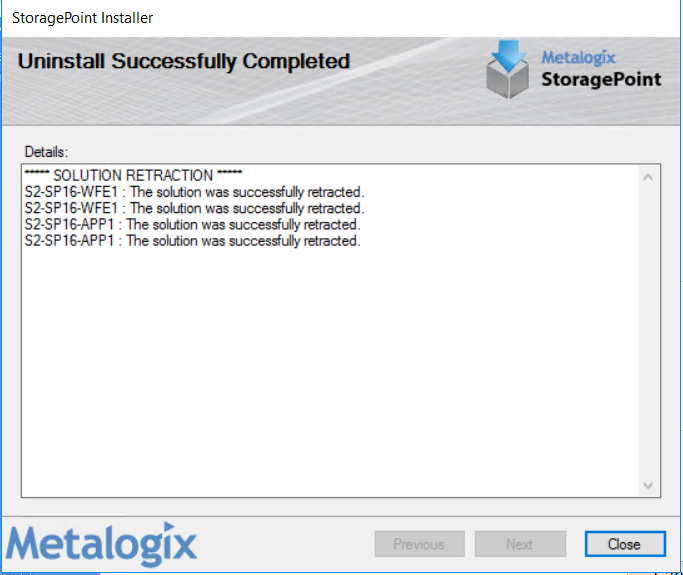

8.The uninstall process is complete. Click Close.
clip0085

9.The Installation wizard will complete the uninstall. Click Finish.
uninstall-complete

Solution Deployment Timeout Setting

If the deployment of the solution needs more time than the default 15 minutes, a setting can be added to the setup configuration file to add more time. This may be necessary for larger farms or servers with less than optimal performance, but still operational for hosting SharePoint.

1.Launch the StoragePoint Installer. This will place files in the StoragePoint installation path specified during the installer.
clip0029

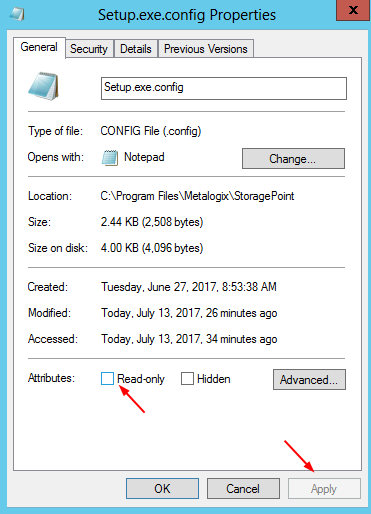

2.Go to the location of the files and update the properties on Setup.exe.config to enable write.
solution deployment timeout setting 1solution deployment timeout setting 2

3.Open the file in Notepad and add the following: <add key="LongOperationTimeout" value="9000000"/>, where 9000000 is the amount of time in milliseconds to wait for solution deployment to complete. Save the file. Mark the file as Read Only.
solution deployment timeout setting 4

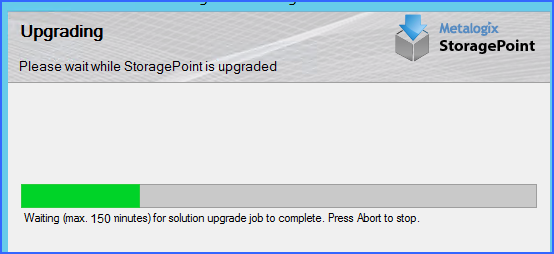

4.Continue with the StoragePoint configuration wizard. The new timeout setting will be visible during deployment.
solution deployment timeout setting 3
