Configuring backup retention policy for Secure Storage server

If you create backups on a daily basis as recommended, you should configure a backup retention policy to maintain the backups created. It is recommended to maintain at least 2 weeks (14 days) of backups including backups on your Secure Storage server. This approach will provide you with a sufficient number of backups to recover from an Active Directory® failure that remained undetected for some time.

note

The default number of days to retain backups is 0 days. Ensure you configure the backup retention policy after adding a new Secure Storage server.

To configure backup retention policy directly on the Secure Storage server

  1. During the installation of the Secure Storage agent on the Secure Storage server, a PowerShell® module was installed and is located in the agent installation folder.

  2. On the Secure Storage server, run Windows PowerShell. The module will automatically be imported.

  3. To configure backup retention policy, run the cmdlet Set-RMADStorageServerRetentionPolicy. For further details on Set-RMADStorageServerRetentionPolicy see the Management Shell Guide supplied with this release of the product.

To get the current backup retention policy on the Secure Storage server

  1. During the installation of the Secure Storage agent on the Secure Storage server, a PowerShell® module was installed and is located in the agent installation folder.

  2. On the Secure Storage server, run the PowerShell console. The module will automatically be imported.

  3. To configure backup retention policy, run the cmdlet Get-RMADStorageServerRetentionPolicy. For further details on Get-RMADStorageServerRetentionPolicy see the Management Shell Guide supplied with this release of the product.



Hybrid Recovery with On Demand Recovery

Recovery Manager for Active Directory integration with On Demand Recovery enables the restoration and undelete of on-premises objects that are synchronized with Azure Active Directory.

About the Hybrid Connector

The Hybrid Connector Windows service establishes a secure connection to the On Demand Recovery online service enabling simultaneous restoration of both on-premises and online objects.

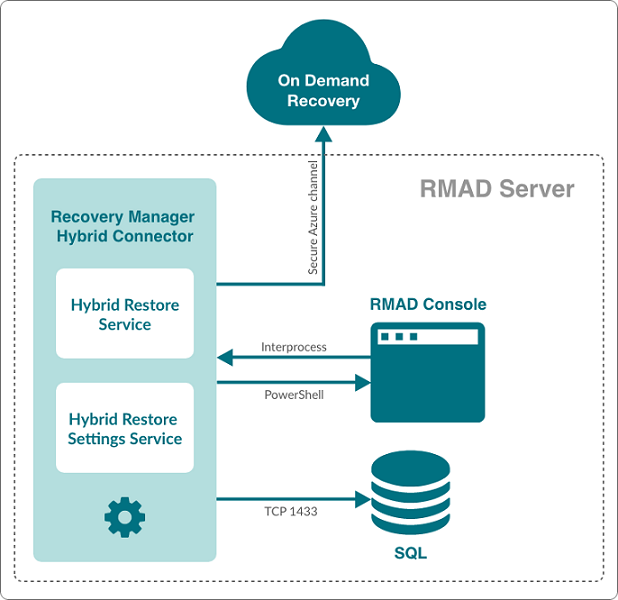

Figure: Simplified architectural Hybrid services block diagram

What can be restored using hybrid recovery

  • On-premises groups

  • Office 365® licenses (assignedLicenses property for cloud users) and cloud group membership

  • Deleted on-premises users and groups

  • Service principals' appRoleAssignments to on-premises users

  • appRoleAssignments to non-Office 365® groups (used for SSO and App Roles)

  • Directory roles: Global administrator, Exchange administrator, Compliance administrator

  • Other cloud-only properties: such as Block sign in, Authentication contact information, Minors and Consent

  • Multifactor authentication (MFA) settings if a customer uses cloud MFA

  • Azure® application custom attributes (schema extension attributes)

  • Conditional access policies

  • Inactive mailboxes of permanently deleted users; the Federated Domain scenario is also supported.

Important Considerations

To restore on-premises objects, On Demand Recovery uses attribute values from the RMAD backup that is closest in time but older than the cloud backup unpacked in the On Demand Recovery user interface. If the closest on-premises backup is 24 hours older than the cloud backup, you will receive the warning message.

By default, the search of the closest in time on-premises backup is performed among the backups that were unpacked in RMAD. You can use the Use unpack and encrypted backups for restore operations option on Hybrid Recovery settings of RMAD – in this case, the on-premises backup will be unpacked automatically during the restore operation.

On Demand Recovery shows only on-premises attributes synchronized with the cloud and cloud-only attributes for the selected object when you click Browse in the Restore Objects dialog. On-premises only attributes are not included in this list. To restore on-premises only attributes, you must select the Restore all attributes option in the Restore Objects dialog.

After the hybrid restore operation, On Demand Recovery forces Azure AD Connect synchronization to push on-premises changes to the cloud and wait until it completes the synchronization. Restore events can be used to track steps of Azure AD Connect synchronization, such as export and import.

To restore 'member' or 'memberOf' attributes for an object, restore the group from the Unpacked Objects view. Restoring of group memberships from the Differences report is not supported in hybrid environments.

Hybrid restore from the Differences report uses attribute values from the on-premises backup. These values may be different from the corresponding values shown in the Differences report.

On Demand Recovery supports one hybrid connection per On Demand organization. If you need to manage multiple hybrid tenants, create a separate On Demand organization for each Hybrid Azure AD tenant.

On Demand Recovery restores Back Link attributes: 'memberOf' (the back link for the 'member' attribute) and 'directReports' (the back link for the 'manager' attribute). These attributes can be selected along with all other attributes when you click Browse in the Restore Objects dialog.

Separate Microsoft Azure Relay service is used for each hybrid connection (one per On Demand organization). On Demand Recovery creates WCF Relay per On Demand organization. No changes to On-Premises Firewall settings are required.

On Demand Recovery users can restore objects from all on-premises domains and forests that are synchronized with the Azure AD tenant. Also, in Recovery Manager, you need to add domain controllers for every domain that will be restored and specify the account under which the restore operation will be performed.

Required Permissions

Depending on which kind of restore operation (agent-based or agentless) you are going to perform in a hybrid configuration, the account under which you want the selected Recovery Manager for Active Directory instance to recover data in the domain must meet the corresponding requirements. For details about account permissions for agent-based and agentless restore, see Permissions required to use Recovery Manager for Active Directory.

To push an Azure® synchronization, the specified account must be a member of the ADSyncOperators group on the Azure® Active Directory® synchronization server. This account must also be able to run remote PowerShell commands against the server.

How to disable hybrid integration on the Web Portal

If hybrid integration is configured on the Web Portal it must be disabled prior to configuring hybrid integration from the Recovery Manager for AD (RMAD) console. Failure to do so may result in a failed online restoration.

Follow the steps below to fully disable hybrid integration on the Web Portal.

  1. Logon to Web Portal

  2. Select the “Configuration” tab at the top

  3. Expand the “Portal Settings” expander

  4. Click on the “Configure On Demand” button

  5. Remove the checkmark from the “Enable integration” checkbox

  6. Click “OK” to save and close the dialog

  7. Open the Windows “Services” application

  8. Find the Windows service “Quest Recovery Manager Portal” from the list

  9. Right click on the service and select “Stop”

  10. Once the service has been stopped it can then be re-enabled if desired

Web Portal and Recovery Manager for Active Directory (RMAD) version compatibility

To continue using the Web Portal with newer versions of the RMAD console some configuration changes must be made.

For instructions on how to make the necessary configuration changes follow the steps below.

  1. Navigate to the installation directory of the Web Portal (the default installation location is C:\Program Files (x86)\Quest\Recovery Manager Portal)

  2. Open the file EnterprisePortalSettings.xml

  3. Inside the GeneralSettings element find the property VersionValidationMode. If this property is not present one will have to be created

  4. Change the value of the VersionValidationMode to None

Below is a sample of what the configuration should look like once the changes have been made.

<GeneralSettings>
    <add key="VersionValidationMode" value="None" />
    Other configuration values…
</GeneralSettings>
Configure Hybrid Recovery
  1. From within the RMAD Console, select the Hybrid Recovery node from the tree on the left.

  2. Select the Enable integration with On Demand Recovery checkbox to enable a secure connection to the online On Demand Recovery service.

  3. Enter the On Demand Recovery Settings using the following procedure:

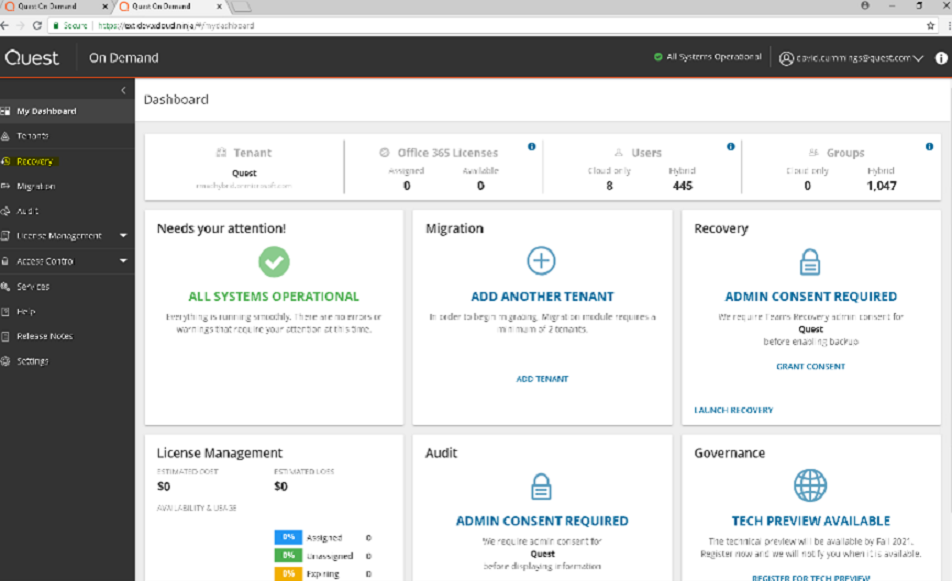

    • Navigate to the On Demand Recovery online dashboard and select the Recovery menu option from the left-hand side (highlighted in yellow in the image below)

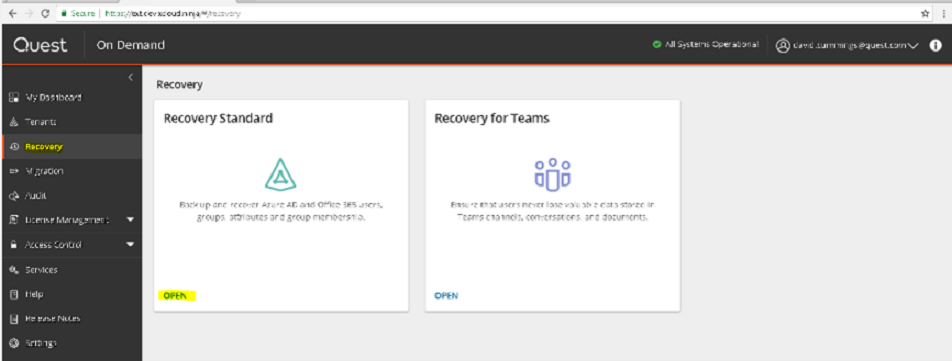

    • Click OPEN under the Recovery Standard panel

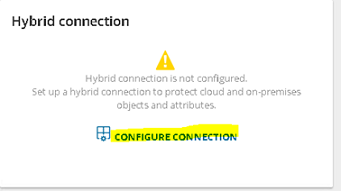

    • Click CONFIGURE CONNECTION under the Hybrid Connection panel. This will bring up the hybrid connection dialog.

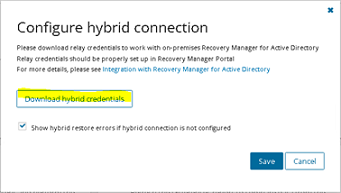

    • Click the Download hybrid credentials button on the dialog to download the required connection credentials. This file will be used to configure the On Demand Recovery Settings in the Recovery Manager for Active Directory console.

    • From the Hybrid Recovery node on the Recovery Manager for Active Directory console, click on the ellipses (…) button located inside of the Url text box. This will bring up the Windows file dialog. Navigate to the location where the hybrid credentials file was saved (in the previous step) and select Open. This will automatically populate all the required fields under the On Demand Recovery Settings.

  4. Enter in the Azure AD Connect host and its associated credentials under Azure AD Connector Settings. The values entered depends on where Azure AD Connect is installed.

    NOTE: If Azure AD Connect is currently installed on the same server as the Recovery Manager for Active Directory console, then these fields can be left blank.

    Azure AD connector Host: Enter in the host name or IP address of the system where Azure AD Connect is installed.

    • Username: Enter in the domain username for this server. This account should have the necessary permissions listed under the Required Permissions section.

    • Password: Enter in the domain password for this server.

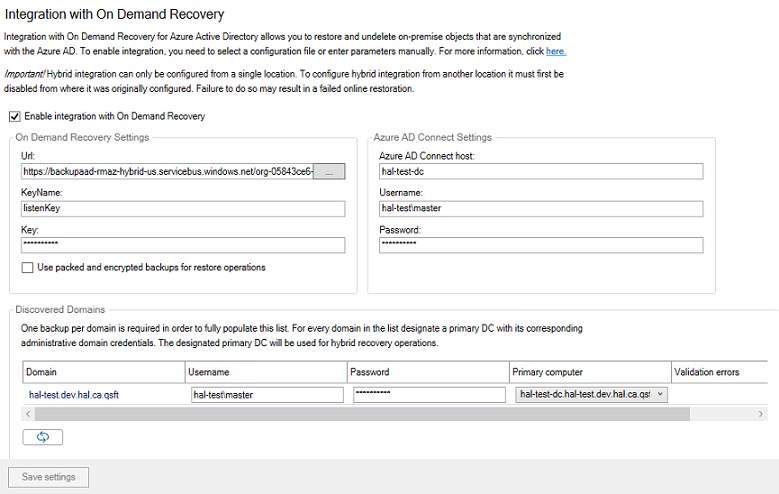

  5. Enter in the domain username, password and primary computer for each domain listed under Discovered Domains. The designated primary computer will be used for hybrid recovery operations.

    Resources/Images/Hybrid_ODR_04.png

    The domains listed under Discovered Domains are pulled from backups; this means to fully populate this list at least one backup per domain is required.

    After performing a backup, it may be necessary to manually refresh this list which can be done by clicking on the refresh button , Resources/Images/Hybrid01.png.

  6. Once all configuration has been entered click on the Save settings button located at the bottom of the screen



Managing Recovery Manager for Active Directory configuration

In this section:



Preparing for working with Active Directory or AD LDS (ADAM) backups

To restore data from Active Directory® or AD LDS (ADAM) backups, Recovery Manager for Active Directory (RMAD) requires specific dynamic link libraries (DLLs) supplied with the Windows operating system. In case RMAD cannot find these DLLs, the backup restore operation may fail with an error message similar to the following:

“The Active Directory® database (ntds.dit) file in the backup is incompatible with the esent.dll file version found on this computer.”

Before you start using RMAD to extract and restore data from Active Directory® or AD LDS (ADAM) backups, it is recommended to ensure the required DLLs are available on the RMAD computer.

Requirements

Operating system on the Recovery Manager for Active Directory computer

NOTE

The OS version on the domain controller cannot be higher than the OS version on the Recovery Manager Console machine. For the list of supported OS, see Release Notes.
