Integration for Notes 20.13 - User Guide - BTCal

Section 1: Introduction Section 2: Features and Advantages Section 3: Scope Section 4: Recommended Installer Prerequisites Section 5: Pre-installation Requirements Section 6: Configure the Domino Environment Section 7: Configure Integration for Notes BTCal in Exchange or Office 365 Section 8: Licenses Section 9: Installing Integration for Notes Section 10: Create and Configure Domino Databases Section 11: Modify the Notes.ini File Section 12: Re-start BTCal Domino server to bring it online Section 13: Verification Section 14: On-going Administration Appendix A: ZApp Appendix B: Configure GRIP Appendix C: On the Fly Encryption and Decryption Appendix D: Disable Encrypted Message Routing Appendix E: High Availability/Redundancy Mail and Calendar Routing for Foreign Domains Appendix F: Notes.ini Parameter Descriptions Appendix G: Notes.ini Parameter Values Appendix H: Considerations for Domino SMTP Domain Exposure Appendix I: Processing Repeating Meetings Appendix J: Deployment Quick Reference Appendix K: Customizable Non Delivery Report (NDR) Reason Codes Appendix L: Cross Platform Delegation Appendix M: BT Stats Database

1.4 Coexistence Environment

1.4     Coexistence Environment

A coexistence environment can contain as little as one server (if only managing message and calendar workflow), but an ideal environment would contain a minimum of three servers as illustrated below:

  • Domino Coexistence Server

  • Windows Coexistence Server (for FreeBusy only)

  • SQL Coexistence Server (for Directory Sync Pro)

An optional component of Integration for Notes is Zero-touch Application Remediation (ZApp), which allows Outlook users to view and act on email-enabled Notes applications. This is configured on the Domino coex server.



In the illustration above, one of the components is the Domino Coexistence Server, which is responsible for supporting coexistence server tasks at the Domino end of the environment. These server tasks include:

  • Messaging/calendaring/application coexistence

  • Free/busy lookup (see the FreeBusy user guide)

It also houses several Domino databases used by Integration for Notes, and, if ZApp is enabled, the BTStore database.

The Windows Coexistence Server, on the other hand, is designed to support coexistence on the Exchange side with free/busy lookups.

The SQL Coexistence Server (in the middle of the illustration) can be a dedicated or shared SQL Server and contains a SQL database which is used for name and email address directory synchronization between Domino and Exchange.

Messaging

The coexistence environment facilitates mail flow between Domino and Exchange. It allows you to configure how email addressing is handled between the two platforms.  It also manages calendar workflow between Domino and Exchange users, allowing them to schedule/update/reschedule and cancel single occurrence and recurring meetings irrespective of their migration status or email platform.

Items migrated with Notes Migrator will not have access to the full coexistence functionality until a post-migration workflow has been implemented.  Refer to Appendix I: Processing Repeating Meetings for information regarding unsupported items.

Directory Synchronization Using Directory Sync Pro

Directory Sync Pro for Notes automates the manual work of keeping Exchange and Domino environments in sync, by performing one off or scheduled synchronization of new and changed data from one or more Domino Directories and Windows Active Directory

FreeBusy

A Domino environment implements its calendar free/busy queries differently from the way Exchange does…which means that natively, one environment cannot see the availability of users in the other environment. To make the two environments communicate with each other, Integration for Notes uses FreeBusy, which works seamlessly with other components of the coexistence environment, so that Notes users can view the free/busy status of Exchange users…and vice versa. (For more information, see the FreeBusy user guide.)

Section 2: Features and Advantages

1.4     Coexistence Environment

A coexistence environment can contain as little as one server (if only managing message and calendar workflow), but an ideal environment would contain a minimum of three servers as illustrated below:

  • Domino Coexistence Server

  • Windows Coexistence Server (for FreeBusy only)

  • SQL Coexistence Server (for Directory Sync Pro)

An optional component of Integration for Notes is Zero-touch Application Remediation (ZApp), which allows Outlook users to view and act on email-enabled Notes applications. This is configured on the Domino coex server.



In the illustration above, one of the components is the Domino Coexistence Server, which is responsible for supporting coexistence server tasks at the Domino end of the environment. These server tasks include:

  • Messaging/calendaring/application coexistence

  • Free/busy lookup (see the FreeBusy user guide)

It also houses several Domino databases used by Integration for Notes, and, if ZApp is enabled, the BTStore database.

The Windows Coexistence Server, on the other hand, is designed to support coexistence on the Exchange side with free/busy lookups.

The SQL Coexistence Server (in the middle of the illustration) can be a dedicated or shared SQL Server and contains a SQL database which is used for name and email address directory synchronization between Domino and Exchange.

Messaging

The coexistence environment facilitates mail flow between Domino and Exchange. It allows you to configure how email addressing is handled between the two platforms.  It also manages calendar workflow between Domino and Exchange users, allowing them to schedule/update/reschedule and cancel single occurrence and recurring meetings irrespective of their migration status or email platform.

Items migrated with Notes Migrator will not have access to the full coexistence functionality until a post-migration workflow has been implemented.  Refer to Appendix I: Processing Repeating Meetings for information regarding unsupported items.

Directory Synchronization Using Directory Sync Pro

Directory Sync Pro for Notes automates the manual work of keeping Exchange and Domino environments in sync, by performing one off or scheduled synchronization of new and changed data from one or more Domino Directories and Windows Active Directory

FreeBusy

A Domino environment implements its calendar free/busy queries differently from the way Exchange does…which means that natively, one environment cannot see the availability of users in the other environment. To make the two environments communicate with each other, Integration for Notes uses FreeBusy, which works seamlessly with other components of the coexistence environment, so that Notes users can view the free/busy status of Exchange users…and vice versa. (For more information, see the FreeBusy user guide.)

2.1 Features

2.1     Features

Integration for Notes offers a number of improvements over native Domino/Exchange message and calendar interoperability, including:

  • User friendly display name formatting for mail messages and calendar invitations

  • Support for repeating meetings, including updates, invitee tracking and room and resource reservations

  • Customizable user alerts when updates to repeating meetings cannot be processed correctly due to native Domino and Exchange differences

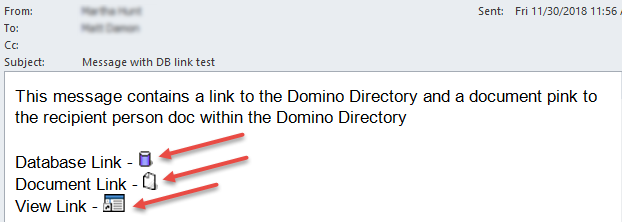

  • Database, view, and doc links are displayed in Outlook the same way they are displayed in Notes

  • Notes-specific email elements are fully supported and actionable in Outlook, including:

    • Embedded forms

    • Link and action hotspots, text pop-ups and buttons

  • Mail flow redundancy and clustering

2.2 Functions and Advantages

2.2     Functions and Advantages

Integration for Notes is designed to:

  • Achieve high-fidelity exchange of mail and calendar data by utilizing the SMTP protocol with MIME and iCAL encoding of Notes Rich Text data

  • Increase reliability with redundant mail flow paths for SMTP-based email data exchange

  • Provide reliable free/busy schedule lookups between Exchange and Domino users

  • Improve the appearance of addresses in the From, To, and CC fields, replacing unfriendly email addresses with user-friendly display names

  • Identify and intercept Exchange or Domino initiated invitations that the opposing system can’t support, and send customizable notifications to the meeting chairs

  • Allow Outlook users to book meetings using Domino rooms or resources
