Foglight Hybrid Cloud Manager 6.1.0 - User Guide (for Azure environments)

Using Foglight Hybrid Cloud Manager for Azure Monitoring Tab Tags Tab Reports Tab Rule Configuration Tab Usage & Quotas Tab Global Services Tab Administration Tab Optimizer Tab Cost Tab Policy Management Tab

Storage Accounts view

The Storage Accounts view is a tree view. It lists the storage accounts existing in your environment, and shows their severity state.This view appears on the left when you select the Storage Accounts tile in the Actions bar.

Figure 15. Storage Accounts view

Selecting the All Storage Accounts node displays the overall resource utilization for all storage accounts in your integrated system and identifies the ones that consume the highest amount of system resources in the Summary - All Storage Accounts view on the right. Similarly, selecting a storage node shows storage-specific metrics in the Storage Account Summary view.


Table 21. Description of the View
Data displayed
•
Alarm severity. The state of the most recent alarm raised against the volume.

•
All Storage Accounts. A parent node for the instances of all volumes that appear in this view.

•
Storage Account. The instance of storage account.
Where to go next

Drill down on:


•
All Storage Accounts. Shows the Summary - All Storage Accounts view on the right.

•
Storage Account. Shows the Storage Account Summary view on the right.

Summary - All Storage Accounts view

The Summary - All Storage Accounts view displays overall information for all volumes in the selected service and identifies the elements that consume the highest amount of resources. This view appears on the right when you select All Storage Accounts in the Storage Accounts view.

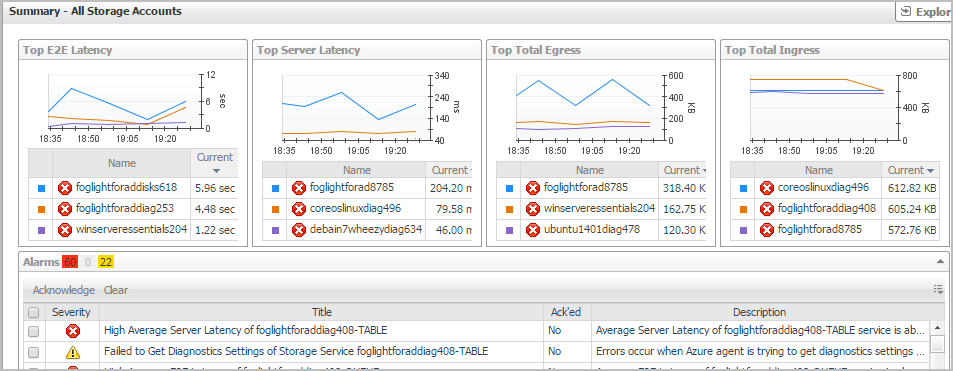

Figure 16. Summary - All Storage Accounts view

This view consists of the following embedded views:

•
Alarms
•
Top E2E Latency
•
Top Server Latency
•
Top Total Egress
•
Top Total Egress


Table 22. Alarms
Description

Lists the alarms generated against the monitored virtual machine.

Data displayed
•
Description. An explanation about why the alarm occurred.

•
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.

•
Title: Indicates the alarm title.

•
Ack’ed. Indicates whether the alarm has been acknowledged.
Where to go next

Drill down on:


•
Description, Severity, Title, or Ack’ed. Displays the Alarm Created dialog box, showing additional information about the alarm. For more information about alarms, see the Foglight User Help.

Table 23. Top E2E Latency
Description

Shows the top three storage accounts with the highest end-to-end (E2E) latency.

Data displayed
•
Current. The value of E2E latency (in seconds).

•
Storage Account. The name of the storage account.
Where to go next

Drill down on:


•
Current, Storage Account. Shows the Storage Account view, including Resource Information, and Average E2E Latency, Average Server Latency, Total Egress, Total Ingress, Total Requests, and Total Billable Requests.

Table 24. Top Server Latency
Description

Shows the top three storage accounts with the highest server latency.

Data displayed
•
Current. The value of E2E latency (in milliseconds).

•
Storage Account. The name of the storage account.
Where to go next

Drill down on:


•
Current, Storage Account. Shows the Storage Account view, including Resource Information, and Average E2E Latency, Average Server Latency, Total Egress, Total Ingress, Total Requests, and Total Billable Requests.

Table 25. Top Total Egress
Description

Shows the top three storage accounts with the highest Egress.

Data displayed
•
Current. The value of Egress (in KB).

•
Storage Account. The name of the storage account.
Where to go next

Drill down on:


•
Current, Storage Account. Shows the Storage Account view, including Resource Information, and Average E2E Latency, Average Server Latency, Total Egress, Total Ingress, Total Requests, and Total Billable Requests.

Table 26. Top Total Ingress
Description

Shows the top three storage accounts with the highest Egress.

Data displayed
•
Current. The value of Ingress (in KB).

•
Rate. The rate at which the top three disk consumers read or write data to the storage during the selected time range.
Where to go next

Drill down on:


•
Current, Storage Account. Shows the Storage Account view, including Resource Information, and Average E2E Latency, Average Server Latency, Total Egress, Total Ingress, Total Requests, and Total Billable Requests.

Storage Account Summary view

The Storage Account Summary view displays complete details for a storage account. This view appears on the right when you select a storage account in the Storage Accounts view.

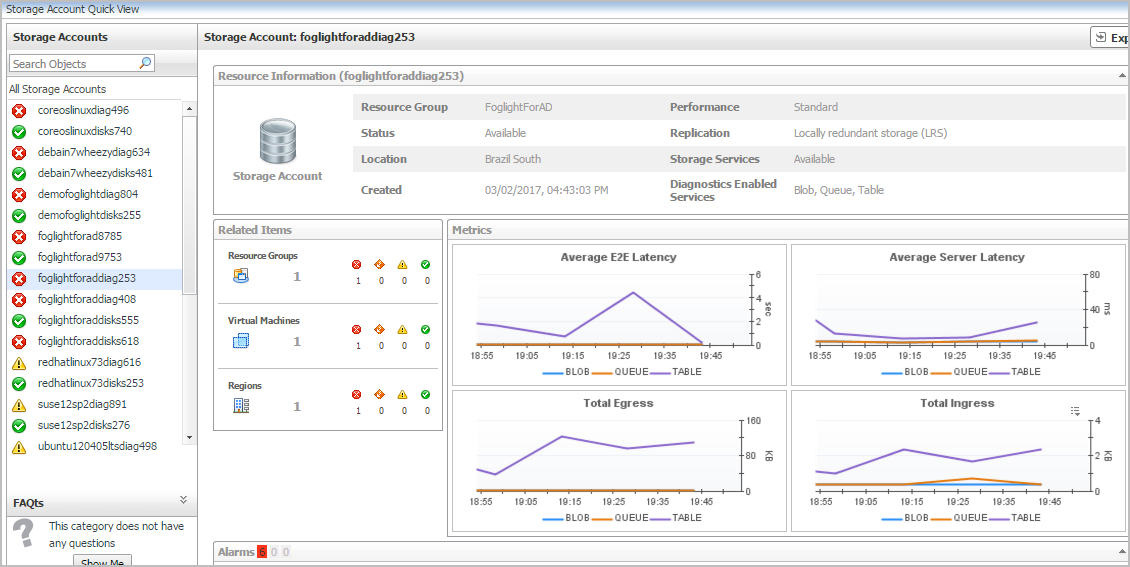

Figure 17. Storage Account Summary view

This view consists of the following embedded views:

•
Alarms
•
Related Items
•
Metrics
•
Resource Information

Table 27. Alarms
Description

Lists the alarms generated against the selected virtual machine.

Data displayed
•
Description. An explanation about why the alarm occurred.

•
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.

•
Title. Indicates the alarm title.

•
Ack’ed. Indicates whether the alarm has been acknowledged.
Where to go next

Drill down on:


•
Description, Severity, Title, or Ack’ed. Displays the Alarm Created dialog box, showing additional information about the alarm. For more information about alarms, see the Foglight User Help.

Table 28. Related Items
Description

Shows the numbers and states of the selected virtual machine running on the monitored Azure environment.

Data displayed
•
Resource Groups. The number of the resource groups that are associated with the selected storage account, followed by related alarm counts, broken down by the alarm state (Normal, Warning, Critical, Fatal).

•
Regions. The number of the region that are associated with the selected storage account, followed by related alarm counts, broken down by the alarm state (Normal, Warning, Critical, Fatal).

•
Virtual Machines. The number of the virtual machines that are that are associated with the selected storage account, followed by related alarm counts, broken down by the alarm state (Normal, Warning, Critical, Fatal).
Where to go next

Drill down on:


•
Resource Groups. Displays the Resource Groups dwell, showing the name of Resource Groups and its state.

•
Regions. Displays the Regions dwell, showing the name and state of the region in which the selected storage account is running.

•
Virtual Machines. Displays the Virtual Machines dwell, showing the name and state of the selected storage account.

Table 29. Metrics
Description

Shows the metrics of the selected storage account, broken down into four simple views.

Data displayed
•
Average E2E Latency. Shows the average E2E latency in seconds.

•
Average Server Latency. Shows the average server latency in milliseconds.

•
Total Egress. Shows the total Egress in KB.

•
Total Ingress. Shows the Total Ingress in KB.

Table 30. Resource Information
Description

Shows the name of the selected storage account, its status, and the basic configuration, including the name of the resource group associated with this storage account, the location where this storage account locates, its created time, and its replication.

Virtual Networks monitoring

The Virtual Networks view shows the data collected about a specific virtual network or all virtual networks. For more information, see the following topics:

•
Virtual Networks view
•
Summary - All Virtual Networks view
•
Virtual Network Summary view
