Policy Executed History view Run Reports for Policy Management

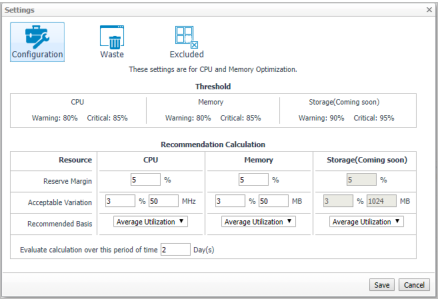

Configuration tab

The Configuration tab provides the recommended settings for CPU, memory, and storage optimization.

•

Thresholds. Provides the values of a resource metric that define the Warning and Critical levels (for CPU, memory, and storage).

•

Recommendation Calculation area. Allows you to define the following parameters for optimizing the CPU, memory resources in your environment, Storage resources not supported at current version:

•

Reserve Margin [x]%. This parameter is used for calculating the Evaluation Result, which is needed for making recommendations. The Recommendation Reserve Margin percentage is the percentage above the recommended basis, reserved for unexpected increases in utilization.

•

Acceptable Variation. This parameter is used for calculating the Evaluation Result, which is needed for making recommendations. The Acceptable Variation percentage is the minimum percentage deviation of the Evaluation Result from the current setting, which results in a recommendation. The Acceptable Variation value is the minimum difference between the Evaluation Result and the current setting, which results in a recommendation.

•

Recommended Basis. Use this list to select the “Recommended Basis” to be used for calculating the Evaluation Result. Currently just support Average Utilization.

•

Evaluate calculation over this period of time [x] Day(s). Defines the time interval during which the right-sizing calculation is performed.

•

History Period [x] Day(s). The Change History view displays the changes for the time interval defined here.

To save any changes made to the Configuration settings, click Save at the bottom of the tab.

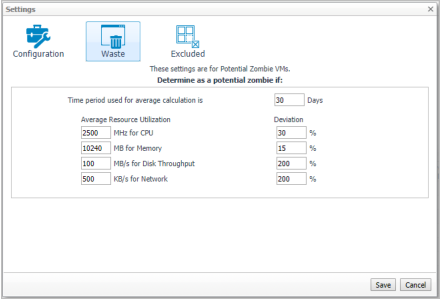

Waste tab

The Waste tab allows you to configure the settings for determining resources wasted in your environment. These include powered-off instances, and potential zombie VMs:

•

Determine as a potential zombie if area: A VM is considered a zombie VM if the following five settings are met:

•

Time period used for average calculation is [x] Days. Defines when a resource is considered a zombie VM, by looking at the period used for average calculations.

•

Average Resource Utilization-Deviation. Defines when a resource is considered a zombie VM, by looking at the CPU, memory, disk throughput, and network utilization values.


	TIP: Deviation is the maximum deviation from the average resource utilization that is allowed for a VM considered to be a zombie.

To save any changes made to the Waste settings, click Save at the bottom of the tab.

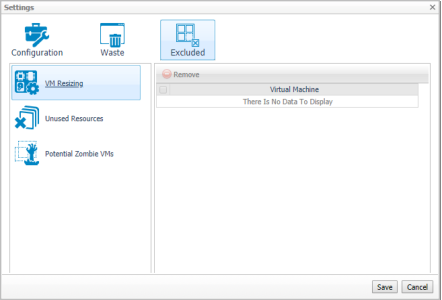

Excluded tab

The Excluded tab allows you to remove a VM from the list of excluded objects. The Excluded tab includes the following information:

•

On the left side, a navigation tree, that allows you to select the VM component category.

•

On the right side, the list of VMs excluded from the selected VM category.

To remove VMs from the list of Excluded objects, select the check boxes for these VMs and click Remove. To save any changes made to the Excluded settings, click Save at the bottom of the tab.

The Excluded tab can also be accesses by clicking Show Excluded Items on the Optimizer tab.

Cost Tab

Click Cost on the top of the Cloud Manager dashboard to navigate to the Cost tab.


	NOTE: Ensure that you have configured the cost metrics for subscriptions through the Agent Properties dialog box; otherwise there will have no data displayed on this tab. For more information about how to configure cost metrics, refer to the Configure Subscription Cost to Monitor: .

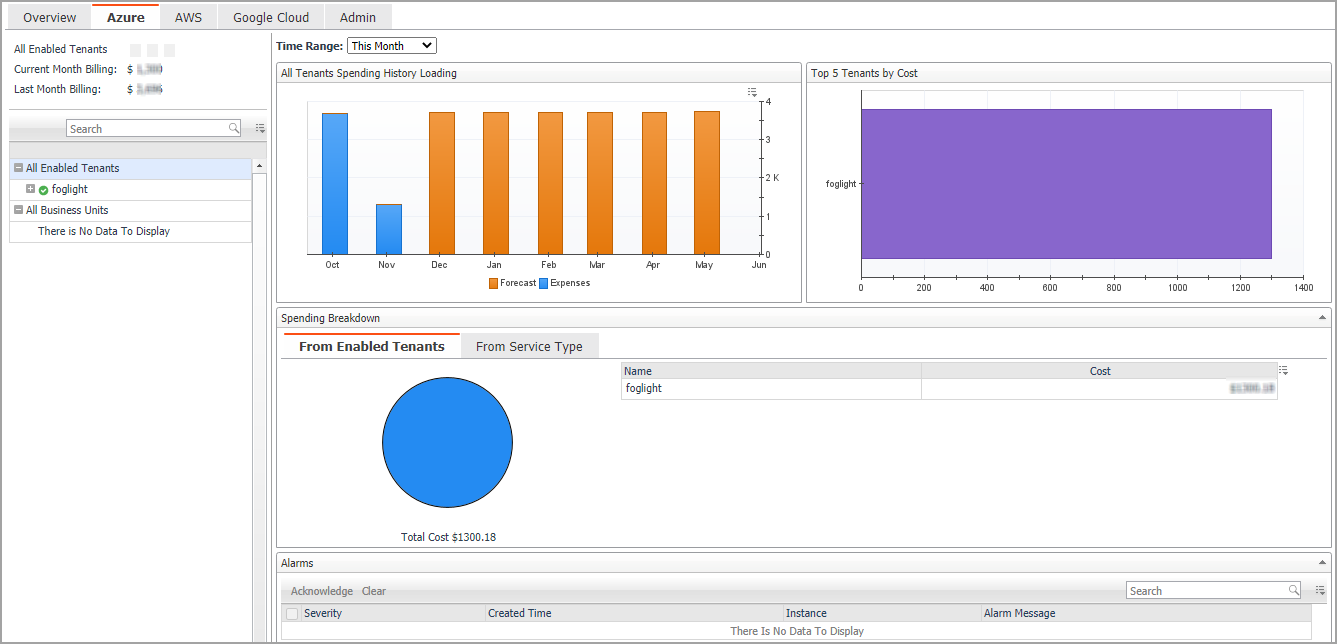

Figure 29. Cost tab
