Shutting down a guest OS and switching to standby mode

Use the Shutdown OS and StandBy OS buttons on the VMware Administration tab to perform these operations, as required.

Figure 49. Administration toolbar

To shut down a guest OS:
1
Select a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, click Shutdown OS.

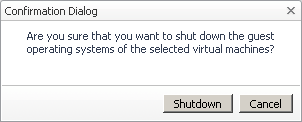

The Confirmation Dialog appears.
3
In the Confirmation Dialog, click Shutdown.
To switch a guest OS to standby mode:
1
Select a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, click StandBy OS.
The Confirmation Dialog appears.
3
In the Confirmation Dialog, click Standby.

Deleting virtual machines

Use the Delete button on the VMware Explorer Administration tab to delete a virtual machine, as required.

Figure 50. Administration toolbar

To delete a virtual machine:
1
Select a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
Power of the virtual machine. For instructions, see To power off a virtual machine: .
3
On the VMware Explorer Administration tab, click Delete.

Creating, managing, and reverting to virtual machine snapshots

A virtual machine snapshot is a saved virtual machine image to which you can return at any point in time. Use the Snapshots view on the VMware Explorer Administration tab to create, manage, and revert to virtual machine snapshots, as required.

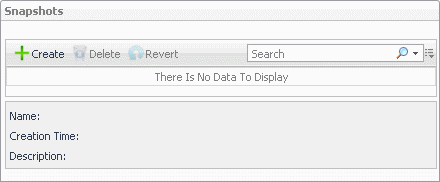

Figure 51. Snapshots view

To create a virtual machine snapshot:
1
Select a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, in the Snapshots view, click Create.

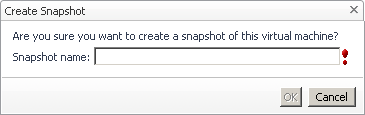

The Create Snapshot dialog box appears.
3
In the Create Snapshot dialog box, in the Snapshot name box, type the snapshot name.
4
Click OK.
To delete a virtual machine snapshot:
1
Select a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, in the Snapshots view, select the virtual machine snapshot that you want to delete.
3
Click Delete.
To revert to a virtual machine snapshot:
1
Select a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, in the Snapshots view, select the virtual machine snapshot to which you want to revert.
3
Click Revert.
The shutdown the operating system dialog box appears.
4
Click OK.

Automating VMware administration with workflows

A workflow is a collection of tasks arranged into a specific order, that you can run multiple times against the same or different set of objects. It provides a way to automate common scenarios and simplify administration in general. Use the Workflows view on the VMware Explorer Administration tab to create and manage ESX host workflows.

Figure 52. Workflows view

To create or edit a workflow:
1
Select an ESX host or a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
To create a workflow, on the VMware Explorer Administration tab, in the Workflows view, click New.
To edit a workflow, in the Workflows view, select the workflow that you want to edit, and click Edit.

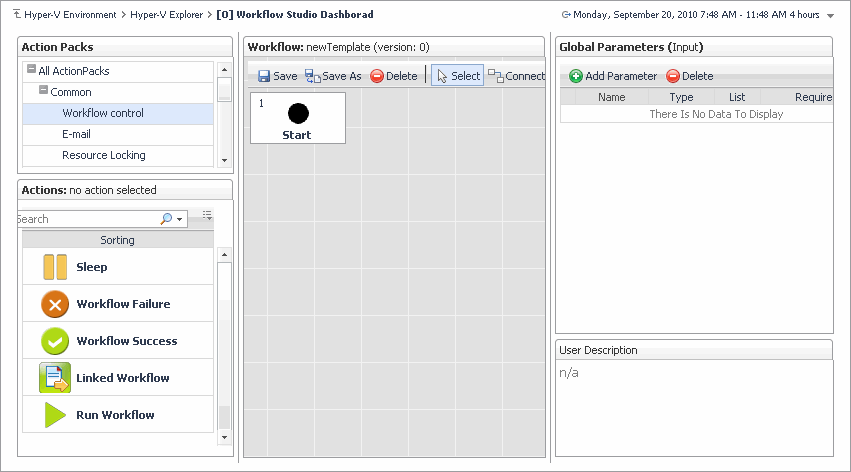

The Workflow Studio dashboard appears in the display area.
3
Define the workflow, as required.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
4
To return to the VMware Explorer, use the bread crumb trail.
To run an ESX host workflow:
1
Select an ESX host or a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, in the Workflows view, select the workflow that you want to run.
3
Click Run.

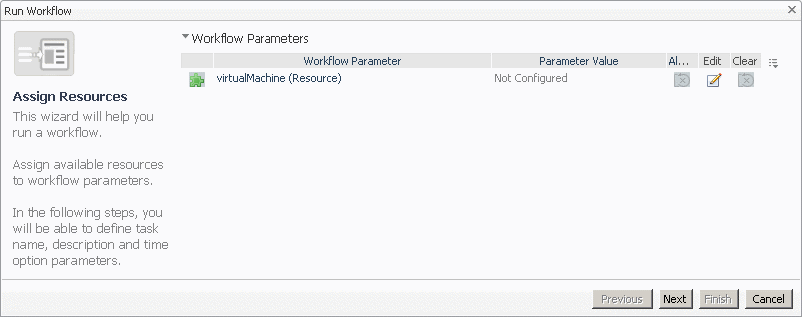

The Run Workflow dialog box appears.
4
Edit the workflow parameters, as required. The type and range of parameters depend on those defined in the selected workflow.
Click Next.
5
In the Specify Task Details page that appears in the Run Workflow dialog box, specify the task name, description, and time options, then click Finish.
To delete an ESX host workflow:
1
Select an ESX host or a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, in the Workflows view, select the workflow that you want to delete.
3
Click Delete.
To export an ESX host workflow to a file:
1
Select an ESX host or a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, in the Workflows view, select the workflow that you want to export to a file.
3
Click Export.
The Export a Workflow dialog box appears.
4
Specify the name and location of the file to which you want to export the workflow.
To import an ESX host workflow from a file:
1
Select an ESX host or a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, in the Workflows view, select the workflow that you want to import from a file.
3
Click Import.
The Import a Workflow dialog box appears.
4
Navigate to the file containing the workflow you want to edit.
