Foglight for VMware 5.7.7 - User and Reference Guide

Using VMware Monitoring in Foglight for Storage Management Reference Appendix: Alarm Messages Appendix: Metrics

About VMware roles

About VMware roles

The Management Server relies on roles to control user access. Each user can have one or more roles. The roles granted to a user determine the set of actions that the user can perform. The Management Server includes a set of built-in roles that control access to dashboards and reports included with the Management Server. The following roles are included with VMware Monitoring in Foglight® for Storage Management to control access to the dashboards and reports:

•
VMware Administrator: This role provides full access to all product components, views and reports.
•
VMware Automation User: Users with this role can access the VMware Explorer Administration tab. This tab provides quick access to common administrative tasks that include server shutdown, virtual machine creation, resource allocation, and others.

*
IMPORTANT: Executing VMware administration tasks, such as rebooting an ESX® host or a VM, require specific VMware® permissions.
•
VMware Operator User: This role restricts the user to the VMware Environment and VMware Explorer dashboards only, except the Administration tab, and NetFlow Setting and Cisco Setting dialog boxes. Attempts to navigate to these elements result in the following message: Sorry. The view is not authorized.
•
VMware QuickView User: This role restricts the user to the VMware Environment dashboard only. Attempts to navigate to the VMware Explorer result in the following message: You are not authorized to access view “VMware Explorer”.
•
VMware Report User: This role grants access to the VMware Monitoring in Foglight for Storage Management reports only. None of the VMware views are accessible if this is the user’s only role. To work with reports, the user additionally requires the Reports Manager role.

For more information about roles, users, and security, see the Administration and Configuration Help.

Exploring the VMWare Agent Administration Dashboard

Exploring the VMWare Agent Administration Dashboard

The VMWare Agent Administration dashboard allows you to deploy remote agents, configure rules and set advanced platform options.

This dashboard consists of the Tasks tab, Rule Configuration tab, User Level Access tab, Black List Tab and the Agents view.

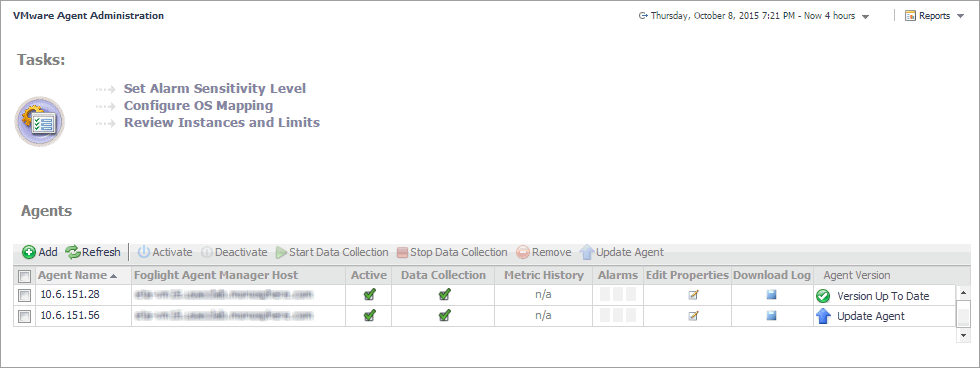

Figure 8. VMware Agent Administration dashboard

Rule Configuration tab

The Rule Configuration tab contains links to administrative tasks that you can initiate from this tab:

•
Set Alarm Sensitivity Level: Sets the level of alarms that the system generates, stores, and displays. For more information, see Setting the alarm sensitivity level.
Figure 9. VMware Agent Administration dashboard

Tasks tab

The Tasks tab contains links to administrative tasks that you can initiate from this tab:

•
Configure OS Mapping: Associates different versions of an operating system with a common OS name. For more information, see Creating OS mapping rules.
•
Review Instances and Limits: View existing VMware object instances. For more information, see Reviewing object instances and limits.
•
Metrics Collection Management: Configure the metrics collect by agent. For more information, see Configure Metrics Collection.
