Alarms view

This view displays a list of alarms generated against the objects or group of objects selected in the Quick-View. Use this view to quickly identify any potential problems related to a specific object.

Table 101. Description of the View

Data displayed	• Alarm Message. An explanation about why the alarm occurred.
	• Severity. The alarm severity icon: Warning, Critical, or Fatal.
	• Time. The time when the alarm was generated.
Where to go next	Drill down on:

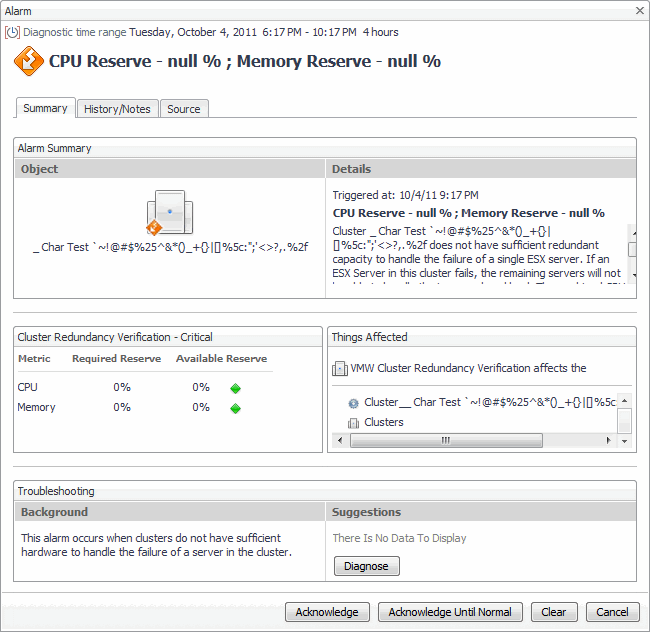

	• Alarm Message, Severity, or Time. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help. Figure 227. Alarm dialog box

Cluster Summary view

The Cluster Summary view shows the overall resource utilization and the amounts of system resource consumption for an ESX host cluster.

This view is made up of the following embedded views:

Table 102. Alarms

Description	Lists the alarms generated against the selected cluster.
Data displayed	• Alarm Message. An explanation about why the alarm occurred.
	• Severity. Indicates the alarm severity: Warning, Critical, or Fatal.
	• Time. The time when the alarm was generated.
Where to go next	Drill down on:
	• Alarm Message, Severity, or Time. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help. Figure 229. Alarm dialog box

Table 103. Related Items

Description	Shows the numbers and states of the cluster, ESX hosts, and virtual machines, all related to the selected cluster.
Data displayed	• Cluster. The name of the selected cluster, followed by the related alarm counts.
	• Datacenter. The name of the datacenter associated with the selected cluster.
	• Datastores. The number of datastores that are associated with the selected cluster, followed by the related alarm counts.
	• ESX Hosts. The number of ESX hosts that are associated with the selected cluster, followed by the related alarm counts.
	• Resource Pools. The number of resource pools that are associated with the selected cluster, followed by the related alarm counts.
	• Virtual Center. The name of the virtual center associated with the selected cluster, followed by the related alarm counts.
	• Virtual Machines. The number of virtual machines that are associated with the selected cluster, followed by the related alarm counts.
Where to go next	Drill down on:
	• Alarm count. Displays the Alarms dialog box that shows a list of all related alarms. For each alarm entry, it shows its severity, the time at which it was triggered, the rule name that triggered the alarm, and the alarm message. Figure 230. Alarms dialog box
	• Cluster. Displays the Clusters Inventory dwell, showing the name and state of the selected cluster. Figure 231. Clusters Inventory dwell
	• Datacenter. Displays the Datacenters Inventory dwell, showing the names and states of the datacenter associated with the selected cluster. Figure 232. Datacenters Inventory dwell
	• Datastores. Displays the Datastores Inventory dwell, showing the names and states of all datastores that are associated with the selected cluster. Figure 233. Datastores Inventory dwell
	• ESX Hosts. Displays the ESX Hosts Inventory dwell, showing the names and states of all ESX hosts that are associated with the selected cluster. Figure 234. ESX Hosts Inventory dwell
	• Resource Pools. Displays the Resource Pools Inventory dwell, showing the names and states of all resource pools that are associated with the selected cluster. Figure 235. Resource Pools Inventory dwell
	• Virtual Center. Displays the Virtual Centers Inventory dwell, showing the name and state of the virtual center associated with the selected cluster. Figure 236. Virtual Centers Inventory dwell
	• Virtual Machines. Displays the Virtual Machines Inventory dwell, showing the names and states of all virtual machines that are associated with the selected cluster. Figure 237. Virtual Machines Inventory dwell

Table 104. Resource Utilizations

Description	Shows the resource consumption for the selected cluster, broken down into four simple views.
Data displayed	• CPU Load. The current percentage of the CPU load, used by the ESX hosts that belong to the selected cluster to execute system code and user programs, based on the combined CPU capacity.
	• CPU Utilization, % Used. The percentage of the CPU utilization used by the ESX hosts that belong to the selected cluster to execute system code and user programs, during the selected time period.
	• CPU Utilization, % Ready. The percentage of the cluster’s CPU resources that is ready to execute system code and user programs during the selected time period.
	• Disk I/O. The current disk I/O rate for all ESX hosts that belong to the selected cluster.
	• Disk Utilization, Read Rate. The rate at which all ESX hosts that belong to the cluster read data from the disk, during the selected time period.
	• Disk Utilization, Write Rate. The rate at which data is written to the disks of all ESX hosts that belong to the cluster, during the selected time period.
	• Memory Utilization, Active. The amount of the available memory used by all ESX hosts that belong to the cluster during the selected time period.
	• Memory Utilization, Ballooned. The amount of physical memory that is actively being used by the VMware Memory Control Driver to allow the guest OS to selectively swap memory.
	• Memory Utilization, Shared. The amount of the virtual machine memory that is freed up due to transparent page sharing.
	• Memory Utilization, Swapped. The amount of memory that is stored in disk swap space
	• Network I/O. The current rate at which data is transferred from all ESX hosts that belong to the selected cluster to and from the network.
	• Network Utilization, Receive Rate. The rate at which all ESX hosts that belong to the selected cluster receive data from the network, during the selected time period.
	• Network Utilization, Send Rate. The rate at which data is transferred from all ESX hosts that belong to the selected cluster to the network, during the selected time period.
Where to go next	Drill down on:

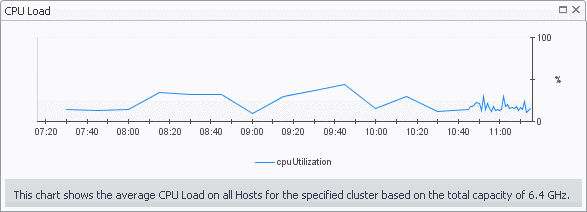

	• CPU Load spinner. Displays the CPU Load dialog box. Figure 238. CPU Load dialog box

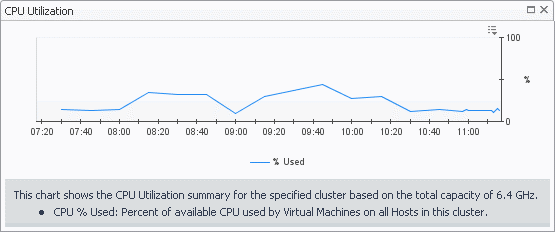

	• CPU Utilization graph. Displays the CPU Utilization dialog box. Figure 239. CPU Utilization dialog box

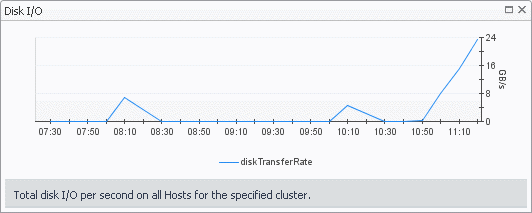

	• Disk I/O spinner. Displays the Disk I/O dialog box. Figure 240. Disk I/O dialog box

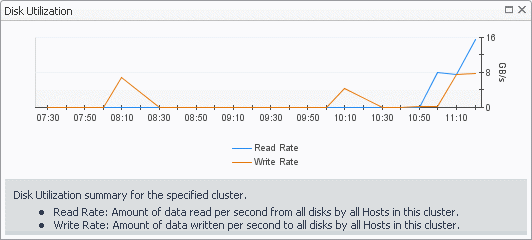

	• Disk Utilization graph. Displays the Disk Utilization dialog box. Figure 241. Disk Utilization dialog box

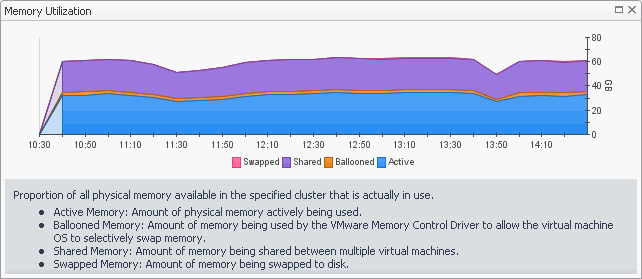

	• Memory Utilization graph. Displays the Memory Utilization dialog box. Figure 242. Memory Utilization dialog box
	• Network I/O spinner. Displays the Network I/O dialog box. Figure 243. Network I/O dialog box
	• Network Utilization graph. Displays the Network Utilization dialog box. Figure 244. Network Utilization dialog box

Summary - All Clusters view

The Summary - All Clusters view displays overall resource utilization information for a group of clusters, and shows the elements that consume the highest amount of system resources.

This view is made up of the following embedded views:

Table 105. Alarms

Description	Lists the alarms generated against the monitored system.
Data displayed	• Alarm Message. An explanation about why the alarm occurred.
	• Severity. Indicates the alarm severity: Warning, Critical, or Fatal.
	• Time. The time at which the alarm was generated.
Where to go next	Drill down on:
	• Alarm Message. Links to the Cluster Summary view .
	• Severity. Displays the Alarm Created dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help. Figure 246. Alarm Created dialog box
	• Time. Links to the Cluster Summary view .

Table 106. Top CPU Consumers

Description	Shows the top three clusters with the highest average CPU utilization.
Data displayed	• Cluster. The name of the cluster.
	• Used Hz. The amount of CPU processing speed used by each of the top three CPU consumers to execute system code and user programs, during the selected time range.
Where to go next	Drill down on:
	• Cluster. For more information, see Summary tab.

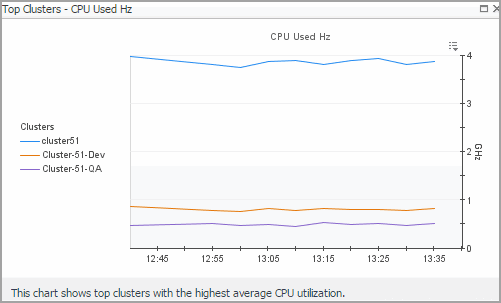

	• Used Hz (in the graph). Displays the Top Clusters-CPU Used Hz dialog box. Figure 247. Top Clusters-CPU Used Hz dialog box

Table 107. Top Disk Consumers

Description	Shows the top three clusters with the highest average disk utilization.
Data displayed	• Cluster. The name of the cluster.
	• Rate. The rate at which the top three disk consumers read or write data to the disk during the selected time range.
Where to go next	Drill down on:
	• Cluster. For more information, see Summary tab.
	• Rate (in the graph). Displays the Top Clusters-Disk Transfer Rate dialog box. Figure 248. Transfer Rate dialog box

Table 108. Top Memory Consumers

Description	Shows the top three clusters with the highest average memory utilization.
Data displayed	• Cluster. The name of the cluster that is one of the top three memory consumers.
	• Consumed. The amount of memory the top three memory consumers use during the selected time range.
Where to go next	Drill down on:
	• Cluster. For more information, see Summary tab.
	• Consumed. Displays the Top Clusters - Memory Consumed dialog box. Figure 249. Top Clusters - Memory Consumed dialog box

Table 109. Top Network Consumers

Description	Shows the top three clusters that are consuming most network bandwidth.
Data displayed	• Cluster. The name of the cluster that is one of the top three network consumers.
	• Rate. The rate at which the top three network consumers transfer data to or from the network during the selected time range.
Where to go next	Drill down on:
	• Cluster (in the table). For more information, see Summary tab.

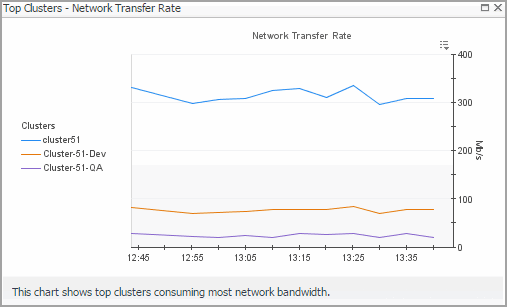

	• Rate. Displays the Top Clusters - Network Transfer Rate dialog box. Figure 250. Top Clusters - Network Transfer Rate dialog box

Clusters view

The Clusters view is a tree view. It lists the clusters that exist in your environment and shows their state.

Selecting the All Clusters node displays overall resource utilization for all clusters in your integrated system and the elements that consume the highest amount of system resources in the Summary - All Clusters view on the right. Similarly, selecting a cluster node shows cluster-specific metrics in the Cluster Summary view on the right.
