Foglight for SNMP 5.9.1 - User and Reference Guide

Hosts monitored only by SNMP

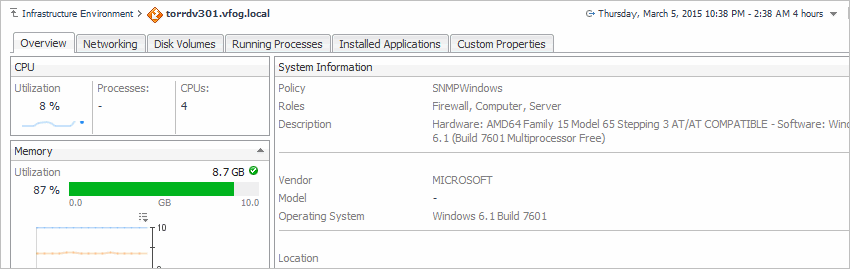

When a host is monitored by an SNMP agent only, just SNMP-related tabs are displayed. SNMP tabs include Overview, Networking, and Disk Volumes.

For more information about the detail displayed on the SNMP tabs, see Foglight for SNMP reference.

Hosts monitored only by an Infrastructure agent

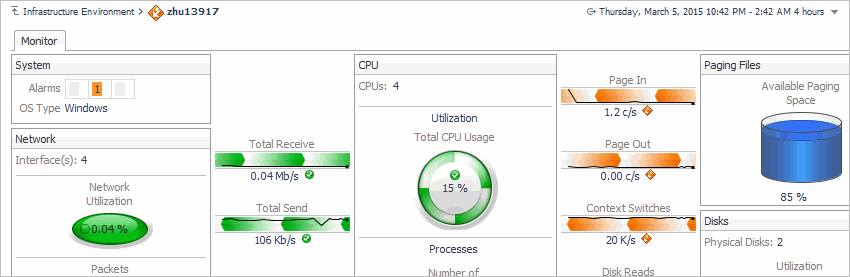

When a host is monitored by an Infrastructure agent only, one Infrastructure-related Monitor tab is displayed.

For more information on the Monitoring tab, see ‘Exploring the Monitoring Tab’ in the Foglight for Infrastructure User and Reference Guide.

Generating reports

Reports are a convenient way to share data about your monitored SNMP environment with others in your organization.

1
On the Infrastructure Environment dashboard, click Reports in the upper-right corner.
2
In the list that appears, click Hosts. This is the report associated with the Infrastructure Environment dashboard.
5
Optional — click the Schedule This Report check box to schedule the report delivery.
6
In the Retain box, specify the number of copies of the report to be retained, then click Next.

Foglight for SNMP reference

The SNMP Monitored Host view contains the following tabs:
