Foglight for SNMP 5.8.5.7 - User and Reference Guide

Hosts monitored only by SNMP

When a host is monitored by an SNMP agent only, just SNMP-related tabs are displayed. SNMP tabs include Overview, Networking, and Disk Volumes.
Figure 8. Example of a host monitored only by an SNMP agent.
For more information about the detail displayed on the SNMP tabs, see Foglight for SNMP reference.

Hosts monitored only by an Infrastructure agent

When a host is monitored by an Infrastructure agent only, one Infrastructure-related Monitor tab is displayed.

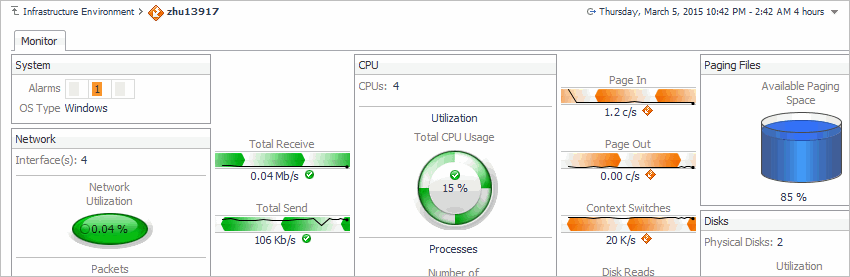

Figure 9. Example of a host monitored only by an Infrastructure agent.
For more information on the Monitoring tab, see ‘Exploring the Monitoring Tab’ in the Foglight for Infrastructure User and Reference Guide.

Generating reports

Reports are a convenient way to share data about your monitored SNMP environment with others in your organization.
To run the report associated with the Infrastructure Environment dashboard:
1
On the Infrastructure Environment dashboard, click Reports in the upper-right corner.
2
In the list that appears, click Hosts. This is the report associated with the Infrastructure Environment dashboard.
3
On the Set Input Parameters page of the Hosts report wizard, select the input parameters for the report from the Time Range and the Service lists. Click Next.
4
On the Set Properties page, type a name for the report, select a format for it, and type the email addresses of the people who should receive this report.
5
Optional — click the Schedule This Report check box to schedule the report delivery.
6
In the Retain box, specify the number of copies of the report to be retained, then click Next.
If you selected to schedule the report, the Select Schedule page appears. Continue with Step 7.
If you did not select to schedule the report, the Summary page appears. Continue with Step 8.
7
On the Select Schedule page, select a schedule type from the list of available options, or click New Schedule to define a custom schedule, then click Next.
8
On the Summary page, review the settings defined, then click Finish.
The report is generated and delivered to the recipients indicated in the report settings.

Foglight for SNMP reference

The SNMP Monitored Host view contains the following tabs:
•
Overview tab
•
Networking tab
•
Disk Volumes tab
•
Running Processes tab
•
Installed Applications tab
•
Custom Properties tab
