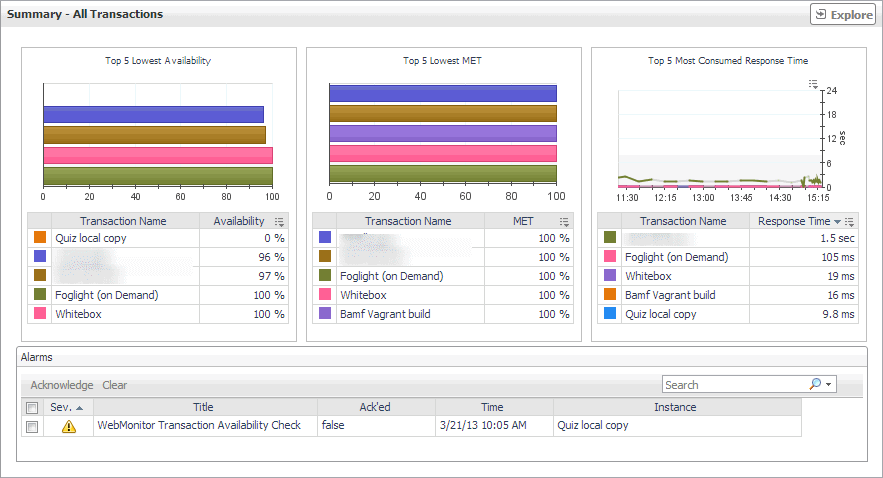

Summary - All Transactions view

Purpose

The Summary - All Transaction view displays overall response and availability information for the monitored transactions. It also identifies the transactions with the lowest availability, lowest MET (met expected time), and highest response time, showing the top five transactions in each of these categories.

How to get here
1
Navigate to the Performance Browser.
2
On the Monitor tab, in the Web Monitor Environment view, select the Locations tile.
3
In the Quick View, in the Transaction view, click All Transactions.
The Summary - All Transactions view appears on the right.
Description of embedded views

This view is made up of the following embedded views:

•
Alarms
•
Top 5 Lowest Availability
•
Top 5 Lowest MET
•
Top 5 Most Consumed Response Time
Alarms

Table 12. Alarms view
Description

Lists the alarms generated against the monitored transactions.

NOTE: To acknowledge or clear one or more alarms appearing in this table, select them and click Acknowledge or Clear, as required. For more information about alarms in Foglight, see the Foglight User Guide.
Data displayed
•
Ack’ed. Indicates if the alarm is acknowledged: true or false.
•
Instance. The name of the transaction against which the alarm is generated.
•
Severity. Indicates the alarm severity: Warning , Critical , or Fatal .
•
Time. The time at which the alarm is generated.
•
Title. The name of the rule that generated the alarm.
Where to go next

Drill down on:

•
Any row in this table. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.

Top 5 Lowest Availability

Table 13. Top 5 Lowest Availability view
Description

Shows the top five transactions with the lowest availability.

Data displayed
•
Availability. The percentage of times the Web site was available when the Web Monitor Agent attempted to collect information from it.
•
Transaction Name. The transaction name, associated with the monitored URL.
Where to go next

Drill down on:

•
Any row in this table. For more information, see Location drilldown view.
Top 5 Lowest MET

Table 14. Top 5 Lowest MET view
Description

Shows the top five transactions with the lowest MET.

Data displayed
•
MET. The percentage of times the Web site meets its acceptable response times, expected by the end user.
•
Transaction Name. The transaction name, associated with the monitored URL.
Where to go next

Drill down on:

•
Any row in this table. For more information, see Location drilldown view.
Top 5 Most Consumed Response Time

Table 15. Top 5 Most Consumed Response Time view
Description

Shows the top five transactions with the highest response time.

Data displayed
•
Response Time. The amount of time the Web site takes to respond to the Web Monitor Agent request.
•
Transaction Name. The transaction name, associated with the monitored URL.
Where to go next

Drill down on:

•
Any row in this table. For more information, see Location drilldown view.
