Foglight for Active Directory 5.8.3 - User Guide

Navigation basics Exploring Foglight for Active Directory dashboards Managing Active Directory agents Reporting on your Active Directory enterprise Foglight for Active Directory views
Forest views Domain views Site views Domain Controller views Description of embedded views
Address Book view Agent State view Asynchronous Thread Queue view Core Services view Database Access view Database Cache view Database Log Access view Database Performance Health view Defragmentation Tasks view DFS Namespace Service API Queue view DFS Namespace Service API Requests view DFS Namespace Service Referrals view DFS Replicated Folders view DFS Replication Connections view DFS Replication Service Volumes view DFS-R Performance Health view Directory Replication Inbound view Directory Replication Outbound view Directory Replication Sync view Directory Replication USN view Directory Services General view Directory Services Performance Health view Directory Services Reads view Directory Services Searches view Directory Services Writes view Domain Controller Details view Domain Controllers view FileReplicaConn Authentications/Bindings view FileReplicaConn Change Orders view FileReplicaConn Fetch view FileReplicaSet Authentications/Bindings view FileReplicaSet Change Orders view FileReplicaSet DS Communications view FileReplicaSet Files view FileReplicaSet Local Change Orders view FileReplicaSet Packets view FileReplicaSet Remote Change Orders view FRS Performance Health view FRS Replica Sets view FRS Staging Files view FSMO Roles view (Domain) FSMO Roles view (Forest) Host Monitor view Inter-Site Transports view Inventory By Category view IP Subnets view Key Distribution Center view LDAP view Memory view Network view Processor view Replication Performance Health view Resource Utilization view Security Accounts Manager view Server Health view Statistics view Storage view Summary and Resource Information view Top AD Metrics view Top 3 Consumers view Top 3 CPU Consumers view Top 3 DS Directory Reads/sec view Top 3 LDAP Bind Times view Top 3 Memory Consumers view Top 3 Network Consumers view Top 3 Replication Queue Length view Top 3 Storage Consumers view Trusts view USN Records view
Foglight for Active Directory rules Running diagnostic tests Managing Active Directory metrics

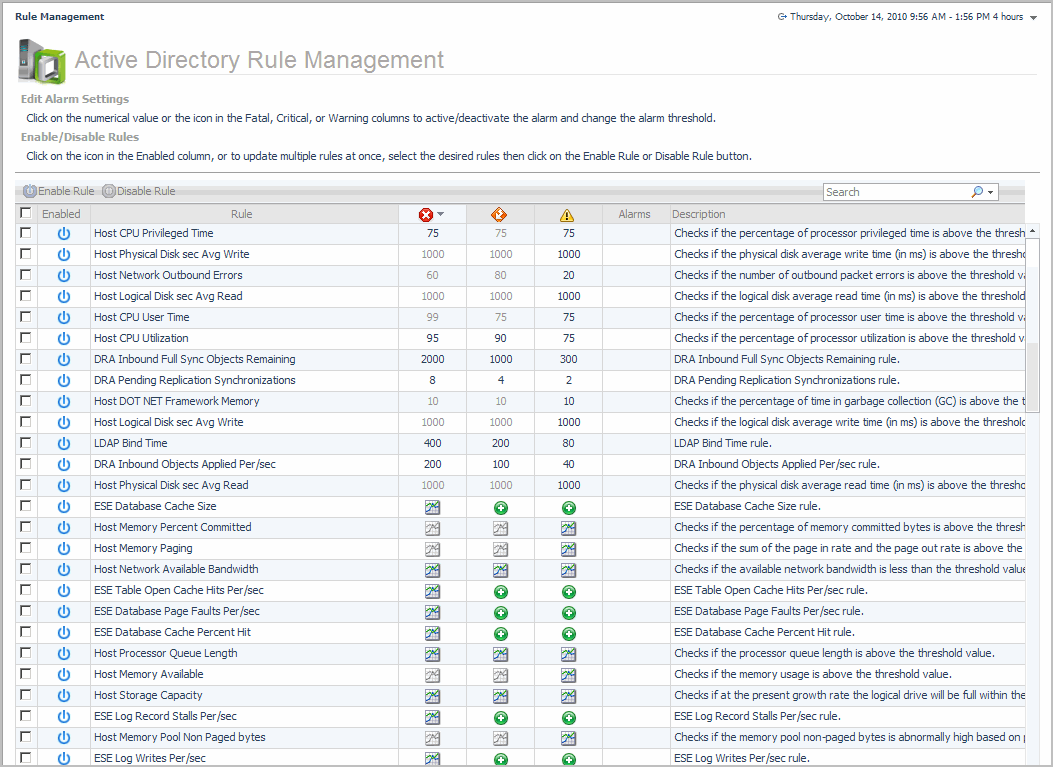

Active Directory Rule Management dashboard

The Active Directory Rule Management dashboard contains a sortable list of all the conditional severity rules used by Foglight for Active Directory. From this dashboard you can quickly see which conditional rules are enabled/disabled, the states (fatal, critical or warning) with active conditions, predefined alarm threshold values, rules with current alarms, and a brief description of each rule.

The Active Directory Rule Management dashboard displays the following information about Foglight for Active Directory rules.

Use the selection check box column to select one or more rules in the list. Once selected, you can enable or disable the selected rules using the buttons at the top of the table.

To select or clear all of the rules in the list, click on the check box in the heading row.

Enabled

Displays one of the following icons indicating whether the rule is enabled or disabled:

- Enabled

- Disabled

Clicking the icon in this column will either disable or enable the selected rule.

Rule

Displays the name of the rule.

Selecting the rule name launches the rule editor where you can view or edit the selected rule.

Fatal Condition:

The set rule icon indicates that a fatal condition is not yet defined for this rule. Selecting this icon displays a dialog allowing you to specify a value for the rule or launches the rule editor allowing you to define a fatal condition for this rule.

Critical Condition:

The set rule icon indicates that a critical condition is not yet defined for this rule. Selecting this icon displays a dialog allowing you to specify a value for the rule or launches the rule editor allowing you to define a critical condition for this rule.

Warning Condition:

The set rule icon indicates that a warning condition is not yet defined for this rule. Selecting this icon displays a dialog allowing you to specify a value for the rule or launches the rule editor allowing you to define a warning condition for this rule.

Alarms

Indicates the number of outstanding alarms for each rule.

Selecting the number in this column displays the alarms popup. From the alarm list on this popup:

Available In

Indicates the Exchange version in which the rule is available.

Description

Provides a brief description of the rule.

Managing Foglight for Active Directory rules

In addition to viewing Foglight for Active Directory rules, you can edit alarm thresholds and enable/disable rules using the Active Directory Rule Management dashboard.

For more detailed information on editing rules, see the Foglight Administration and Configuration Help.
If you selected a deactivated value, on the Threshold dialog, select the Activate check box and if desired modify the threshold value displayed. Select Update.
If you selected a deactivated graph icon, on the Edit Rule view, select the Activate check box on the Conditions, Alarms & Actions tab. If necessary, edit the conditions, alarms, actions, schedules, behavior or rule variable as required. After activating and/or modifying the condition, select Save All.
If you selected a rule or a graph icon, on the Edit Rule view, clear the Activate check box on the Conditions, Alarms & Actions tab. After deactivating the condition, select Save All.

Rules reference

Foglight allows you to create flexible rules that can be applied to complex, interrelated data from multiple sources within your distributed system. You can associate several different actions with a rule, configure a rule so that it does not fire repeatedly, and associate a rule with schedules to define when it should and should not be evaluated.

Different types of data can be used in rules, including registry variables, raw metrics, derived metrics, and topology object properties.

There are two types of rules in Foglight: simple rules and multiple-severity rules. A simple rule has a single condition, and can be in one of three states: Fire, Undefined, or Normal. A multiple-severity rule can have up to five severity levels: Undefined, Fatal, Critical, Warning, and Normal.

Rule conditions are regularly evaluated against monitoring data (metrics and topology object properties collected from your monitored environment and transformed into a standard format). Therefore, the state of the rule can change if the data changes. For example, if a set of monitoring data matches a simple rule’s condition, the rule enters the Fire state. If the next set does not match the condition, the rule exits the Fire state and enters the Normal state.

A rule condition is a type of expression that can be true or false. When it evaluates to true, the rule is said to fire, causing any actions that are associated with the rule or severity level to be performed. You can configure a rule to perform one or more actions upon entering or exiting each state. When a multiple-severity rule fires, an alarm also appears in Foglight.

Foglight for Active Directory includes several conditional severity rules. In addition, this cartridge may use some of the Host Monitoring rules.

For more information, see the Foglight Administration and Configuration Guide or online help.



Running diagnostic tests

The Foglight for Active Directory provides diagnostics tests to help you detect and analyze Active Directory® problems. Using the Diagnostic Tests dashboard, which is available in Foglight for Active Directory, you can view a list of diagnostic tests that are available as well as run a test immediately or define a schedule for when a test is to be run.

This section describes the components of the Diagnostic Tests dashboard and explains the tasks that can be performed from this dashboard. It also provides a description of the diagnostic tests that are available in Foglight for Active Directory to detect and analyze your Active Directory environment.
