Deployment Options

Change Auditor can be configured to audit and report on one or many Active Directory forests to facilitate searching for compliance audit data. There are two deployment options available to you:

•
Multi-forest deployment which requires at least one coordinator in each monitored forest. This option provides full auditing support.
•
Foreign forest deployment with agents running on a domain-joined server, domain controller, or workstation connected to coordinators in a foreign Active Directory forest. This option allows for improved centralization of agent management while providing most core Change Auditor functionality. For details on the level of support, see Supported functionality.

The following section outlines the support, requirements, recommendations and steps for deploying agents, and example deployments for these deployment options:

•
Multi-forest deployment
•
Foreign forest agent deployment

Multi-forest deployment

•
Requirements
•
Example deployment scenario
•
Configuration

Requirements

The following must be in place for multi-forest deployments:

•
Network connectivity between each monitored forest.
Coordinators in all forests connect directly to the SQL server that is hosting the Change Auditor audit database.
Coordinators must resolve the host name of the SQL server or must be configured to use the IP address of the SQL server.
•
At least one coordinator deployed in each forest.
The coordinator collects and maintains the topology information for each forest. This includes domains, sites, domain controllers, and member servers. The coordinator is also responsible for:
•
Sending alerts by email, SMNP, or WMI
•
Sending agent configuration settings, auditing and protection templates
•
License enforcement
•
Agent status updates
•
Agent installation and upgrade
•
Auto deployment
•
Event statistics
•
Group membership expansion
•
Change Auditor groups created in each forest.
To connect to coordinators in other forests, users must be added to either the ‘ChangeAuditor Administrators — <InstallationName>’ OR ‘ChangeAuditor Operators — <InstallationName>’ in the forest where the coordinator is joined.
•
Credentials for the Microsoft SQL server backend.
Depending on whether the Active Directory forests have a trust in place, you need to configure Change Auditor to use the appropriate SQL credentials.
Scenario A — One or more of the forests do not have a valid trust in place.
The coordinator that is not part of the same forest where the SQL server is joined to, must be configured to use a SQL user account or a Domain Account from the forest where the SQL server resides.
Scenario B — All forests have a valid trust in place.
Each of the coordinators may be configured to use either authentication type. Both Windows or SQL user accounts may be used in each of the forests.

Example deployment scenario

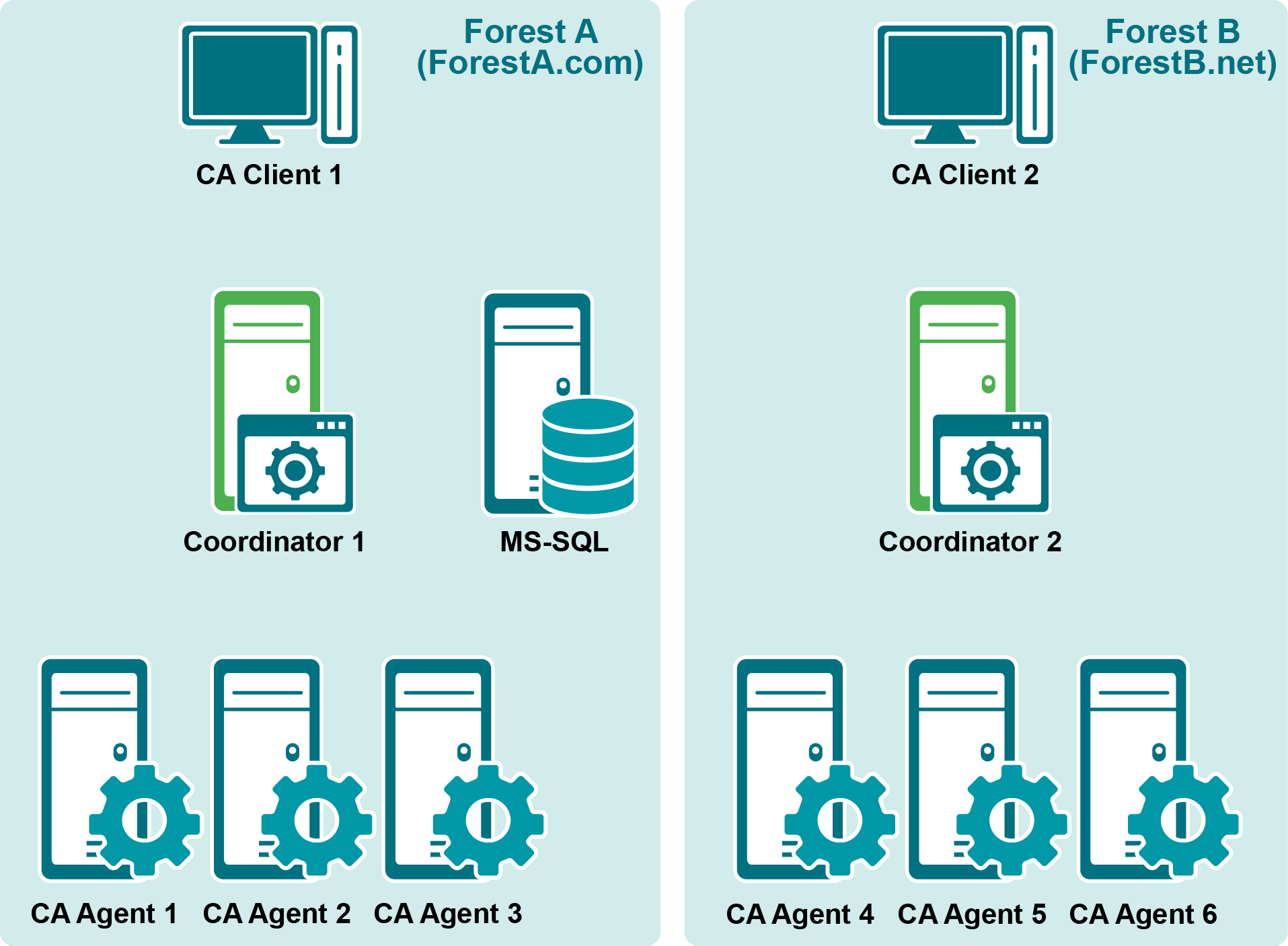

The following diagram shows two separate forests where Change Auditor will be deployed. Forest A is deployed first and the Forest B is added.

Forest A installation

1
Install the coordinator on a member server in Forest A. In this example, Coordinator1.ForestA.com is used as the coordinator server.
•
While installing the first coordinator, make note of the “Installation name”. The same installation name is used to deploy the coordinator in Forest B (ForestB.net).
•
Also take note of the SQL Server host and credential information. This server and account will also be used in the second forest. The required information is as follows:
•
SQL Server host name or IP address AND Instance name if applicable
•
Database or Catalog name
•
User name, password, and domain if applicable
2
Install the client on either a workstation or member server. In this example, CAClient1.ForestA.com is used as the client computer.
3
Using the client, connect to the coordinator in Forest A to deploy Change Auditor agents on to the domain controllers and/or member servers in Forest A. See Deploy Change Auditor Agents for more details about deploying agents.
4
At this point, Change Auditor should be fully deployed to the first forest in the organization (ForestA.com in this example).

Forest B installation

1
Install the coordinator on a member server in Forest B. In this example, Coordinator2.ForestB.net is used as the coordinator server.
•
While installing the second coordinator, you must use the ‘Installation name’ that was selected in the first forest.
•
During the installation of the second coordinator, use the same SQL server and database name used in the first coordinator’s installation. The Windows or SQL user account may be different than the account used in the first installation.
•
Quest recommends that the same database access account used in the first forest is also used in the second forest. If a different user account for database access is used in the second coordinator's installation, the following permissions must be granted before the installation is started:
•
db_owner database role on the Change Auditor database
•
dbcreator server role
2
Install the client on either a workstation or member server. In this example, CAClient2.ForestB.net is used as the client computer.
3
Using any client, connect to the coordinator in Forest B to deploy agents on to the domain controllers and/or member servers in Forest B.
4
Change Auditor is now fully configured to collect audit data from both forests into a single database. Reports and alerts can be run from any client to return data related to one or all the deployed forests.
5
You can deploy more forests by following steps 5 through 9.
