Quest VROOM 1.3 - User Guide

Core Servers table

The Core Servers table shows a list of core servers that exist in the monitored Rapid Recovery environment.

Table 4. Description of the Core Servers table
Data displayed
•
Server Name. Shows the name of Rapid Recovery Core.

•
Machines. Shows the amount of machines in this Rapid Recovery Core.

•
Protected Spaces. Indicates the amount of storage space protected by this Rapid Recovery Core.
Where to go next

Drill down on:


•
Server Name. Click this column to show links to Infrastructure Health and Rapid Recovery Core Server.

Rapid Recovery Agents table

The Rapid Recovery Agents table shows a list of agents that exist in the monitored Rapid Recovery environment.



Table 5. Description of the Rapid Recovery Agents table
Data displayed
•
Name. Shows the name of Rapid Recovery Core Server or cluster.

•
Status. Indicates whether the machine connectivity is Online, Failed, Paused, or Unreachable.

•
Protected Space. Indicates the amount of protected storage space.



Protected Status Tab - Rapid Recovery

The Protected Status view of the Protection dashboard shows the unprotected virtual machines and unmonitored Rapid Recovery Protected virtual machines on the monitored Rapid Recovery Core. The Protected Status view includes the following two tables:

•
Unprotected Virtual Machines: For more information, see Unprotected Virtual Machines table.
•
Unmonitored Rapid Recovery Protected Virtual Machines: For more information, see Unmonitored Rapid Recovery Protected Virtual Machines table.

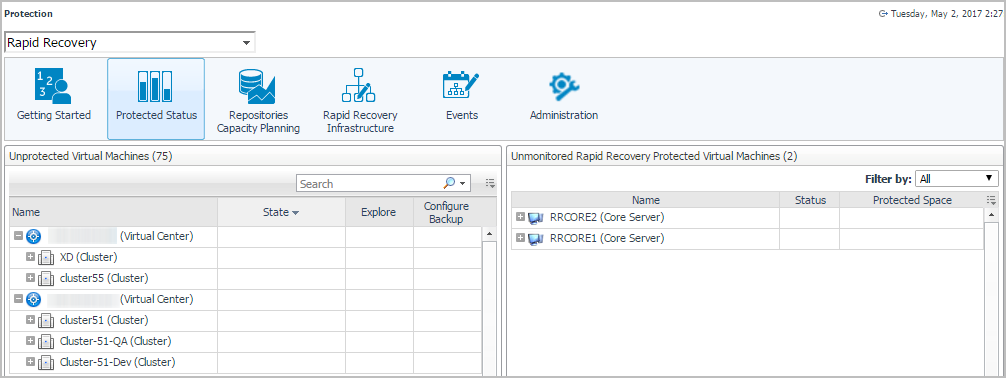

Figure 5. Protected Status view

To access the Protected Status view:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Protection.
The Protection dashboard opens.
4
Use the Group selector located at the top of the dashboard to select the protection environment that you want to monitor.
5
On the menu bar, click the Protected Status tab.
The Protected Status view appears at the bottom of the Protection dashboard.

Unprotected Virtual Machines table

The Unprotected Virtual Machines table shows a list of virtual machines that are monitored by the Foglight for VMware, but not backed up in the monitored Rapid Recovery environment.


Table 1. Description of the Unprotected Virtual Machines table
Data displayed
•
Name. Shows the name of virtual machine.

•
State. Indicates whether the virtual machine is Powered On, Powered Off, or Suspended.

•
Explore. Shows the link to the Virtual Machine Explorer dashboard.

•
Configure Backup. Shows the link to the Rapid Recovery Core Server.
Where to go next

Drill down on:


•
Explore. Click to navigate to the VMware Explorer dashboard. For more information, refer to the Foglight for VMware User and Reference Guide.

•
Configure Backup. Click to allow user to choose Rapid Recovery Core server for backup.
