About Shared Virtual Tape Libraries

NetVault Shared Virtual Tape Libraries (SVTLs) extend the VTL implementation by allowing you to share a VTL with multiple NetVault machines for LAN-free backups.

SVTLs are supported on the following platforms:

The interface can be Fibre Channel, iSCSI, or SCSI. On Linux and Solaris platforms, SCSI_FCP protocol is also supported. The disks can be of any size. However, operating system-imposed limitations do apply. The SVTL size can be changed during runtime using CLI utilities.

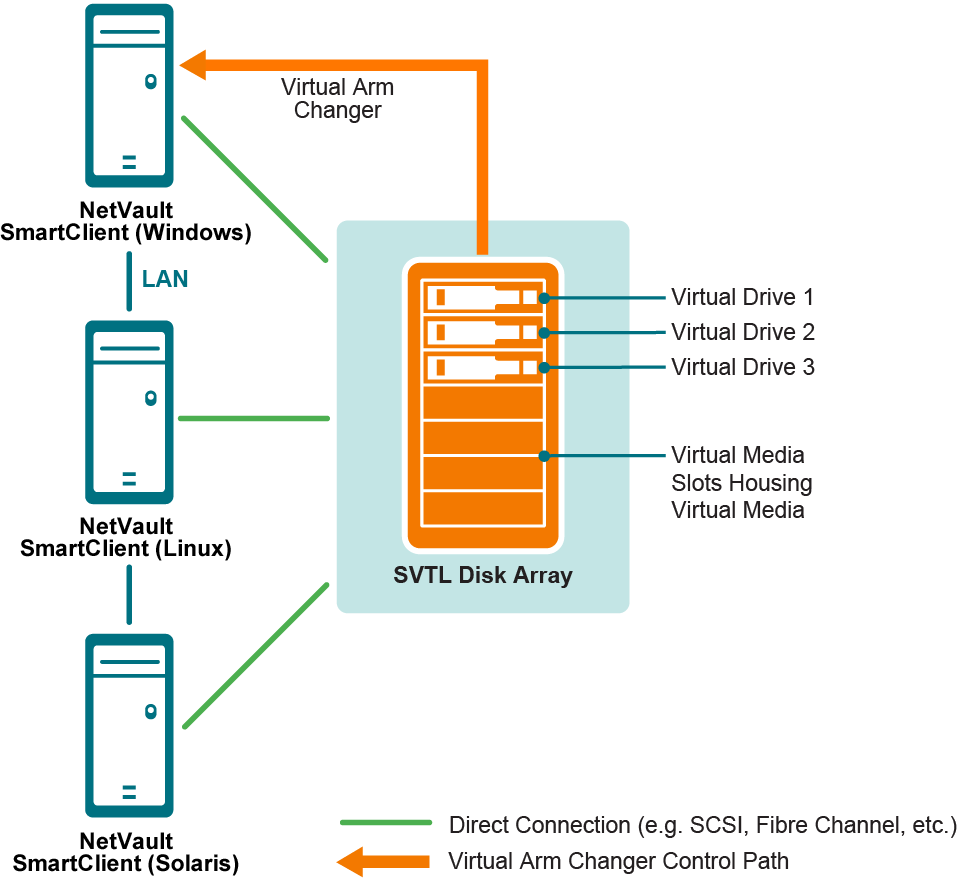

Figure 12. SVTL

SVTL considerations

Before setting up an SVTL, consider the following:

SVTL prerequisites

Before creating an SVTL, verify that the following requirements are met:

Binding is performed using a utility named raw, which is normally supplied by the Linux distributor.
On Solaris systems hosting the SVTL or sharing the drives, specify the SCSI ID and LUN values for the applicable disks and volumes in the file /kernel/drv/sd.conf. This requirement is applicable only if you are using a disk or RAID volume on a SAN. Use the following format to specify the values:

To set up raw I/O on Linux-based systems, you require the following:

A raw device controller named /dev/rawctl or /dev/raw. If the controller is not present, type the following command to create a symbolic link:

The following example shows how to set up raw I/O on Linux:

1
At the prompt, type the following command to display information from the file devices.txt. You can find this file in the /usr/src/linux/Documentation directory:

If you require /dev/raw/raw1 and /dev/raw/raw2, follow the same procedure using the proper numbers listed in the devices.txt file and set the same permissions.

The following example shows how to set up raw I/O on Red Hat Linux. The raw partition used is /dev/sda.

3
For persistent binding, open the /etc/sysconfig/rawdevices file and append the following line:

The raw devices interface has been deprecated in Red Hat Enterprise Linux 5; the raw device mapping is now performed using udev rules. To correctly map the raw device, add the appropriate entries to the /etc/udev/rules.d/60‑raw.rules file in the following format:

Here <device name> is the name of the device that you want to bind (for example, /dev/sda1), A and B are the major or minor numbers of the device you want to bind, and X is the raw device number that you want the system to use.

If you have a large pre-existing /etc/sysconfig/rawdevices file, convert it using the following script.

On SUSE Linux, administer the raw disk partitions in the /etc/raw file. This plain text file contains comments and examples for possible configurations. After creating the raw devices, bind the raw devices by starting them with the script /etc/init.d/raw. Use the chkconfig(8) utility to ensure that the raw device binding occurs after any restart.

Creating and adding an SVTL

You can use the configuration wizard to create and add an SVTL. When creating an SVTL, you can choose the number of virtual tape drives and slots, and specify the media capacity. After the device is created, you can assign the drives to different clients or share the drives with multiple clients.

1
In the Navigation pane, click Guided Configuration, and then on the NetVault Configuration Wizard page, click Add Storage Devices.
In the Navigation pane, click Manage Devices, and then click Add Device.
2
On the Add Storage Devices page, select the Shared virtual tape library option, and click Next.
4
On the Add Shared virtual tape library page, provide the following details.

Library Device

Select the target drive. Depending on the operating system, the list includes the following items:

Windows: PhysicalDrive1, PhysicalDrive2, and so on
Linux: /dev/raw/raw1, /dev/raw/raw2, and so on
Solaris: /dev/rdsk/c0t0d0s0, /dev/rdsk/c1t1d0s0, and so on

Device Description

Displays the disk type.

Device Size

Displays the disk size.

Device Block Size

Displays the block size.

Previously Formatted as SVTL?

Indicates whether the selected disk was previously formatted as an SVTL.

Barcode Prefix

The NetVault Server automatically generates a barcode prefix and assigns it to the media used by the device. If you want to change it, type a unique code for the device.

Number of Drives

Type or select the number of drives for the SVTL. The number of drives can be more than the number of NetVault Clients currently connected to the disk. The additional drives can be used in future to connect more clients.

Number of Media Items

Type or select the total number of slots that hold the media.

Media Capacity

Type or select the media size. The media size is specified in MiB.

When creating an SVTL, NetVault uses a few megabytes of space to store some information about the SVTL on the disk. Take this requirement into consideration when you configure the media capacity.

5
To determine the disk space requirements for the SVTL, click Calculate Size Required. If the required disk size is larger than the actual disk size, reduce the Media Items and Media Capacity.
6
Password: Type the NetVault password for the server.
Confirmation Phrase: Type the text FORMAT SVTL.
Click Format to format the disk and create the SVTL.
You can use this default configuration if all drives are to be controlled by the client selected in Step 3. In this case, click Add Library. Information message appears. Close the message to exit the configuration wizard.
a
In the Choose Machine table, select the client to which the drive is attached. If the device is connected to multiple clients, select any one client. Click Next to scan the selected client and list the attached devices.
b
In the Choose drive for bay table, select the device that you want to add, and click Next.
c
If the device is connected to multiple clients (for example, in a SAN setup), all host clients are listed in the Choose Machines table. To share the drive with multiple clients, select the additional clients in the Choose Machines table, and click Next.
