Foglight Capacity Director 7.1.0 - User Guide

Using Foglight Capacity Director

Foglight® Capacity Director delivers an essential capacity management for virtual infrastructure. Get deep insight into your environment, including the availability and estimated time left for CPU, memory, storage, and Input/Output Operations Per Second (IOPs). Use historical trends to better forecast resource requirements for clusters, hosts, and workloads—and proactively predict and budget for capital expenditures.

The Foglight Capacity Director User Guide is intended for:

Foglight Capacity Director replaces the functionality previously offered in Foglight Capacity Management in the VMware® and Hyper-V environments.

This section introduces you to the Foglight Capacity Director environment, and provides you with essential information.

For more information, see the following topics:

Installation requirements

Foglight Capacity Director comes installed on Foglight Evolve and can be installed on a Foglight Management Server.

Foglight Capacity Director requires the following cartridges for data collection:

NOTE: After installing the Virtual-VMware-7.1.0.car cartridge, existing vCenter agents (VC agents) must be updated using the Update Agent button in the VMware Environment > Administration tab.

While Foglight Evolve comes with these cartridges pre-installed and enabled, a stand-alone Foglight release requires that these components be installed on the Foglight Management Server. The sequence of cartridge installation is important because of their dependencies. For more information about installing Foglight Capacity Director , and for details about system requirements and version compatibility, see the Foglight Capacity Director Release Notes.

Data collection

The VMware Environment dashboard displays all virtual or physical VMware servers (target machines) being monitored by Foglight Evolve. No further setup is required.

Dashboard location and UI elements

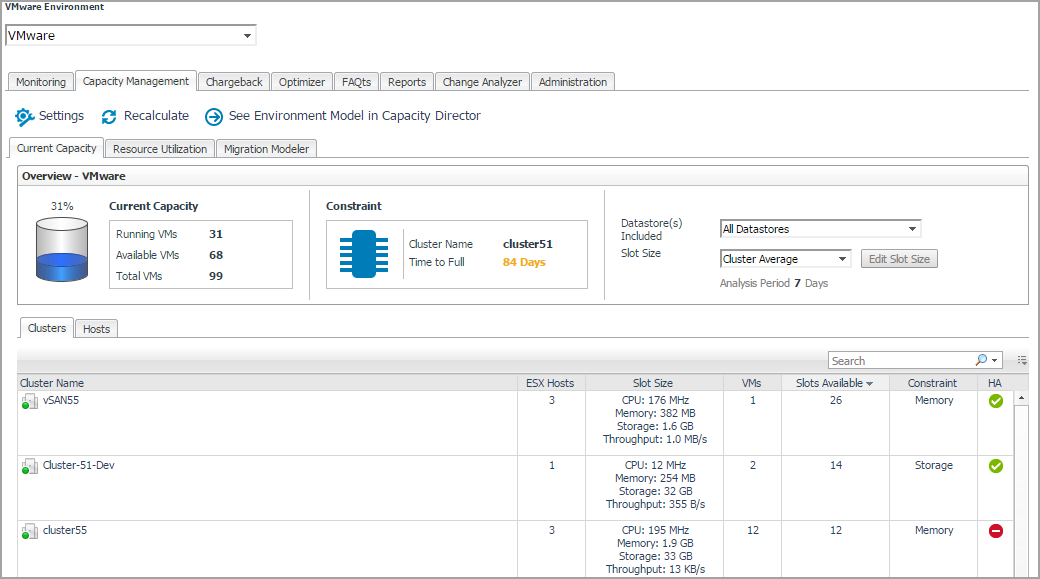

After installing Foglight Capacity Director , the Capacity Management tab appears in the VMware Environment dashboard.

To open the navigation panel, click the right-facing arrow on the left.

The Capacity Management tab consists of the following UI elements:
