SQL Formatter Window

SQL Formatter > SQL Formatter Window

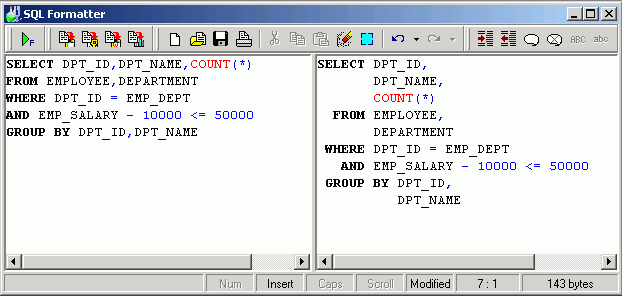

The SQL Formatter window is divided into two sections:

Left Pane (Original SQL)

Provides an area for entering the SQL statement to be formatted.

Right Pane (Formatted SQL)

Displays the formatted SQL statement after the Format function is executed. Parameters, forces and comments are highlighted for ease of recognition. The color of the text is dependent on the syntax highlight definition set under the Editor tab in the Preferences.



Related Topics

Format a SQL statement

SQL Formatter > Format a SQL statement

The SQL Formatter checks the syntax of the SQL statement. The SQL statement is formatted only if the syntax is correct. The right pane [Formatted SQL] of the SQL Formatter window shows the formatted SQL statement. If the SQL statement has an invalid object, that object is highlighted in maroon (default color).

If you open the SQL Formatter with the SQL Optimizer as the active window, the SQL statement from the SQL Optimizer window is automatically copied to the SQL Formatter window. Otherwise, enter a SQL statement into the left pane of the SQL Formatter window.

To format a SQL statement

  1. Click image\B_SQLFormatter.gif.

  2. Enter the SQL text.

  3. Click image\B_Format.gif to format the SQL statement.

To help in the construction of SQL statements

Use these functions:

To terminate the format process

Click image\B_AbortFormat.gif.

Note: The SQL Format supports only a single SELECT, SELECT INTO, DELETE, UPDATE, and INSERT SQL statement.



Related Topics

Parameters within SQL Formatter

SQL Formatter > Parameters within SQL Formatter

SQL statements can have parameters either prefixed with a "@" sign or without the "@". If parameters are recognized, they are highlighted in red (default color) after executing the Format function.

Note: If table names are in maroon (default color) it indicates that the table and corresponding columns are not recognized. Check that:

  • The login user has sufficient privilege to access the table.

  • You are connected to the correct database or set user.

  • Make sure you have the most up-to-date database information in memory. If not, execute the Synchronize Data Dictionary function from the Database menu.



Related Topics

SQL Formatter Functions

SQL Formatter > SQL Formatter Functions

Below is a list of available functions available in the SQL Formatter window.

Button or Menu Function

SQL Menu

image\B_Format.gif image\B_AbortFormat.gif

Format/Abort Format

Edit Menu


Send to SQL Optimizer

Edit Menu


Send to Index Advisor

Edit Menu


Copy to SQL Worksheet

File Menu

Save SQL to SQL Repository



Syntax Highlight



Auto Correction



Bracket Pairing



Argument Lookup



Member Lookup

Edit Menu


Indent

Edit Menu


Outdent

Edit Menu


Comment

Edit Menu


Uncomment

Edit Menu


Uppercase

Edit Menu


Lowercase



Related Topics
