Spotlight® on SAP ASE Toolbar

The Spotlight on SAP ASE toolbar is located at the top of the main application window, or Home Page. The toolbar provides you with quick access to commonly used commands and functions. Click once on a toolbar button to carry out the command.

For a description of what each button does, rest your mouse pointer over the button in Spotlight® on SAP ASE. Drilldown buttons also display a hot key. If a button appears dimmed, it is unavailable.

There are two kinds of buttons on the Spotlight on SAP ASE toolbar:



Spotlight® on SAP ASE Menus

Spotlight on SAP ASE has two different types of menus:

  • Shortcut menus displayed when you right-click an object in a Spotlight home page or in a drilldown.

    The Home Page uses a single shortcut menu for every element on the page. This menu consists of:



Spotlight® on SAP ASE Options Window

You can set several options that affect the behavior and display of Spotlight on SAP ASE via the Spotlight on SAP ASE Options window. These options include:



Connect to SAP ASE

Use this procedure to establish a connection with Adaptive Server instance. Spotlight® on SAP ASE supports simultaneous connections to multiple servers. This eliminates the need to run concurrent versions of the application. Repeat the following procedure to connect to another server.

Before you connect

Before you begin the connection, the following must be in place:

  • Ensure that the Adaptive Server is accessible to client applications.

  • To utilize the full functionality of Spotlight® on SAP ASE to monitor your Adaptive Server instance requires using a login (defined in the Spotlight connection) with the following criteria:

    • For ASE versions 11.9.2.x, 12.0.x, and 12.5.0.x (prior to 12.5.0.3), either the "sa" or a login with the "sa_role". In addition, to see the SQL statements the account needs the "sybase_ts_role".

    • For ASE versions 12.5.0.3 and newer, the "sa" or a login with the "sa_role". In addition, the new role "mon_role" is needed for the account.

      Notes:

      • If you are unsure whether you have this access, contact your Database Administrator (DBA).
      • If your account does not meet the above criteria, Spotlight® on SAP ASE will not show several graphs and charts that monitor an ASE. (See Using Spotlight with a limited access login account).

Make the connection

To connect to SAP Adaptive Server Enterprise

  1. Start Spotlight® on SAP ASE.

  2. Open the Spotlight Connection Manager.

  3. Select Spotlight® on SAP ASE icon in the panel to the left.

  4. Double-click the New Connection icon.

  5. Complete the following fields in the New Connection window.

    Field

    Description

    Select connection type

    Choose Spotlight® on SAP ASE from the drop-down list if it has not already been selected.

    New connection name

    Choose a short and meaningful name for the new connection.

  6. Click OK to save the details of the new connection, and create an icon for that connection in the Connection manager.

  7. Complete the following fields in the New Connection Properties window.

    Field

    Description

    ASE Server

    The name of the Adaptive Server that is to be monitored.

    Note: If a client has been installed on the machine that Spotlight has been installed on, Spotlight attempts to find the SQL.INI file. If found, and the ASE Server is in that list, Spotlight will automatically complete the Host Name and Port fields.

    Host Name

    The name of the specified host machine that the Adaptive Server is running on.

    Note: This corresponds to the host field in the SQL.INI file.

    Port

    The port that the specified Adaptive Server is listening on.

    Note: This corresponds to the port field in the SQL.INI file

    Login Name

    The login used to connect to the Adaptive Server.

    Note: Remember that using a login that is the ASE system administration (”r;sa”) or an account with the ”r;sa_role” and ”r;sso_role” will allow full monitoring of an Adaptive Server and automatically handle all issues for Spotlight to monitor the Adaptive Server. If using a non-sa account, then have a DBA follow the steps in the "Using a non- ”r;sa” Login" section in the Getting Started Guide before attempting to open this connection to the Adaptive Server.

    Password

    The respective password for the login entered.



    Host Connection Details

    Monitor OS

    Select this check box to monitor the operating system.

    Host Username

    The username you use when logging on to the machine.

    Host Password

    The password you use when logging on to the machine.

    Host Type

    Choose the type of Spotlight connection to make to the machine. The current set of options are Windows, Unix/SSH or Unix/Rexec.

    Note: If you are connecting to a UNIX host first make sure that Rexec or SSH is installed.

    Domain

    If you are connecting to a Windows host, then the domain field is the name of the domain that the specified user belongs to. If no user name is entered in the Host username field, this field should also be left blank.

    Host port

    If you are connecting to a Unix/SSH host then enter the port number that Spotlight will use for its SSH (secure shell) connection to the UNIX host. The default value is 22.

    Save password details (for this connection)

    Select this check box to save passwords whenever you add a new connection.

  8. Click OK to create the connection.

Using Spotlight with a limited access login account

For Pre-ASE v12.5.0.3

Any data retrieved from ASE using the sysmon utility will not be available from within Spotlight.

  1. Decide on the Login that will be used by Spotlight.

  2. Contact your DBA, and have him run nonsasetup.exe located in the following path:

<Install Directory>\Spotlight\Plug-ins\SoSyb

Notes:

  • This executable needs to be run to create some Spotlight stored procedures, to grant permissions on master sysengines, to add mon_role and other required roles to the login account and to set up SAP MDA API by turning on and tuning the respective server parameters.
  • The nonsasetup.exe dialog box is shown below in "nonsasetup.exe Dialog Box".

For ASE v12.5.0.3 and newer

  1. Decide on the Login that will be used by Spotlight.

  2. Contact your DBA, and have him run nonsasetup.exe located in the following path:

<Install Directory>\Spotlight\Plug-ins\SoSyb

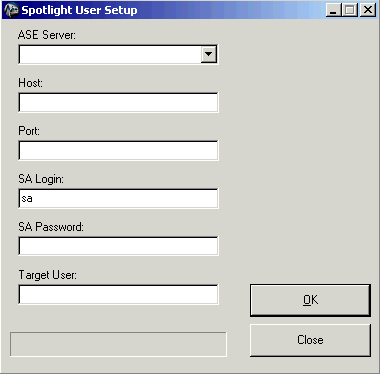

nonsasetup.exe Dialog Box

The nonsasetup.exe dialog box is shown below.

The fields on this dialog are defined in the following table:

Field

Description

ASE Server

Name of the specified ASE Server.

A list of defined servers is displayed in the drop-down. Choosing an existing server will automatically complete the Host and Port fields.

Host

The name of the specified host machine that the Adaptive Server is running on.

Note: This corresponds to the host field in the SQL.INI file.

Port

The port that the specified Adaptive Server is listening on.

Note: This corresponds to the port field in the SQL.INI file.

SA Login

Defaults to "sa". Keep the "sa" or enter a login that has the "sa_role" and "sso_role" granted to it.

SA Password

Password required to log onto the specified server as SA.

Note: This application requires an SA connection to correctly install and establish permissions

Target User

Login of the non-SA user for whom privileges will be established.

Not specifying a target user will still install procedures and setup the server for Spotlight monitoring.


After you have entered the necessary information in the fields, press OK to begin setup.

A progress bar shows setup progress, and a message displays when setup is complete.

Press Close to close the application.
