erwin Enterprise Architect Agile v3 - User Guide

erwin EA Agile_V3_User Guide
Administration MetaModel Data Source Views Diagrams Top Tips

Diagram Context Menu Structure

Diagram Context Menu Structure

Right clicking in blank space provides the following options

Insert

Existing Objects

Text

Display

Relationships

All

Visible

Hidden

Right clicking on an Object provides the following options

View Objects

Add related objects

Node Styles

Convert to Box

Convert to Small

Resize

Text

Increase/decrease and a range of size value

Colorize

Text

Icon

Display

Order

Bring to Front/Send to Back/Increase/Decrease

Duplicate Node

Remove Node

Delete Object

Right clicking on a relationship provides the following options

Reset Link Shape

Represent as Box

Parent choices

Line color

Hide Relationship

Delete Relationship

Top Tips

Top Tips

Creating a Static Link to a View

Creating a Static Link to a View



You can reference views externally to the product. For instance you want to store a reference to a Business Term or an Application object page.

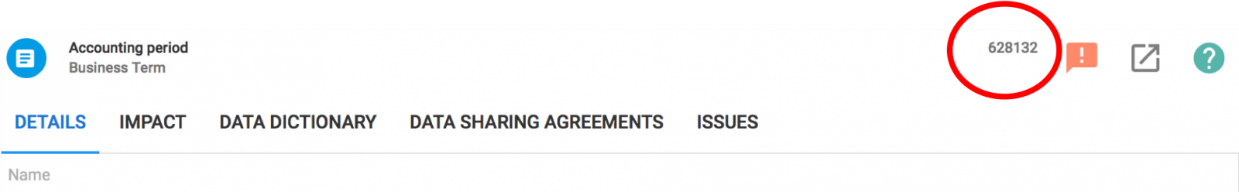

To do this you will need the Object ID found in the top right hand corner of Object views

You can then add this ID to the following URL, replacing the part [object_id]

https://myerwin.io/dg#views/default?mode=viewing&contextId=[object_id]
