Manage Classifications

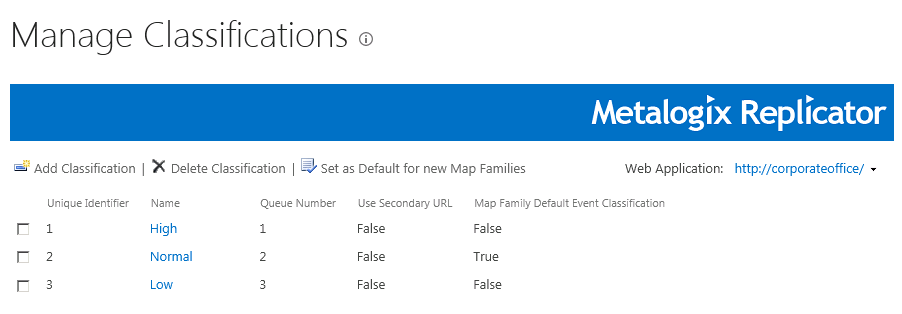

The Manage Classifications page, accesses from the Application Management page in Central Administration. This page is used to manage classifications, which can be applied to map families on the Configure Map Family page, when adding a map family or while editing the settings of current map families.

METALO~3_img69

Refer to the following table for information on the Manage Replication Connections screen.

Parameter

Description

Web Application

Select which Web Application is being configured.

To change the Web Application, click the field and select another Web Application from the list.

Unique Identifier

This is the number used to match classifications on other web applications.

Name

This is the name of the classification

Queue Number

This number determines the order in which packages are queued for replication. If two or more classifications have the same Queue Number, then they will have packages sequenced together.

Use Secondary URL

This is a True or False value. When true, packages will be transferred from the connection's secondary URL.

Default

This is a True or False value, and indicates whether the classification is the default classification for new map families.

Click Add Classification to configure a new Classification, or select a classification from the Classification list to edit its values. In both cases, the Configure Classification page opens.

Select one or more classifications from the list and click Delete Classification to delete a classification.

Select a classification and click Set as Default for new Map Families in order to set that classification as the default when creating a new map family.

Configure Classifications

The Configure Classification page is accessed by selecting a classification on the Manage Classification page.

METALO~3_img70

Web Application

This is the web application that was selected on the Manage Classifications page.

Classification Settings

These are the various settings which can be customized for classifications. Refer to the following table for information on the Classification Settings section.

Parameter

Description

Unique Identifier

This is the number assigned to the classification

Name

This is the name of the classification

Queue Number

This number determines the order in which packages are queued for replication. If two or more classifications have the same Queue Number, then they will have packages sequenced together.

Use Secondary URL

Selecting this option causes events using this classification to use the connection's Secondary URL
