Archive Manager for Files 8.9 - HSM Guide

Introduction

Hierarchical Storage Manager (HSM) as a data storage system, is a complement of several archiving products. HSM can be installed in two ways:

·manually by the HSM installer

·automtically by the Archive Manager installation package. When installed by the Installation package as a part of the Archive Manager product installation, necessary configuration is performed by the Installation package itself as described in the Archive Manager Quick Start Guide.

This guide describes the manual HSM installation and configuration of HSM.

HSM allows storing of data (even all company data) on one or more file-servers. It is possible to use a shared store as well. HSM includes the Single Instance Store service (SIS), which ensures that identical content is stored only once. The SIS service activates version control, allowing the HSM system to keep track of any changes made to files or emails. With version control activated, the administrator may retrieve older versions. Even if the original file or email was deleted, it can be restored back.

The HSM Server (i.e. the computer where the HSM system is installed), as a complement of Archive Manager products, takes care of saving and securing archived documents. Archived data reside in store. HSM works with different store types depending on administrator’s choice.

When archived with Archive Manager, the desired file or email with its attachments is transferred to the HSM system. It is the HSM System that takes care of storing and retrieving files/emails. The HSM system works with a database because the information contained in the shortcut is stored either in an ORACLE or MS SQL database. The HSM system passes down the file/email to a store specified by the administrator and this file/email is compressed on the fly. Only shortcut of a few kilobytes remains at the file/email’s original location. This shortcut includes information about the new location of the archived file/email. The only difference a user notices is that the shortcut is displayed with a slightly modified icon.

Users may work with archived files/emails as usual which means: when an archived file/email is reopened, Archive Manager passes the information from the shortcut onto the HSM system. The HSM system restores the file/email from the store. For users it seems as if they are working in a normal environment.

The HSM system includes the Single Instance Store service (SIS), allows versioning in cooperation with Archive Manager products. Due to version control the HSM system keeps track of any changes made to a document, for example:

·who modified the document;

·when this modification occurred;

·what was modified within the document.

With version control activated, the administrator may retrieve older versions. Even files whose shortcuts were deleted can be retrieved as well.

Supported operating systems

·Windows Server 2016

·Windows Server 2019

·Windows Server 2022

Software Requirements

·.Net Framework 4.5 – if not available, Google Drive store will not be functional. If .NET Framework 4.5 is installed after HSM, it is necessary to run the HSM setup in “Repair” mode to activate the Google Drive store.

·IIS (32-bit support) – if not available, setup will continue but the HSM web client will not be installed.

·Microsoft WSE 3.0 – if not available, the iTernity store cannot be created.

·Database - ORACLE Database (version 19c or higher), MS SQL Server (version 2014 or higher) or Azure SQL Database

Database requirements

·If you are using an MS SQL Database, then installation of MDAC (Microsoft Data Access Components) is necessary, as it contains the required OLEDB Data Provider for MS SQL Server. The MS SQL Data Provider for .Net is also needed for accessing MS SQL (part of the .NET Framework installation). We recommend installing the latest version of MDAC (Currently we recommend installing MDAC 2.8.)

·If you are using an ORACLE Database, and it has not been installed on the HSM server, then an ORACLE Database Client must be installed on your HSM server and a Net8 connection from the HSM server to the ORACLE Database server must be established. The ORACLE OLEDB Data Provider (part of the MDAC installation) and the Oracle Data Provider for .Net (part of the .NET Framework installation) are required for connecting the ORACLE Database. If you prefer working with an ORACLE Database, make sure to have similar data (database, database user, password, owner of the schema) available during the installation of Archive Manager for Exchange.

Databases with the database user(s) (who, in addition, should be the owner of the database) have to be available before HSM installation.

Installation

In this topic:

·Steps to download the install media

·Worksheet for this installation

·Steps to install HSM


Steps to download the install media

1.Login to the server with the credentials of the superuser (eg. democorp\mamadmin)

2.From your browser, navigate to the https://www.quest.com/products/archive-manager-for-exchange page

or

navigate to the http://www.quest.com/trials page. Locate the product Archive Manager for Exchange.

3.Click the Download Free Trial button.

4.Fill the Download Your Free Trial registration form and click Download Trial. The file download page appears.

5.Download the install media zip file.

6.The the trial license key is specified in the email that is sent to you.

7.Ensure that the files are available locally on the computer on which you are planning to install the Archive Manager for Exchange features.


Worksheet for this installation

The following information will be required through the installation process. Sample values are provided here as a guidance.

Item

Description

Example

HSM server

The server where the HSM and Archive Manager Search will be installed.

AMXHSM

Superuser account

Windows account that is used to install the application and run the Archive Manager for Exchange services.

username: democorp\mamadmin

password: **************

Media folder

Full path of the folder where the media files are extracted

C:\Quest

Installation folder

Full path of the folder where the application files will be installed

C:\Program Files (x86)\Quest

HSM Store folder

Full path of the folder that will contain the archived files.

C:\HSM

The local hard drive folder is used as the default media store. Use of other media storage systems are described in the Media Store Administration Guide.

Store name

Name of the media store on a hard drive. With the Advanced Installation option of the installer wizard, only a local hard drive can be setup as a media store.

FILESTORE

Schema name

Name of a schema in a hard drive media store.

FILESCHEMA

Database Authentication method

Type of database authentication: Integrated Windows Authentication or SQL Authentication

Integrated Windows Authentication

UserLogin

Username if SQL Authentication is selected

dbadmin

Password

Database password if SQL Authentication is selected

**************

Database server

The database server instance name where the databases for Archive Manager for Files will be installed.

AMXDB


Steps to install the application

1.Log in to the server (eg. AMXHSM) with the credentials of the superuser (eg. democorp\mamadmin)

2.Download the installation media. For more information see Steps to download the install media.

3.Run the Quest Archive Manager Installation Package to extract the files to a local folder.

4.Close the integrated installer wizard which starts automatically.

5.Run the HSM setup from <Media folder>\Archive Manager Installation Package\HSM\HSM Setup.exe

6.A prerequisite check occurs and missing requirements if any are displayed. Click Install to ensure all missing requirements are installed.

7.The Welcome window of the HSM installer opens.

hsm-010

8.Click Next. The Logon Information window opens.

hsm-020

Enter the information as described below:

a.Username - logon name of the superuser (for example, democorp\mamadmin)

b.Password - logon password of the superuser

c.Confirm password - same as the Password.

9.Click Next. The Firewall Settings window opens.

hsm-030

Select Allow programs to communicate through Windows Firewall.

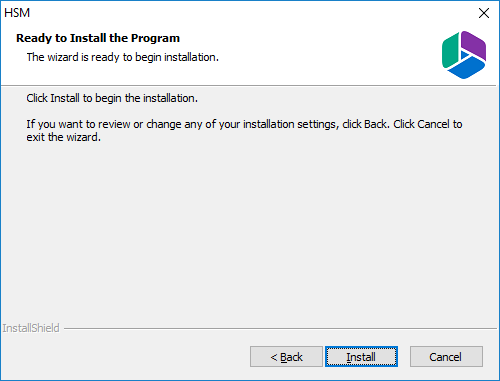

10.Click Next. The Ready to install the Program window opens.

hsm-040

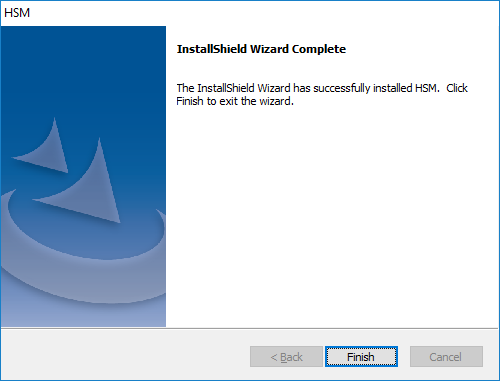

11.Click Install. The installation starts and the progress is displayed on the Setup Status window. When the installation completes, the InstallShield Wizard Complete window opens.

hsm-050

12.Click Finish to close the installer.



Configuration

In this chapter:

·Database

·Stores

Database

In this topic:

·Steps to configure the HSM database

·Steps to install the HSM database


Steps to configure the HSM database

1.When the installation completes, the Configuration wizard opens. If it does not open automatically, click Start > Quest > Archive Manager Configuration.

2.From the feature panel on the left, click HSM and select the Database tab.

3.Click Configure. The Database Connection Wizard opens.

hsm-060

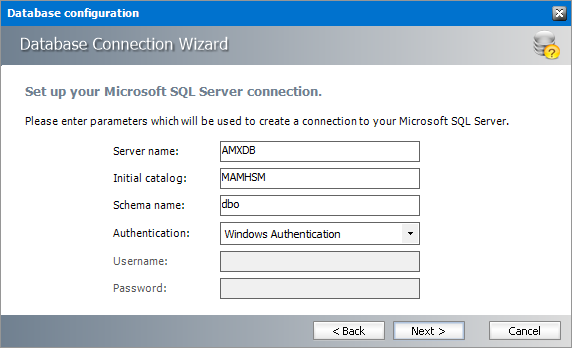

4.Select either Microsoft SQL Server or Oracle and click Next. If you choose Microsost SQL Server, the Database Connection window opens for the Microsoft SQL Server connection information.

hsm-061

For Microsoft SQL Server

a.Server name - name of the SQL server (eg. AMXDB)

b.Initial catalog - name of the HSM database (e.g. MAMHSM which is the default name of the HSM database)

c.Schema name - name of the SQL Schema (e.g. dbo)

d.Authentication – authentication type used for the database. Choose either Windows authentication or SQL Server authentication

e.Username - database login username if SQL Server authentication is the selected as the authentication mode.

f.Password - password of the database user if SQL Server authentication is the selected as the authentication mode.

For Oracle

a.Oracle net name - net service name that describes the network address of the database server in your tnsnames.ora file.

b.Schema - name of the Oracle schema from your tnsnames.ora file.

c.Username - database login username.

d.Password -  password of the database user.

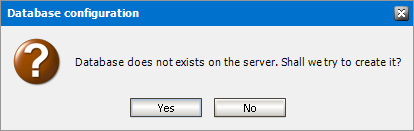

5.Click Next and then click Yes on the confirmation dialog that opens.

hsm-070

6.If the database connection is setup successfully, the configuration completion window opens.

hsm-080

7.Click Finish to close the Database Connection wizard.


Steps to install the HSM database

1.From the feature panel on the left in the Configuration tool, click HSM and then select the Database tab.

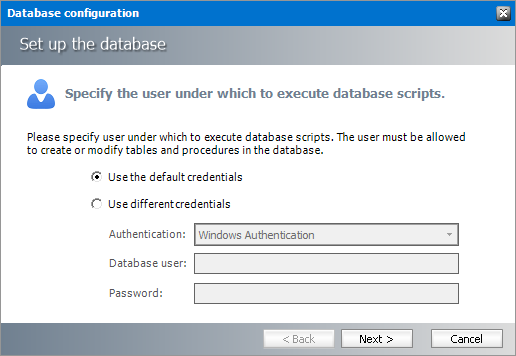

2.Verify that the database connection information is as expected. Then click Run Scripts. The script installer wizard opens.

hsm-090

3.Select Use the default credentials to use the information displayed in the Database connections section. If you select Use different credentials, enter the following information:

a.Authentication - authentication type used for the database. Choose either Windows authentication or SQL Server authentication

a.Database user - database login username if SQL Server authentication is the selected as the authentication mode.

b.Password - password of the database user if SQL Server authentication is the selected as the authentication mode.

4.Click Next.

hsm-100

In the Select the method for setting up the database step, choose one of the following options:

a.Run the database scripts by this wizard - the installer will automatically run the scripts to create the tables and procedures required for the database.

b.Get the database scripts and run them manually - you get the option to either save the scripts or copy it to clipboard and paste it elsewhere.

5.Click Next. Depending on your selection, one of the following windows open:

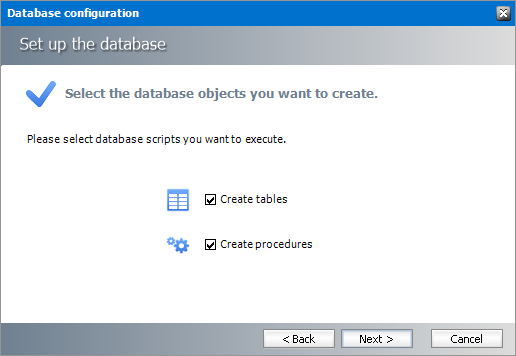

For Run the database scripts by this wizard

hsm-110

Select both check boxes: Create tables and Create procedures.

For Get the database scripts and run them manually

hsm-120

You must run both the scripts for a successful database installation.

6.Click Next. Depending on your selection in step 4, one of the following windows open

a.If you chose Run the database scripts by this wizard, and the installation is successful, a confirmation dialog opens. Click OK to close the dialog.

b.If you chose Get the database scripts and run them manually, you must run the scripts immediately because a confirmation dialog will verify whether you ran the scripts.

hsm-130

Select both check boxes after you run scripts and click OK.

7.If the installation is successful, the confirmation dialog opens. Click OK to close the dialog. The database setup completion window opens.

hsm-140

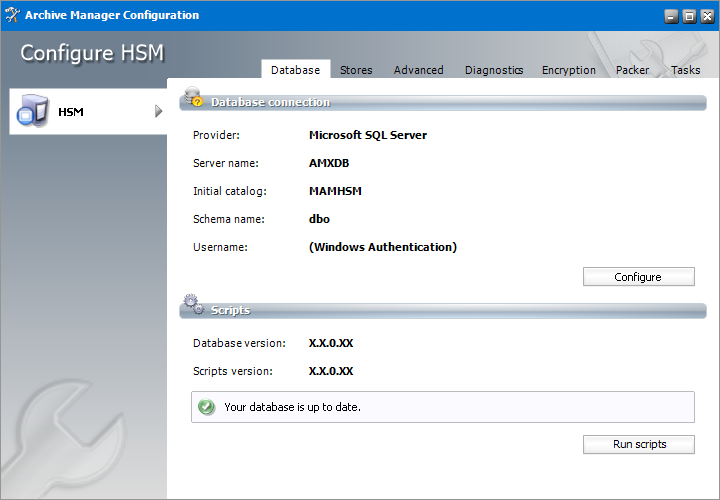

8.Click Finish to close the script installer. The Scripts section of the Configuration tool displays the status and version of the scripts(the version of the scripts you install may differ from the version shown in the image below).

hsm-150

9.Keep the Configuration tool open for next steps.
