SQL Optimizer for DB2 LUW 4.4.1 - User Guide

SQL Optimizer for IBM® DB2® LUW
UsageStatistics Getting Started Options SQL Scanner SQL Optimizer SQL Formatter SQL Inspector Database Explorer SQL Repository Index Impact Analyzer Index Usage Analyzer User-Defined Temp Table Editor Functions SQL Functions SQL Information and Functions Activity Log
Tutorials About us Copyright

Selected SQL

ClosedView the Batch Run Criteria Window—Selected SQL/Index Set

The Selected SQL/Index Set tab of the Batch Run Criteria window is used to select the SQL and index-set alternatives you want to execute. By default, all alternatives are initially selected.

Tip: To save all settings on the Batch Run Criteria dialog for subsequent batch runs, select Save setting for the next batch run.

Selecting SQL statements to test

To select or deselect an alternative

Double-click an SQL or index-set alternative.

To select or deselect all alternatives

Right-click and select Select All or Unselect All.

To select alternatives according to the cost values

  1. Select the Apply SQL/Index Sets selection filter checkbox.

  2. Click SQL/Index Sets selection filter image\B_SQLSelectionFilter.gif.

  3. Review the DB2 LUW cost retrieved from the virtual plans.

  4. Check the Exclude SQL/Index Set with DB2 LUW cost greater than checkbox and enter a DB2 LUW cost.

Note: The original SQL statement can be de-selected only if the Original SQL option is not selected in the SQL Termination tab of the Batch Run Criteria window and the Always run Original SQL first option is not selected.

Changing the execution order of alternatives

The alternatives are ranked by DB2 LUW Cost by default, with the exception of the original SQL, which is placed at the top.

To change the execution order using the DB2 LUW cost

Click either the DB2 LUW or the SQL/Index Set column heading to reorder the alternatives for execution.

Note: High DB2 LUW Cost does not necessarily mean slower performance. If possible, it is recommended that all alternatives be tested.

To change the execution order for individual alternatives

Select the SQL or index-alternative; then click Move Up image\B_MoveUp.gif or Move Down image\B_MoveDown.gif.

Always run Original SQL first

The original SQL statement can always be run first even if it does not have the lowest DB2 LUW cost.

To always run the original SQL statement first

Select the Always run Original SQL first checkbox.

This checkbox is disabled if Original SQL is selected as a termination criterion on the SQL Termination tab or the Batch Termination tab since the run time from the original SQL is going to be used to terminate the alternatives or to terminate the Batch Run itself. In this case, you must run the original SQL statement first to obtain the termination time.



SQL Termination

ClosedView the Batch Run Criteria Window—SQL Termination

The SQL Termination tab of the Batch Run Criteria window is used to set the SQL termination criteria for each SQL and index-set alternative for which you are retrieving run times. If the current run time for a particular alternative exceeds the termination time, then the execution of the alternative terminates automatically. This will save time during testing.

Tip: To save all settings on the Batch Run Criteria dialog for subsequent batch runs, select Save setting for the next batch run.

Terminate test run if the elapsed time is greater than that of

Option

Description

Original SQL

Retrieves the run time of alternatives that run faster than the original SQL statement. It terminates all alternatives that run longer than the run time from the original SQL. If you choose this option, the original SQL statement is automatically selected on the Selected SQL/Index Set tab. During the Batch Run, you cannot terminate the original SQL because its run time is needed to determine when to terminate the alternatives.

Best run time SQL/Index Set

Retrieves the run time of alternatives that run faster than the current best run time. With this option, the first alternative is run and the time from that statement is used as the termination time. When an alternative runs faster than this time, the faster time is used as the new termination time. So you are always using the current fastest run time as the termination time for the next alternative.

Note: The first alternative is either the original SQL or the alternative with the lowest DB2 LUW Cost. This depends on whether the Always run Original SQL first option is checked on the Selected SQL/Index Set tab.

User-defined time

Retrieves the run time of alternatives that are less than the defined time. If your original SQL statement takes a long time to execute and there are many alternatives, executing all alternatives can take considerable time. In that event, consider setting an aggressive user-defined termination time. If the original SQL takes 1 hour, try a 5-minute termination time. If no alternative executes under that period, raise the termination time to 10 minutes, etc.

Combining Criteria

You can also combine User-defined time with Original SQL or Best run time SQL/Index Set by clicking the Or user-defined time checkbox next to each one.

Percentage Delay

The percentage-delay calculation adds additional time to the termination time. It is used to account for the time it takes an alternative to travel from the local computer to the database server over the network.

Option

Description

Percentage delay (%)

The value entered into this box is used as a percentage to calculate the additional time that is added to the termination time. For example, if the termination time is 10 minutes and the percentage delay is 5%, then all alternatives executed are terminated if the run time exceeds 10.5 minutes. (10+ (10 * 5%))

Minimum delay time (secs)

(Default = 5, Range 1 – 99)

This is minimum number of seconds that is added to the termination time. It is necessary to factor into the overall termination time the time needed for the alternative be sent to the database server from the local computer before it starts to run. This number is only used if the percentage-delay calculation is lower than this value.

Maximum delay time (mins)

(Default = 60, Range 1 – 9999)

This is the maximum number of minutes that can be added to the termination time. This number is only used if the percentage-delay calculation is higher than this value.

Run without Termination

Option

Description

Run without termination

Executes all the alternatives until they are completed.



Batch Termination

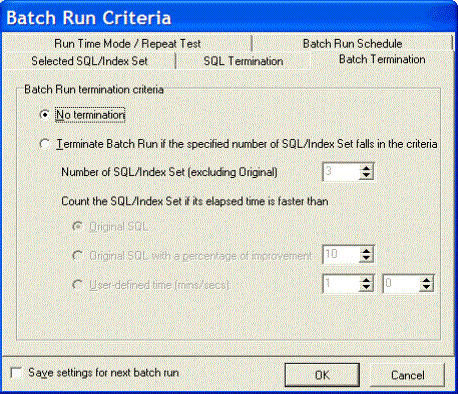

ClosedView the Batch Run Criteria Window—Batch Termination

The Batch Termination page of the Batch Run Criteria window is used to determine if and when to terminate the Batch Run. It enables you to find SQL and index-set alternatives that give you performance improvement without having to execute every alternative.

Tip: To save all settings on the Batch Run Criteria dialog for subsequent batch runs, select Save setting for the next batch run.

Batch Run Termination Criteria

Option

Description

No termination

Specify to run the Batch Run to completion.

Terminate Batch Run if the specified number of SQL/Index Sets falls in the criteria

Specify to terminate the Batch Run when a specified number of alternatives are found that meet the following requirements for terminating the Batch Run.

Number of SQL/Index Sets (excluding the Original)

Specify how many alternatives must be found that show performance improvement over the original SQL before the Batch Run will be terminated.

Count the SQL/Index Sets if its elapsed time is faster than

Specify one of the following criteria to determine how the performance improvement is determined.

Original SQL

Count all alternatives that run faster than the elapsed run time from the original SQL.

Original SQL with a percentage of improvement

Count all alternatives where the elapsed run time for the alternative is the specified percentage faster than time for the original SQL statement.

User-defined time (mins/secs)

Count alternatives that run faster than a specified number of minutes and/or seconds.



Run Time Mode/ Repeat Test

ClosedView the Batch Run Criteria Window—Run Time Mode/Repeat Test

The Run Time Mode/Repeat Test tab of the Batch Run Criteria window is divided into two sections.

Tip: To save all settings on the Batch Run Criteria dialog for subsequent batch runs, select Save setting for the next batch run.

Run Time Mode

Run Time Mode

Description

All Records

Specify to retrieve the run time for processing all records.

First n Record(s)

Specify to retrieve the run time for processing n records where you specify the number of records retrieved.

Repeat the test run by executing

Repeat the test run by executing

Description

Run all SQL twice if original SQL runs faster than (Seconds) This option executes the SQL and index-set alternatives twice if the run time for the original SQL is greater than the value you enter in the associated field.

First one twice using the second run time and others once

This option is suitable for SQL and index-set alternatives with normal run times. The first time you access data from table, the data is cached into memory. This process takes few moments. The next time you access that data, it is already in memory so the following alternatives will run faster. So to have a comparable test, the first SQL is run twice and the time from the second run is compared to the time from the other alternatives.

All twice using the second run time

This option is suitable for SQL and index-set alternatives that are often executed and have short running time. A significant portion of the running time of this kind of SQL is affected by the caching of index and the parsing time. To eliminate these factors, you can run all alternatives twice to use only the second run for a more comparable result.

All once

This option is suitable for long-running SQL and index-set alternatives, as it is unlikely that all the entire SQL statement is still kept in memory. There is no need to run any alternative twice since the caching of the table and the parsing time are not significant to the overall running time.
