Assigning Credentials

When configuring an agent to monitor a storage device, you need to assign a credential. Here are some typical scenarios:

This section contains procedures that describe how to create or select a credential. It also contains information about releasing Agent Manager lockboxes.

Creating and assigning new credentials

1
In the Credential Assignment Wizard, click New Credential - Create and Assign.
If the Account Name and Password boxes are displayed, provide user credentials for the target application and/or the target server hosting the management application.
If the SNMP Community String box is displayed, type the SNMP community name assigned to the storage array group that you want to access.
6
Click Submit.
7
For Hitachi Data Systems AMS, USP, and VSP devices, click Next to continue with Configuring the Hitachi Tuning Manager. For all other device types, click Finish to return to the Storage Device Setup dialog.

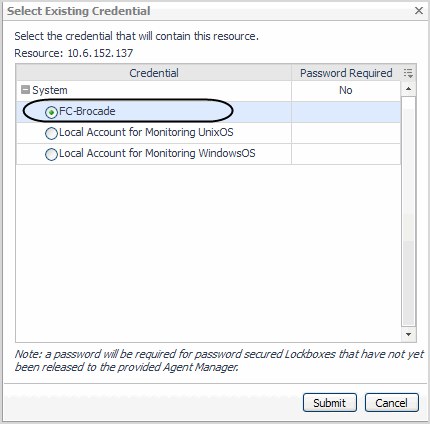

Selecting and assigning an existing credential

1
In the Credential Assignment Wizard, click Existing Credential - Select and Assign.
3
Click Submit.
5
For Hitachi Data Systems AMS, USP, and VSP devices, click Next to continue with Configuring the Hitachi Tuning Manager. For all other device types, click Finish to return to the Storage Device Setup dialog.

About releasing the Agent Manager lockbox

An Agent Manager lockbox needs to be released the first time an agent is deployed to the Agent Manager host. This releases the lockbox to the client Agent Manager Host, making all the credentials in the lockbox available to the agents on that host. You can release the lockbox from the Storage Device Setup wizard, the Edit Agent Properties dialog box, or from the Credentials dashboard.
