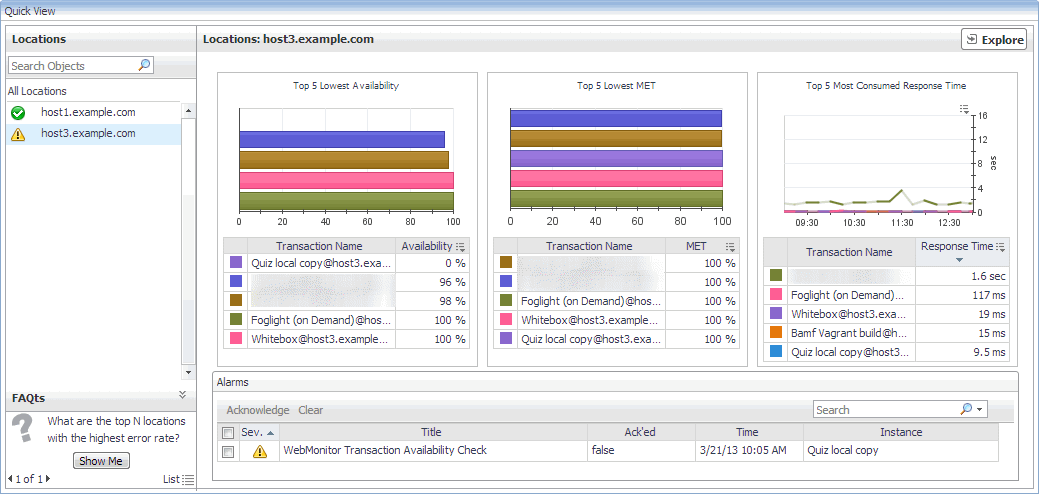

Quick View

The Quick View is a container view. It contains a combination of location or transaction views, depending on your selection in the Web Monitor Environment view and the pane on the left. Use it to understand the level of user experience offered by the monitored Web sites, and to investigate any issues that they may be experiencing.

This view appears in the Performance Browser, just below the Web Monitor Environment view.

This view contains a combination of some of the following views, depending on your previous selections:

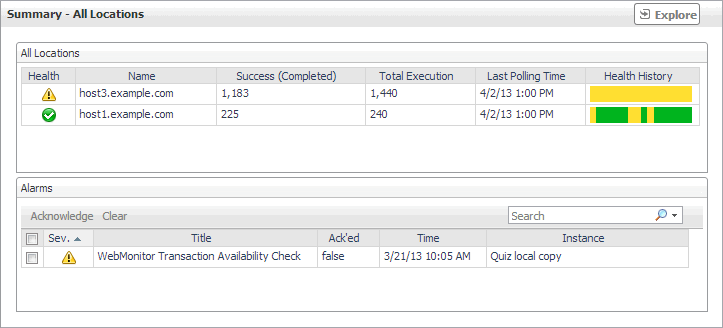

Summary - All Locations view

The Summary - All Locations view displays a list of existing locations, and shows any alarms generated against them.

2
On the Monitor tab, in the Web Monitor Environment view, select the Locations tile.
3
In the Quick View, in the embedded Locations view, click All Locations.
The Summary - All Locations view appears on the right.

This view is made up of the following embedded views:

Table 10. Alarms view

Lists the alarms generated against the monitored locations.

NOTE: To acknowledge or clear one or more alarms appearing in this table, select them and click Acknowledge or Clear, as required. For more information about alarms in Foglight, see the Foglight User Guide.
Ack’ed. Indicates if the alarm is acknowledged: true or false.
Instance. The name of the transaction against which the alarm is generated.
Severity. Indicates the alarm severity: Warning , Critical , or Fatal .
Time. The time at which the alarm is generated.
Title. The name of the rule that generated the alarm.

Drill down on:

Any row in this table. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.

Shows a list of all hosts from which Web Monitor Agent instances are running and the related statistics.

Health. The highest severity alarms generated against this Web site: Normal , Warning , Critical , or Fatal .
Name. The name of the host on which the Web Monitor Agent instance is running.
Success (Completed). The number of successful executions the Web Monitor Agent performed since it started collecting data.
Total Execution. The number of execution attempts the Web Monitor Agent performed during the selected time range.
Last Polling Time. The most recent date and time the Web Monitor Agent made an attempt to collect data.
Health History (Rolled Up). A color-coded bar, representing the alarm state of the Web Monitor Agent running on this host over the selected time range. The color of the bar changes depending on the alarm state. Red indicates a Fatal state, orange indicates Critical, yellow means Warning, and green is the Normal State.

Drill down on:

Table 10. Alarms view

The Summary - All Locations view displays a list of existing locations, and shows any alarms generated against them.

2
On the Monitor tab, in the Web Monitor Environment view, select the Locations tile.
3
In the Quick View, in the embedded Locations view, click All Locations.
The Summary - All Locations view appears on the right.

This view is made up of the following embedded views:

Table 10. Alarms view

Lists the alarms generated against the monitored locations.

NOTE: To acknowledge or clear one or more alarms appearing in this table, select them and click Acknowledge or Clear, as required. For more information about alarms in Foglight, see the Foglight User Guide.
Ack’ed. Indicates if the alarm is acknowledged: true or false.
Instance. The name of the transaction against which the alarm is generated.
Severity. Indicates the alarm severity: Warning , Critical , or Fatal .
Time. The time at which the alarm is generated.
Title. The name of the rule that generated the alarm.

Drill down on:

Any row in this table. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.

Shows a list of all hosts from which Web Monitor Agent instances are running and the related statistics.

Health. The highest severity alarms generated against this Web site: Normal , Warning , Critical , or Fatal .
Name. The name of the host on which the Web Monitor Agent instance is running.
Success (Completed). The number of successful executions the Web Monitor Agent performed since it started collecting data.
Total Execution. The number of execution attempts the Web Monitor Agent performed during the selected time range.
Last Polling Time. The most recent date and time the Web Monitor Agent made an attempt to collect data.
Health History (Rolled Up). A color-coded bar, representing the alarm state of the Web Monitor Agent running on this host over the selected time range. The color of the bar changes depending on the alarm state. Red indicates a Fatal state, orange indicates Critical, yellow means Warning, and green is the Normal State.

Drill down on:

Table 11. All Locations view

The Summary - All Locations view displays a list of existing locations, and shows any alarms generated against them.

2
On the Monitor tab, in the Web Monitor Environment view, select the Locations tile.
3
In the Quick View, in the embedded Locations view, click All Locations.
The Summary - All Locations view appears on the right.

This view is made up of the following embedded views:

Table 10. Alarms view

Lists the alarms generated against the monitored locations.

NOTE: To acknowledge or clear one or more alarms appearing in this table, select them and click Acknowledge or Clear, as required. For more information about alarms in Foglight, see the Foglight User Guide.
Ack’ed. Indicates if the alarm is acknowledged: true or false.
Instance. The name of the transaction against which the alarm is generated.
Severity. Indicates the alarm severity: Warning , Critical , or Fatal .
Time. The time at which the alarm is generated.
Title. The name of the rule that generated the alarm.

Drill down on:

Any row in this table. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.

Shows a list of all hosts from which Web Monitor Agent instances are running and the related statistics.

Health. The highest severity alarms generated against this Web site: Normal , Warning , Critical , or Fatal .
Name. The name of the host on which the Web Monitor Agent instance is running.
Success (Completed). The number of successful executions the Web Monitor Agent performed since it started collecting data.
Total Execution. The number of execution attempts the Web Monitor Agent performed during the selected time range.
Last Polling Time. The most recent date and time the Web Monitor Agent made an attempt to collect data.
Health History (Rolled Up). A color-coded bar, representing the alarm state of the Web Monitor Agent running on this host over the selected time range. The color of the bar changes depending on the alarm state. Red indicates a Fatal state, orange indicates Critical, yellow means Warning, and green is the Normal State.

Drill down on:
